Strip light source, 50 series
  • Strip light source, 50 series

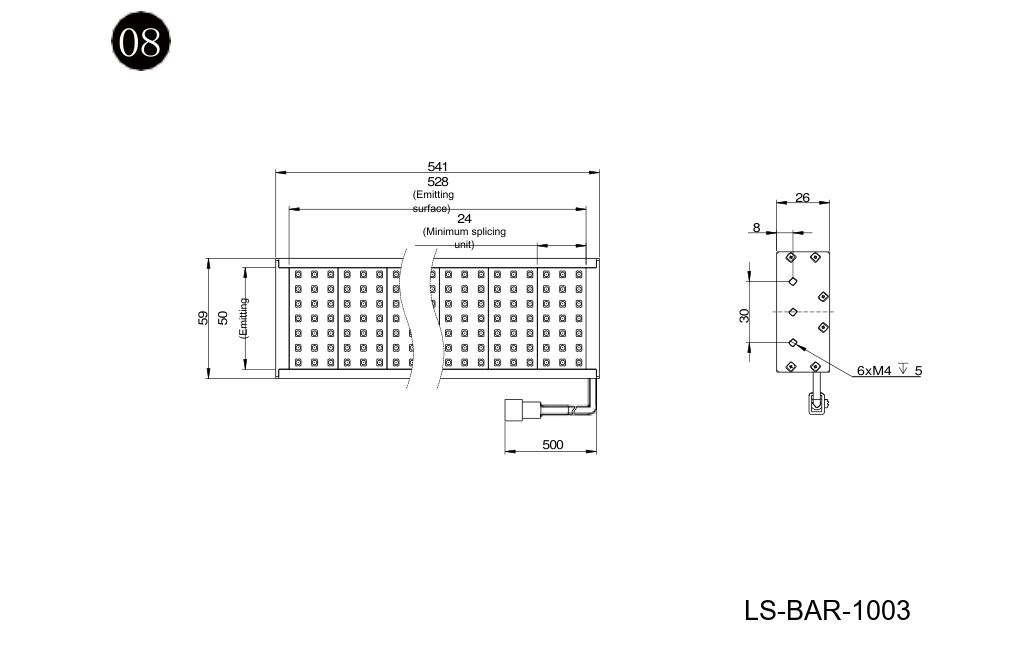

  • LS-BAR-1003 dimensions (mm)

Representative photo of this series

Bar lights

541 x 50 mm strip light source, LS-BAR-S93 series (LS-BAR-1003)

Model LS-BAR-1003

  • ColourRed, Green, Blue, White, Infrared, UV
  • Emitting area50 mm
  • Voltage24 V DC (12 V on request)
  • TypeStrip / combination
$579.00

In stock - ships the same business day (4 available, order by 2 PM ET)

1.15 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

541 x 50 mm strip light source, LS-BAR-S93 series (LS-BAR-1003)LS-BAR-1003

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Strip light with surface-mount LEDs and special optical lenses that concentrate the divergence angle; first choice for large-area lighting with high cost performance. Built from 24 mm splicing units; size can be customized.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-1003
Number of lamp rows8
Minimum splicing unit (mm)24

Interfaces and I/O

Cable length (mm)500

Light

Emitting surface width (mm)50
Emitting surface length (mm)528

Electrical

Voltage24 V DC (12 V on request)
Power red (W)24
Power white/blue/green (W)28

Mechanical

Width (mm)59
Height (mm)26
Mounting6 x M4, depth 5
Overall length (mm)541
Overall width (mm)59
Overall height (mm)26
Shipping weight1.15 kg

Other models in the Strip light source, LS-BAR-S93 series series

See all 12 models
ModelSize / key dataPriceAvailabilityLink
LS-BAR-0996 109 x 50 mm $229.00 19 in stock View
LS-BAR-0997 133 x 50 mm $259.00 19 in stock View
LS-BAR-0998 157 x 50 mm $259.00 21 in stock View
LS-BAR-0999 205 x 50 mm $319.00 20 in stock View
LS-BAR-1002 493 x 50 mm $569.00 23 in stock View
LS-BAR-1000 433 x 50 mm $579.00 24 in stock View
LS-BAR-1001 445 x 50 mm $579.00 19 in stock View
LS-BAR-1004 613 x 50 mm $629.00 18 in stock View
LS-BAR-1005 733 x 50 mm $729.00 24 in stock View
LS-BAR-1006 805 x 50 mm $939.00 17 in stock View
LS-BAR-1007 877 x 50 mm $1,139.00 23 in stock View
