Strip light source, 50 series
  • Strip light source, 50 series

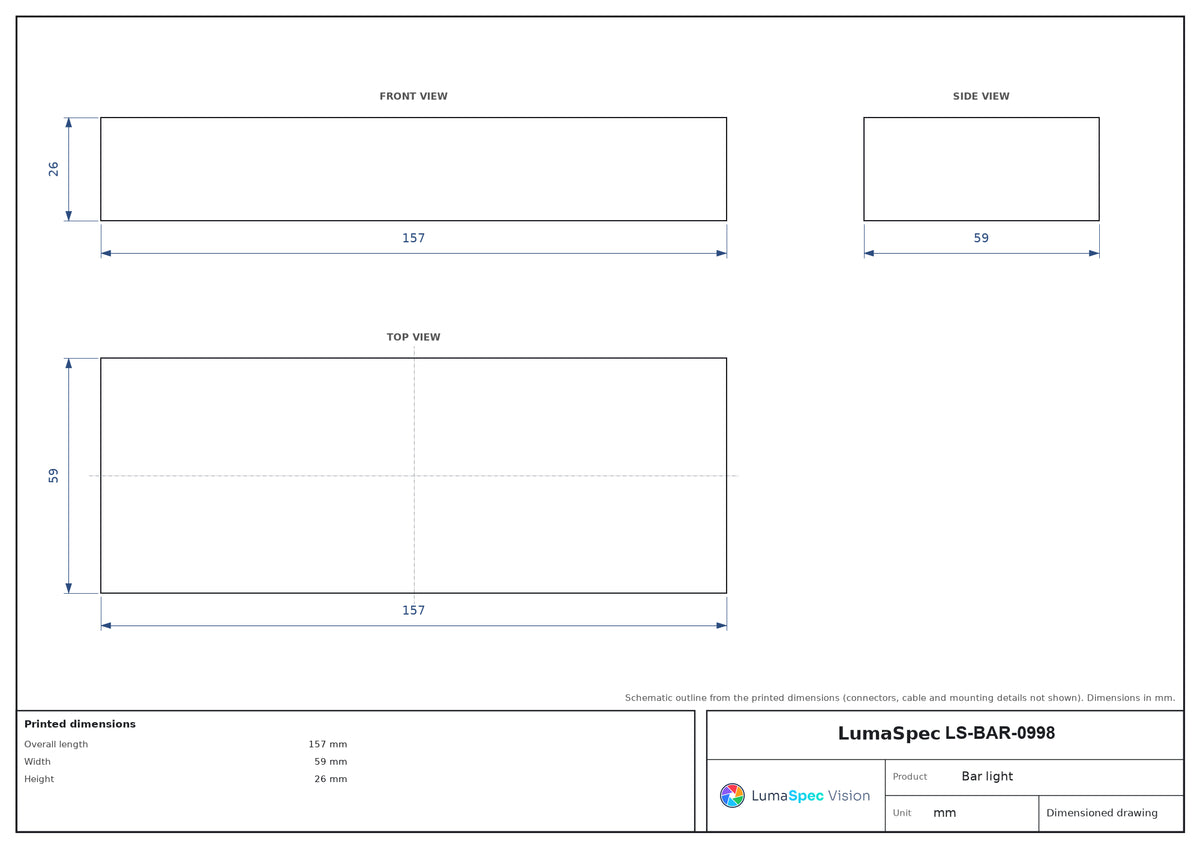

  • LS-BAR-0998 dimensions (mm)

Representative photo of this series

Bar lights

157 x 50 mm strip light source, LS-BAR-S93 series (LS-BAR-0998)

Model LS-BAR-0998

  • ColourRed, Green, Blue, White, Infrared, UV
  • Emitting area50 mm
  • Voltage24 V DC (12 V on request)
  • TypeStrip / combination
$259.00

Ships in 2-3 weeks

0.5 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

157 x 50 mm strip light source, LS-BAR-S93 series (LS-BAR-0998)LS-BAR-0998

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Strip light with surface-mount LEDs and special optical lenses that concentrate the divergence angle; first choice for large-area lighting with high cost performance. Built from 24 mm splicing units; size can be customized.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-0998
Number of lamp rows8
Minimum splicing unit (mm)24

Interfaces and I/O

Cable length (mm)500

Light

Emitting surface width (mm)50

Electrical

Voltage24 V DC (12 V on request)
Power red (W)4.15
Power white/blue/green (W)5.184

Mechanical

Width (mm)59
Height (mm)26
Mounting6 x M4, depth 5
Overall length (mm)157
Overall width (mm)59
Overall height (mm)26
Shipping weight0.50 kg
