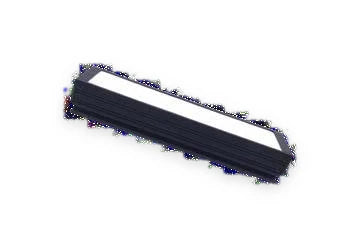

Representative photo of this series

Bar lights

176.4 mm strip light source, LS-BAR-S92 series (LS-BAR-0972)

Model LS-BAR-0972

ColourRed, Green, Blue, White, Infrared, UV
Emitting area35.2 mm
Voltage24 V DC (12 V on request)
TypeStrip / combination

$279.00

Ships in 2-3 weeks

0.4 kg shipping weight

Color Red Green Blue White Infrared UV

Volume pricing, Net 30 terms or a formal quote for purchasing?

Strip light with surface-mount LEDs and special optical lenses that concentrate the divergence angle; first choice for large-area lighting with high cost performance. Built from 25.2 mm splicing units; size can be customized.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BAR-0972
Number of lamp rows	8
Minimum splicing unit (mm)	25.2

Interfaces and I/O

Cable length (mm)	500

Light

Emitting surface width (mm)	35.2
Emitting surface length (mm)	176.4

Electrical

Voltage	24 V DC (12 V on request)
Power red (W)	9.68
Power white/blue/green (W)	12.1

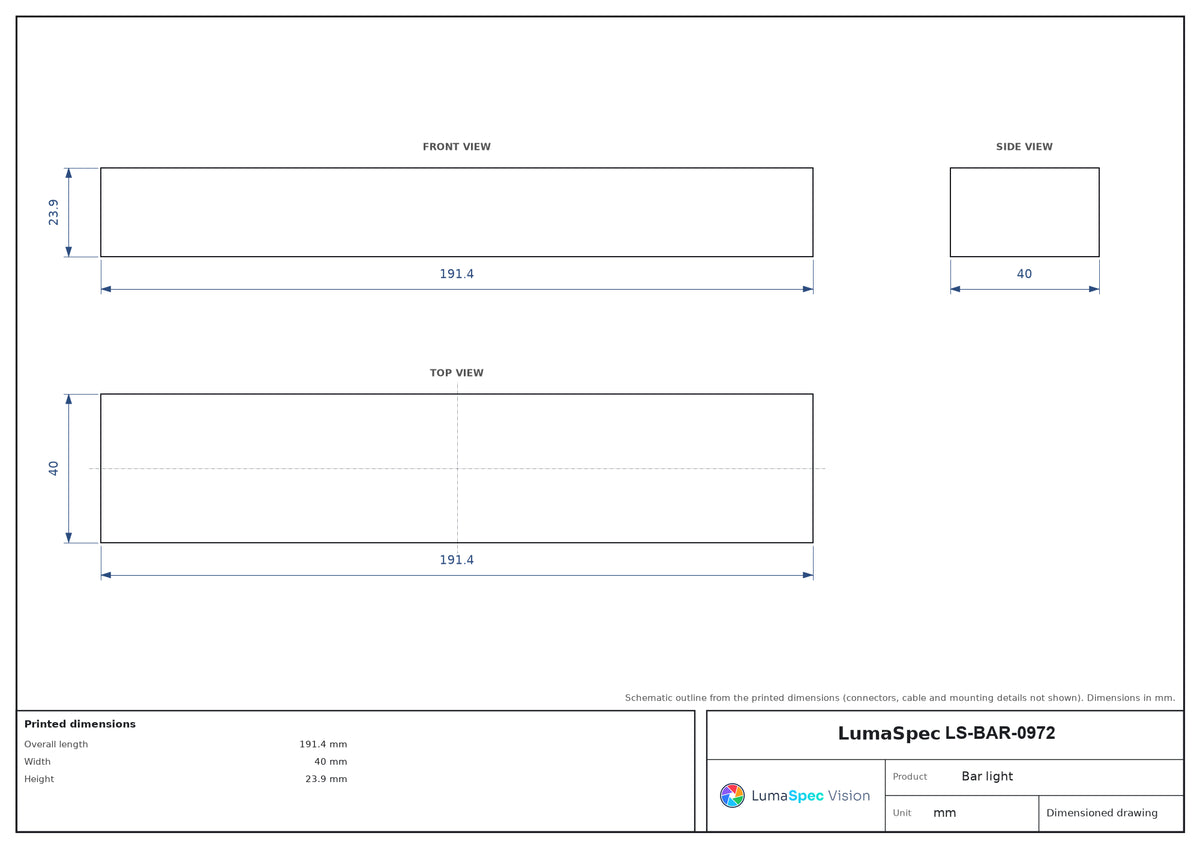

Mechanical

Width (mm)	40
Height (mm)	23.9
Mounting	2 x M3, depth 4; M3 nut placement groove
Overall length (mm)	191.4
Overall width (mm)	40
Overall height (mm)	23.9
Shipping weight	0.40 kg

Downloads

Datasheet (PDF)LS-BAR-0972 · 436 KB

Features

First choice for large-area lighting, high cost performance
Surface-mount LEDs and special optical lenses, concentrated light divergence angle, high light efficiency, stable mass production
Minimum splicing unit 25.2 mm
Size can be customized according to different needs

Applications

Metal surface inspection
PCB substrate inspection, electronic component inspection, appearance defect inspection
Printed material character recognition, mobile phone case positioning, PCB component presence/absence detection
Character recognition
Detection of holes on electronic cigarette shells
