Representative photo of this series

Bar lights

75.6 mm strip light source, LS-BAR-S92 series (LS-BAR-0967)

Model LS-BAR-0967

ColourRed, Green, Blue, White, Infrared, UV
Emitting area35.2 mm
Voltage24 V DC (12 V on request)
TypeStrip / combination

$189.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.3 kg shipping weight

Color Red Green Blue White Infrared UV

Volume pricing, Net 30 terms or a formal quote for purchasing?

Strip light with surface-mount LEDs and special optical lenses that concentrate the divergence angle; first choice for large-area lighting with high cost performance. Built from 25.2 mm splicing units; size can be customized.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BAR-0967
Number of lamp rows	8
Minimum splicing unit (mm)	25.2

Interfaces and I/O

Cable length (mm)	500

Light

Emitting surface width (mm)	35.2
Emitting surface length (mm)	75.6

Electrical

Voltage	24 V DC (12 V on request)
Power red (W)	4.14
Power white/blue/green (W)	5.18

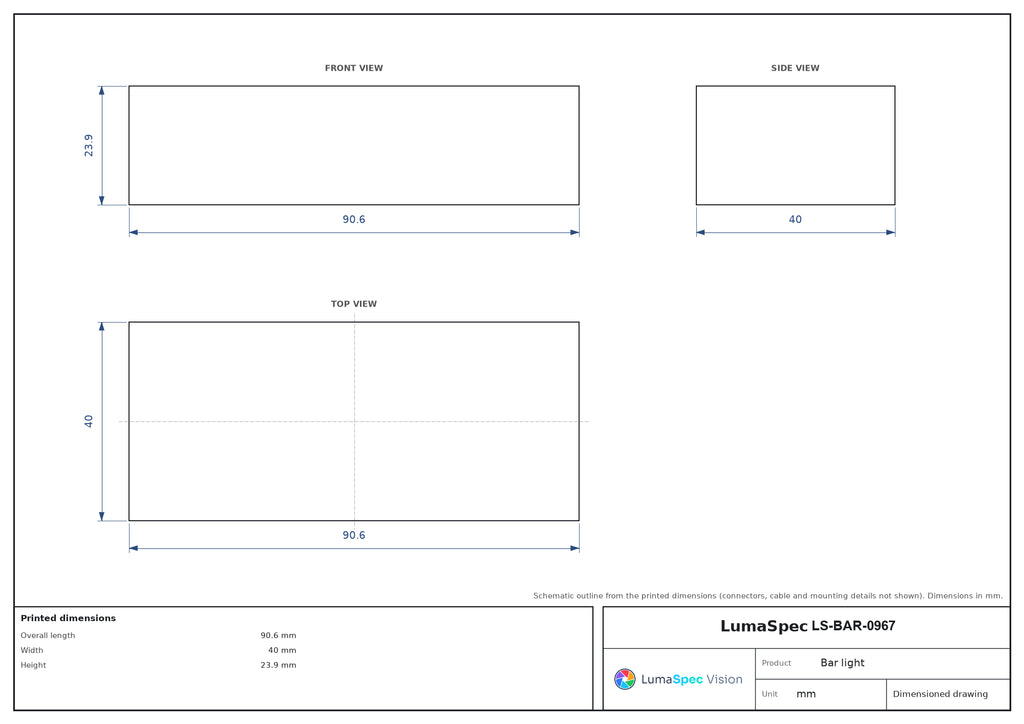

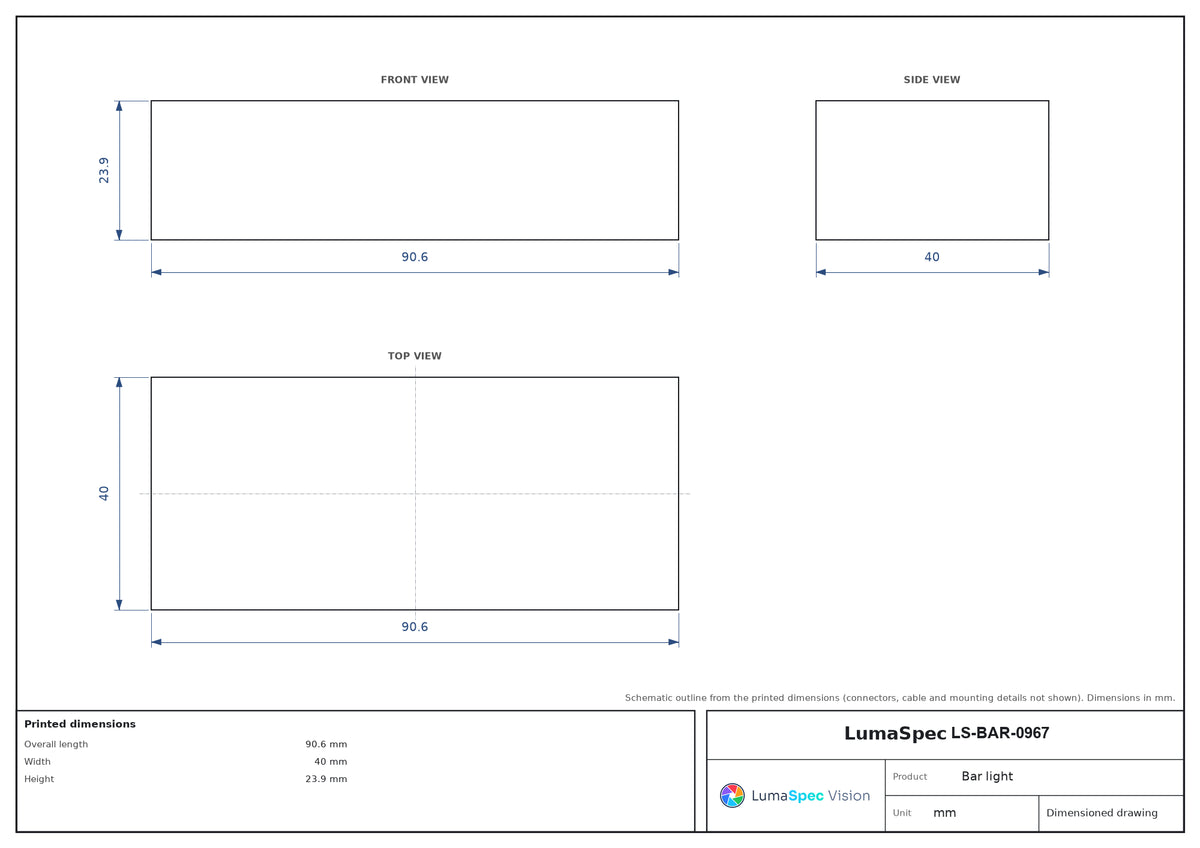

Mechanical

Width (mm)	40
Height (mm)	23.9
Mounting	2 x M3, depth 4; M3 nut placement groove
Overall length (mm)	90.6
Overall width (mm)	40
Overall height (mm)	23.9
Shipping weight	0.30 kg

Downloads

Datasheet (PDF)LS-BAR-0967 · 436 KB

Features

First choice for large-area lighting, high cost performance
Surface-mount LEDs and special optical lenses, concentrated light divergence angle, high light efficiency, stable mass production
Minimum splicing unit 25.2 mm
Size can be customized according to different needs

Applications

Metal surface inspection
PCB substrate inspection, electronic component inspection, appearance defect inspection
Printed material character recognition, mobile phone case positioning, PCB component presence/absence detection
Character recognition
Detection of holes on electronic cigarette shells

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the Strip light source, LS-BAR-S92 series series

See all 32 models

Model	Size / key data	Price	Availability	Link
LS-BAR-0964	25.2 mm	$89.00	22 in stock	View
LS-BAR-0965	50.4 mm	$159.00	23 in stock	View
LS-BAR-0966	60 mm	$169.00	22 in stock	View
LS-BAR-0968	92.4 mm	$209.00	19 in stock	View
LS-BAR-0969	100.8 mm	$219.00	18 in stock	View
LS-BAR-0970	126 mm	$249.00	19 in stock	View
LS-BAR-0971	151.2 mm	$259.00	20 in stock	View
LS-BAR-0972	176.4 mm	$279.00	18 in stock	View
LS-BAR-0975	252 mm	$299.00	18 in stock	View
LS-BAR-0973	201.6 mm	$309.00	23 in stock	View
LS-BAR-0976	277.2 mm	$309.00	19 in stock	View
LS-BAR-0977	302.4 mm	$329.00	16 in stock	View
LS-BAR-0978	327.6 mm	$349.00	17 in stock	View
LS-BAR-0974	226.8 mm	$359.00	27 in stock	View
LS-BAR-0979	352.8 mm	$369.00	22 in stock	View
LS-BAR-0980	378 mm	$399.00	24 in stock	View
LS-BAR-0981	403.2 mm	$519.00	22 in stock	View
LS-BAR-0984	478.8 mm	$519.00	23 in stock	View
LS-BAR-0982	428.4 mm	$569.00	25 in stock	View
LS-BAR-0985	504 mm	$569.00	21 in stock	View
LS-BAR-0983	453.6 mm	$579.00	18 in stock	View
LS-BAR-0986	529.2 mm	$579.00	17 in stock	View
LS-BAR-0987	554.4 mm	$579.00	21 in stock	View
LS-BAR-0988	579.6 mm	$579.00	20 in stock	View
