Strip light, LS-BAR-S90 series
  • Strip light, LS-BAR-S90 series

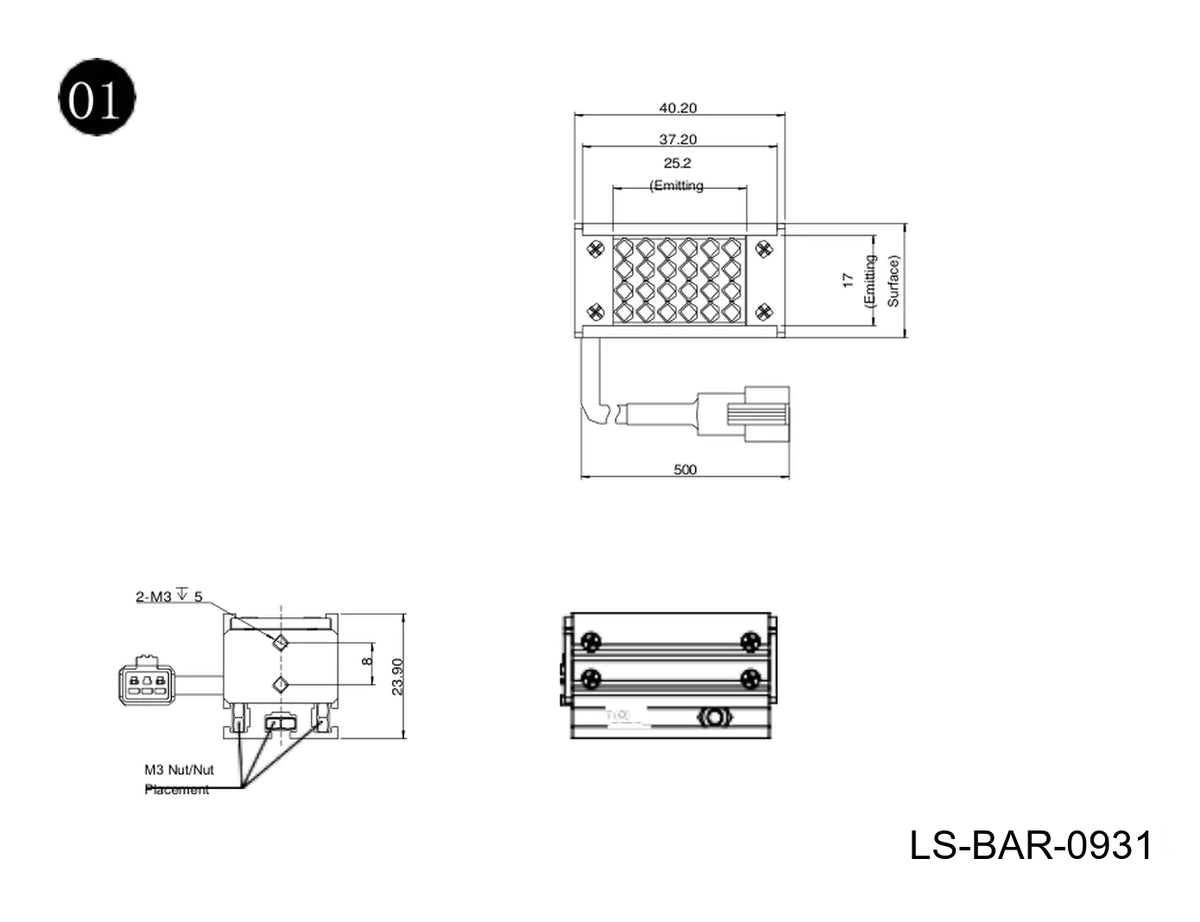

  • LS-BAR-0931 dimensions (mm)

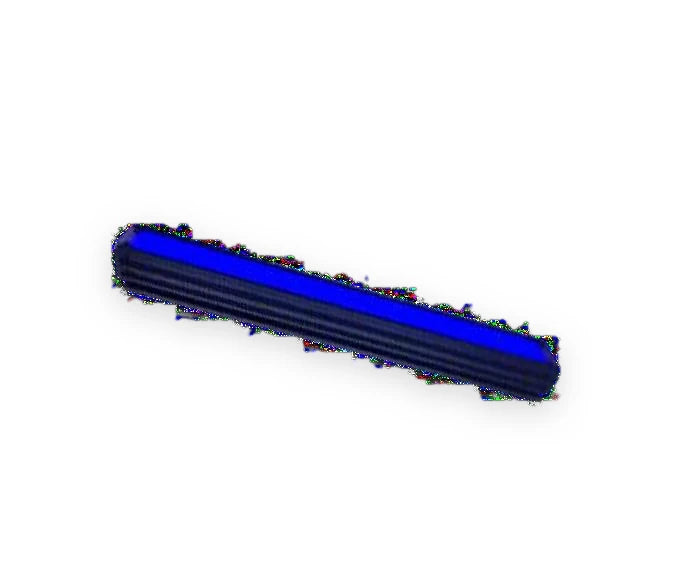

Representative photo of this series

Bar lights

25.2 mm strip light, LS-BAR-S90 series (LS-BAR-0931)

Model LS-BAR-0931

  • ColourRed, Green, Blue, White, Infrared, UV
  • Voltage24 V DC (12 V on request)
  • TypeStrip / combination
  • Number of lamp rows4
$89.00

Ships in 2-3 weeks

0.2 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

25.2 mm strip light, LS-BAR-S90 series (LS-BAR-0931)LS-BAR-0931

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

First choice for large-area lighting with high cost performance; surface-mount LEDs and special optical lenses concentrate the divergence angle for high light efficiency and stable mass production.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-0931
Number of lamp rows4
Minimum splicing unit (mm)25.2

Interfaces and I/O

Cable length (mm)500

Light

Emitting width (mm)17
Emitting length (mm)25.2

Electrical

Voltage24 V DC (12 V on request)
Power red (W)1
Power white/blue/green (W)1.1

Mechanical

Width (mm)21.9
Height (mm)23.9
MountingM3 nut placement groove
Length (mm)40.2
Shipping weight0.20 kg

Other models in the Strip light, LS-BAR-S90 series series

See all 26 models
ModelSize / key dataPriceAvailabilityLink
LS-BAR-0932 50.6 mm $159.00 Ships in 2-3 weeks View
LS-BAR-0933 70.2 mm $179.00 Ships in 2-3 weeks View
LS-BAR-0934 75.6 mm $189.00 Ships in 2-3 weeks View
LS-BAR-0938 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $189.00 Ships in 2-3 weeks View
LS-BAR-0935 92.6 mm $209.00 Ships in 2-3 weeks View
LS-BAR-0936 100.8 mm $219.00 Ships in 2-3 weeks View
LS-BAR-0937 126 mm $249.00 Ships in 2-3 weeks View
LS-BAR-0939 151.2 mm $259.00 Ships in 2-3 weeks View
LS-BAR-0940 176.4 mm $279.00 Ships in 2-3 weeks View
LS-BAR-0943 252 mm $299.00 Ships in 2-3 weeks View
LS-BAR-0941 201.6 mm $309.00 Ships in 2-3 weeks View
LS-BAR-0944 277.2 mm $309.00 Ships in 2-3 weeks View
LS-BAR-0945 302.4 mm $329.00 Ships in 2-3 weeks View
LS-BAR-0942 226.8 mm $359.00 Ships in 2-3 weeks View
LS-BAR-0946 378 mm $399.00 Ships in 2-3 weeks View
LS-BAR-0947 403.2 mm $519.00 Ships in 2-3 weeks View
LS-BAR-0949 478.8 mm $519.00 Ships in 2-3 weeks View
LS-BAR-0950 504 mm $569.00 Ships in 2-3 weeks View
LS-BAR-0948 453.6 mm $579.00 Ships in 2-3 weeks View
LS-BAR-0951 529.2 mm $579.00 Ships in 2-3 weeks View
LS-BAR-0952 554.4 mm $579.00 Ships in 2-3 weeks View
LS-BAR-0953 579.6 mm $579.00 Ships in 2-3 weeks View
LS-BAR-0954 604.8 mm $629.00 Ships in 2-3 weeks View
LS-BAR-0955 806.4 mm $929.00 Ships in 2-3 weeks View
