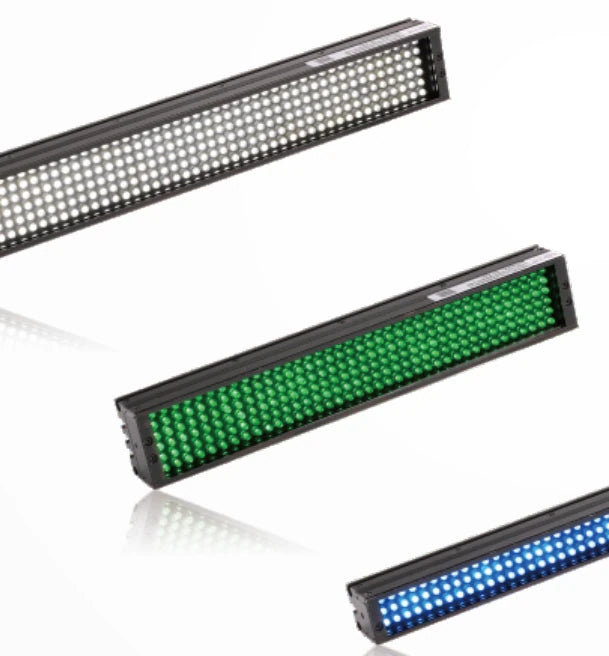

Representative photo of this series

Bar lights

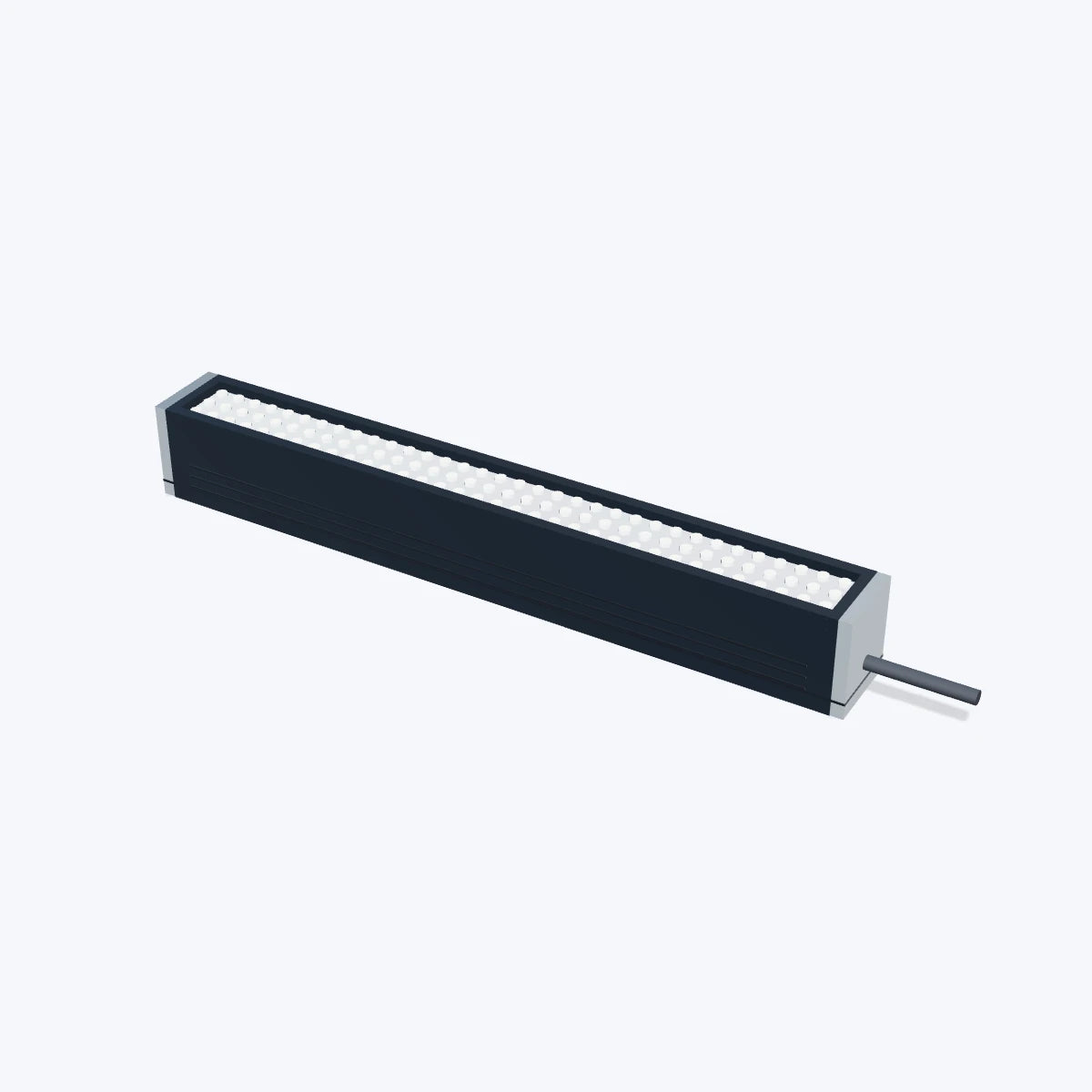

192 x 16 mm High luminance bar light (LS-BAR-0391)

Model LS-BAR-0391

ColourRed, Green, Blue, White
Size192 mm
Voltage24 V
TypeStandard

$279.00

Ships in 2-3 weeks

0.4 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

High luminance bar light with a small-angle LED array; parts made with high-precision moulds reduce batch-to-batch differences, with high heat-dissipation performance, multiple installation methods and optional diffuser plates of different transmittance.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BAR-0391
Option	Diffuser plate; polarizing plate
Light array quantities	3
Remark	16mm

Interfaces and I/O

Cable length	500 mm
Extension cable options	PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines)

Light

Colour temperature of white	6600 K
Emitting length	B = A - 12
Luminous surface width (mm)	16
Emitting length B (mm)	180

Environment and compliance

Operating temperature	0-50 °C
Operating humidity	20-85% (non-condensing)
Lifespan	50000 h (to 50% of factory default luminance)

Electrical

Voltage	24 V
Adapted controllers	Analog controller, digital controller, high power controller
Power (R)	2.9W
Power (G/B/W)	4.3W

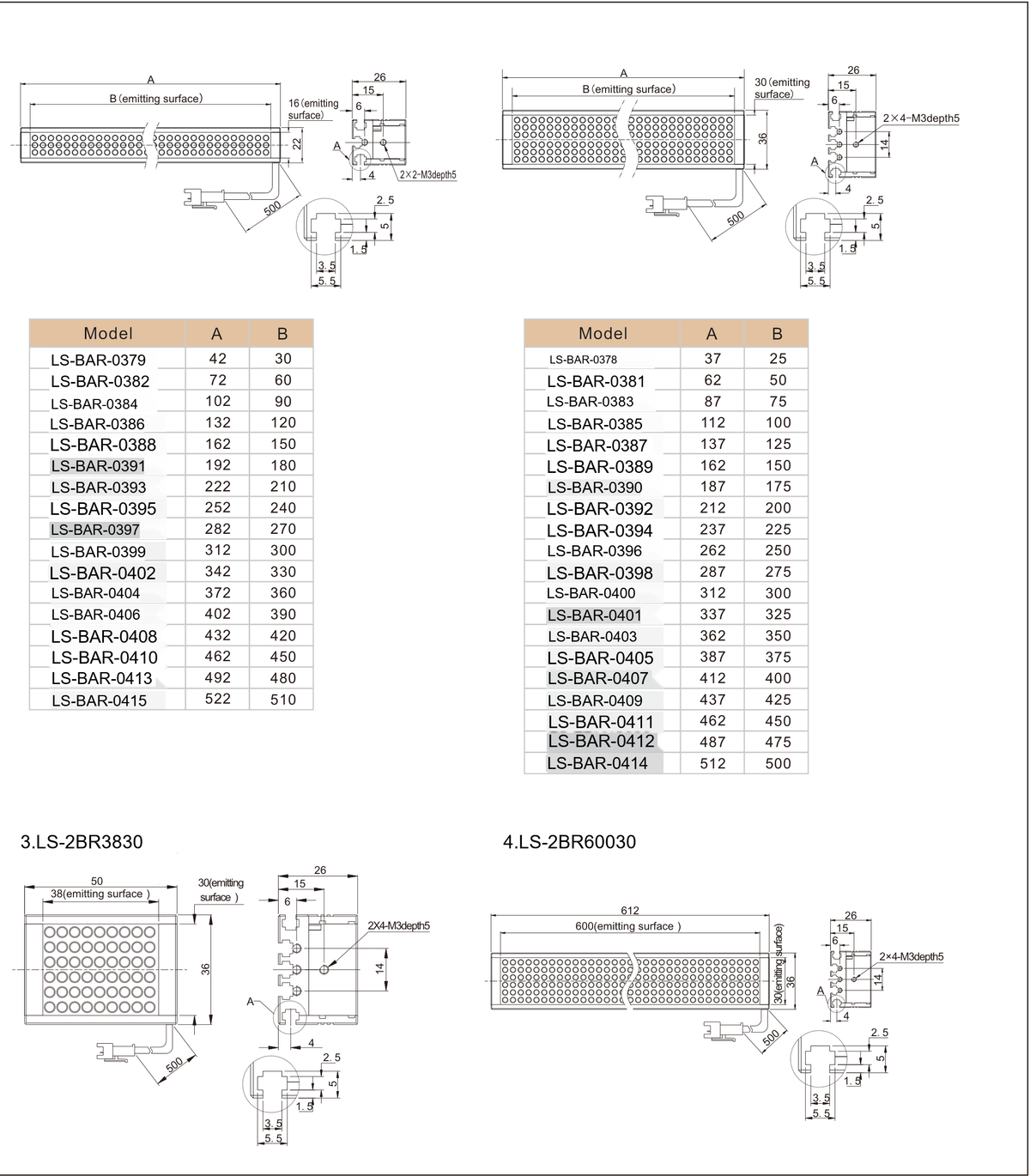

Mechanical

Weight	176 g
Dimension A (mm)	192

Downloads

Datasheet (PDF)LS-BAR-0391 · 1.9 MB

Features

Small-angle LED array design, high luminance
Made with high-precision moulds, smaller difference between batches, high heat-dissipation performance
Multiple installation methods, easy to install: frame structure keeps the built-in installing holes, M3 screw and nut (not attached)
Different transmittance diffuser plates optional
Small-angle plug-in type LEDs
Options: diffuser plate (reduces lamp shadow and glare on reflective workpieces); polarizing plate (used with a polarized lens to remove glare from uneven surfaces and reflected light)
Wire jacket covers the cable exit, anti-pull
Customizable: Light array quantities, Length & width, Combined light, Colour & colour temperature, Multi-area control, Cable length, Installation method
UV & IR versions can be customized as required

Applications

Large LCD panel defect inspection
Metal surface defect inspection
Printed character defect inspection
Connector pin flatness inspection
Imaging example: outlook (printed) character inspection on plastic products with 2 pcs LS-BAR-0390-W, obvious contrast for printing defect inspection
