Representative photo of this series
Bar lights

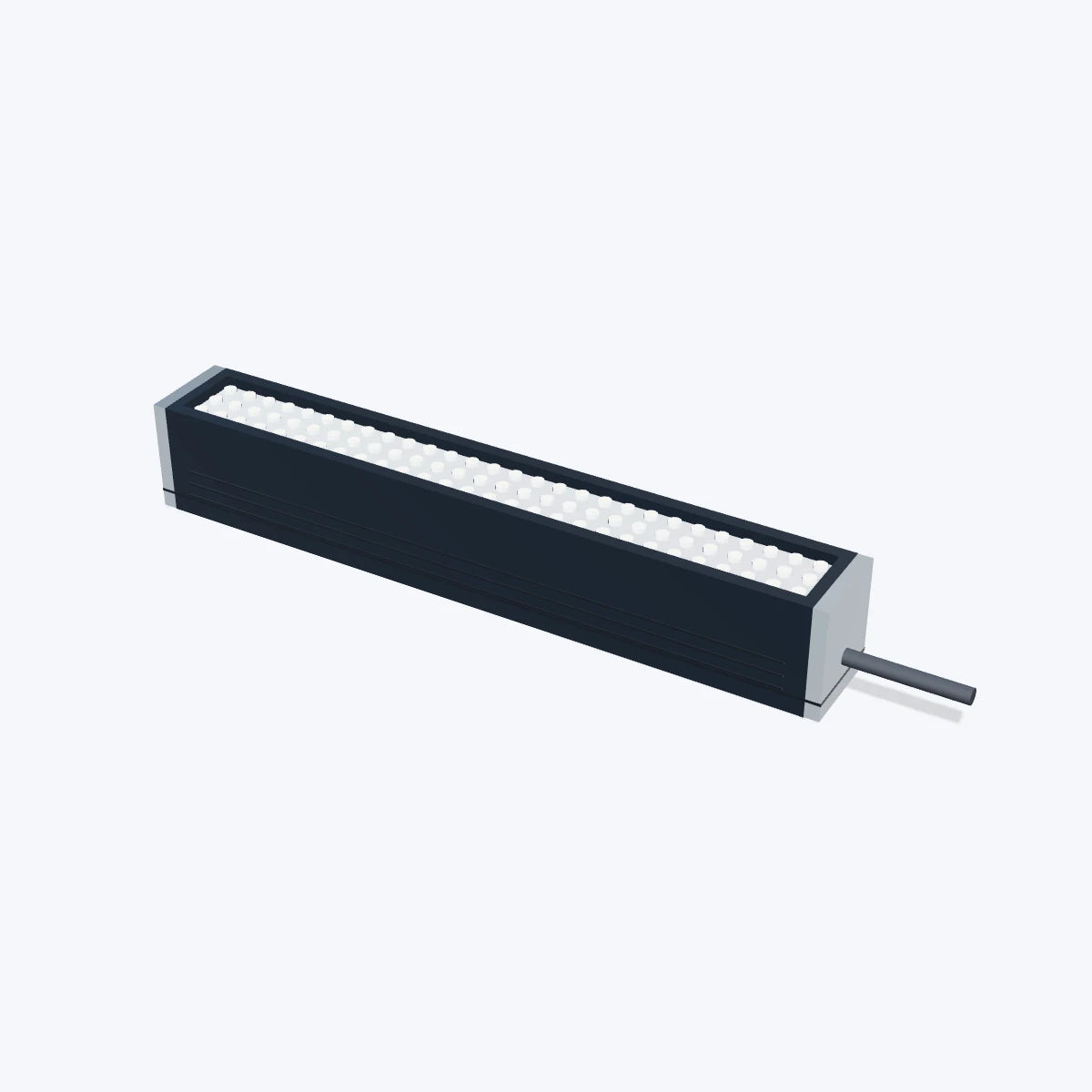

162 x 16 mm High luminance bar light (LS-BAR-0388)
Model LS-BAR-0388
- ColourRed, Green, Blue, White
- Size162 mm
- Voltage24 V
- TypeStandard
$259.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.35 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High luminance bar light with a small-angle LED array; parts made with high-precision moulds reduce batch-to-batch differences, with high heat-dissipation performance, multiple installation methods and optional diffuser plates of different transmittance.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0388 |
|---|---|
| Option | Diffuser plate; polarizing plate |
| Light array quantities | 3 |
| Remark | 16mm |
Interfaces and I/O
| Cable length | 500 mm |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines) |
Light
| Colour temperature of white | 6600 K |
|---|---|
| Emitting length | B = A - 12 |
| Luminous surface width (mm) | 16 |
| Emitting length B (mm) | 150 |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory default luminance) |
Electrical
| Voltage | 24 V |
|---|---|
| Adapted controllers | Analog controller, digital controller, high power controller |
| Power (R) | 2.4W |
| Power (G/B/W) | 3.6W |
Mechanical
| Weight | 158 g |
|---|---|
| Dimension A (mm) | 162 |
Other models in the High luminance bar light (LS-BAR-S66) series
See all 45 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BAR-0378 | 30 mm | $89.00 | 16 in stock | View |
| LS-BAR-0380 | 38 x 30 mm | $139.00 | 14 in stock | View |
| LS-BAR-0379 | 42 x 16 mm | $149.00 | 15 in stock | View |
| LS-BAR-0381 | 62 x 30 mm | $169.00 | 10 in stock | View |
| LS-BAR-0382 | 72 x 16 mm | $179.00 | 12 in stock | View |
| LS-BAR-0383 | 87 x 30 mm | $199.00 | 15 in stock | View |
| LS-BAR-0384 | 102 x 16 mm | $219.00 | 13 in stock | View |
| LS-BAR-0385 | 112 x 30 mm | $229.00 | 11 in stock | View |
| LS-BAR-0386 | 132 x 16 mm | $259.00 | 14 in stock | View |
| LS-BAR-0387 | 137 x 30 mm | $259.00 | 15 in stock | View |
| LS-BAR-0389 | 162 x 30 mm | $259.00 | 14 in stock | View |
| LS-BAR-0394 | 237 x 30 mm | $269.00 | 15 in stock | View |
| LS-BAR-0391 | 192 x 16 mm | $279.00 | 10 in stock | View |
| LS-BAR-0390 | 187 x 30 mm | $279.00 | 14 in stock | View |
| LS-BAR-0395 | 252 x 16 mm | $299.00 | 16 in stock | View |
| LS-BAR-0396 | 262 x 30 mm | $299.00 | 15 in stock | View |
| LS-BAR-0397 | 282 x 16 mm | $309.00 | 16 in stock | View |
| LS-BAR-0398 | 287 x 30 mm | $319.00 | 9 in stock | View |
| LS-BAR-0392 | 212 x 30 mm | $329.00 | 17 in stock | View |
| LS-BAR-0399 | 312 x 16 mm | $339.00 | 13 in stock | View |
| LS-BAR-0400 | 312 x 30 mm | $339.00 | 14 in stock | View |
| LS-BAR-0393 | 222 x 16 mm | $359.00 | 16 in stock | View |
| LS-BAR-0402 | 342 x 16 mm | $359.00 | 12 in stock | View |
| LS-BAR-0401 | 337 x 30 mm | $359.00 | 14 in stock | View |
