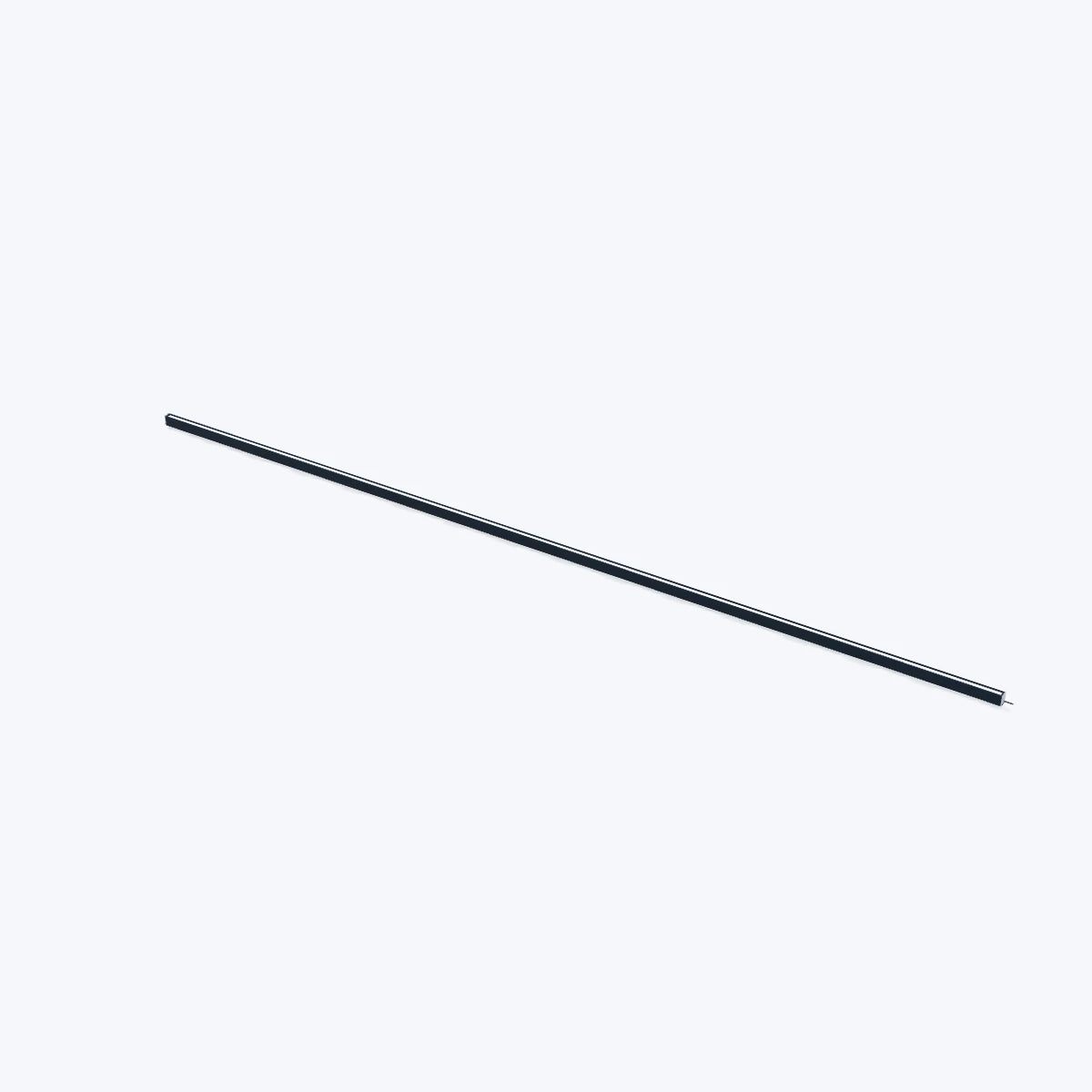

LS-BAR-0363 — Bar lights. Dimension-based illustration; details and finish are representative.
  • LS-BAR-0363 — Bar lights. Dimension-based illustration; details and finish are representative.
  • LS-BAR-0213 dimensions (mm)

Dimension-based illustration. Housing dimensions follow this model's printed specifications; LED layout, cable position, finish and light colour are representative.

Bar lights

2307 x 12 mm Diffused bar light (LS-BAR-0363)

Model LS-BAR-0363

  • ColourRed, Green, Blue, White
  • TypeDiffused
  • Voltage24 V
  • Wavelength red620-630 nm
$2,189.00

Ships in 2-3 weeks

1.6 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

2307 x 12 mm Diffused bar light (LS-BAR-0363)LS-BAR-0363

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Bar light with a flexible size design and patch (SMD) LEDs with a large divergence angle. A high-uniformity diffuse plate is used, so it can also serve as a backlight.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-0363
Optional accessoriesExtension cable, diffuse plate
Service lifeRed: 60000 h continuous at 25 °C and 50% illumination until 50% decrement; white: 30000 h under the same conditions
Lamp bead rows1
L (mm)2307
W (mm)18
H (mm)27

Interfaces and I/O

Cable length500 mm (drawings)
Light cable1

Light

Wavelength red620-630 nm
Wavelength green520-530 nm
Wavelength blue465-475 nm
Colour temperature white6000-6500 K
Wavelength IR850-940 nm
Wavelength UV365-405 nm
Emitting width (mm)12

Environment and compliance

Storage temperature-20 to 60 °C
Operating temperature0 to 40 °C
Humidity20-85 %RH (non-condensing)

Electrical

ControllerLS-CTL-S69 series, LS-CTL-S28 series, LS-CTL-S125 series (the selected controller should match the power of the light source)
Power R (W)25.5
Power G/B/W (W)25.5
Recommended controllerLS-CTL-S69, LS-CTL-S28, LS-CTL-S125
Supply voltage (derived)24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28

Mechanical

Length ruleL = 12 (end plate thickness) + X (emitting length, increases in multiples of 45 mm)
Mounting2 x 2-M3, depth 5 (drawings)
Shipping weight1.60 kg
