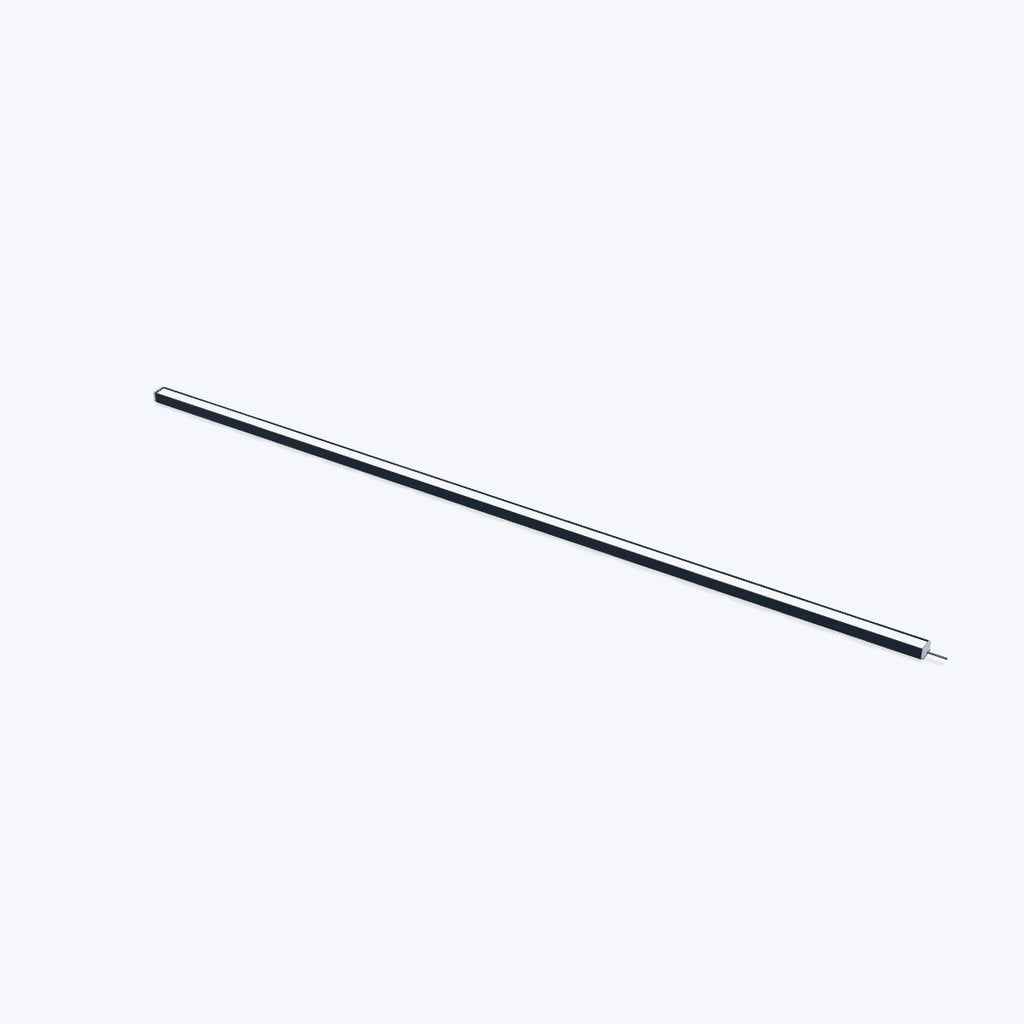

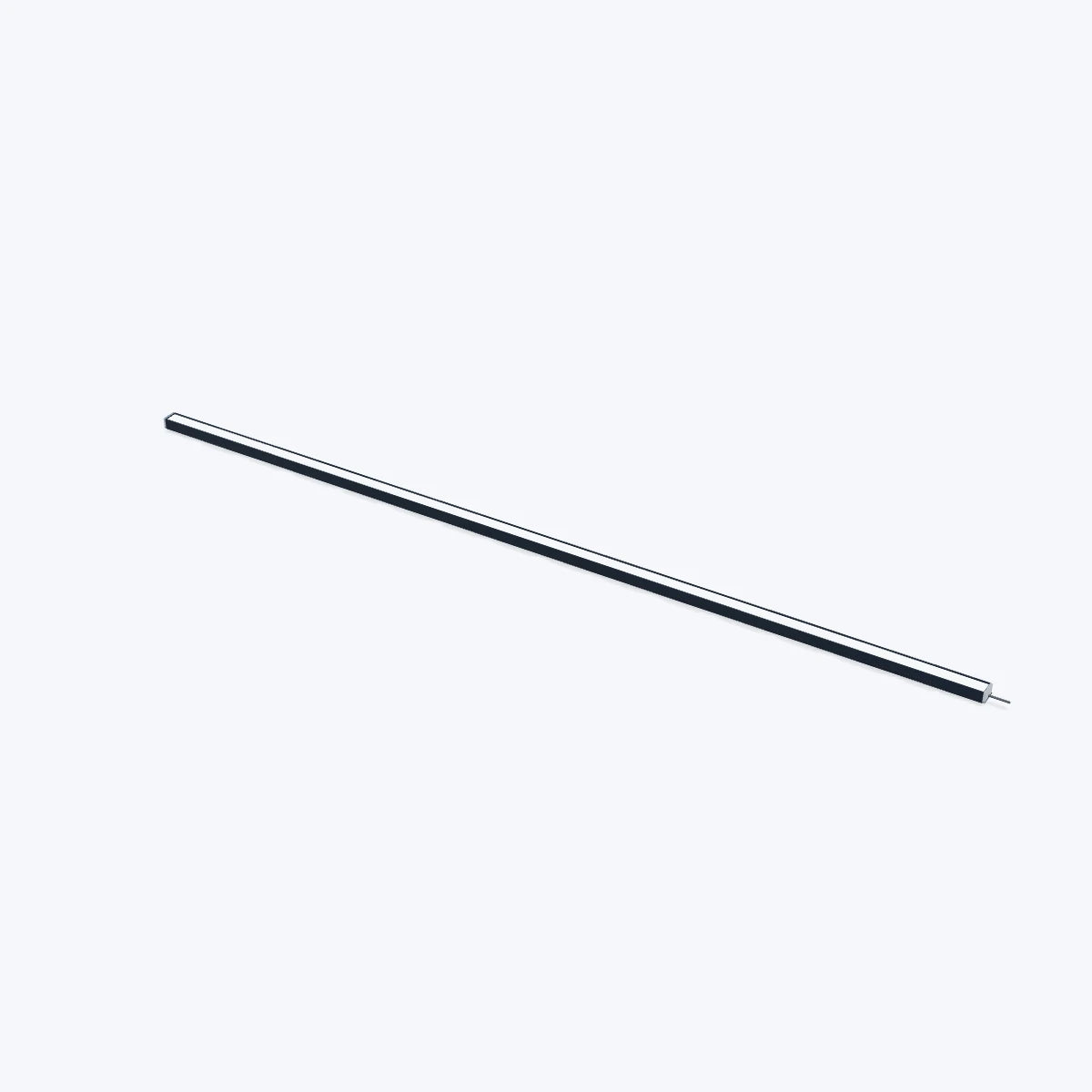

Dimension-based illustration. Housing dimensions follow this model's printed specifications; LED layout, cable position, finish and light colour are representative.

Bar lights

2127 x 32 mm Diffused bar light (LS-BAR-0353)

Model LS-BAR-0353

ColourRed, Green, Blue, White
TypeDiffused
Voltage24 V
Wavelength red620-630 nm

$2,089.00

Ships in 2-3 weeks

2.95 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

Bar light with a flexible size design and patch (SMD) LEDs with a large divergence angle. A high-uniformity diffuse plate is used, so it can also serve as a backlight.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BAR-0353
Optional accessories	Extension cable, diffuse plate
Service life	Red: 60000 h continuous at 25 °C and 50% illumination until 50% decrement; white: 30000 h under the same conditions
Lamp bead rows	5
L (mm)	2127
W (mm)	38
H (mm)	27

Interfaces and I/O

Cable length	500 mm (drawings)
Light cable	2

Light

Wavelength red	620-630 nm
Wavelength green	520-530 nm
Wavelength blue	465-475 nm
Colour temperature white	6000-6500 K
Wavelength IR	850-940 nm
Wavelength UV	365-405 nm
Emitting width (mm)	32

Environment and compliance

Storage temperature	-20 to 60 °C
Operating temperature	0 to 40 °C
Humidity	20-85 %RH (non-condensing)

Electrical

Controller	LS-CTL-S69 series, LS-CTL-S28 series, LS-CTL-S125 series (the selected controller should match the power of the light source)
Power R (W)	61.1
Power G/B/W (W)	79.9
Recommended controller	LS-CTL-S69, LS-CTL-S28, LS-CTL-S125
Supply voltage (derived)	24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28

Mechanical

Length rule	L = 12 (end plate thickness) + X (emitting length, increases in multiples of 45 mm)
Mounting	2 x 2-M3, depth 5 (drawings)
Shipping weight	2.95 kg
