Bar light, 50.8 mm, nominal size 2 x 2 in (LS-BAR-0201)

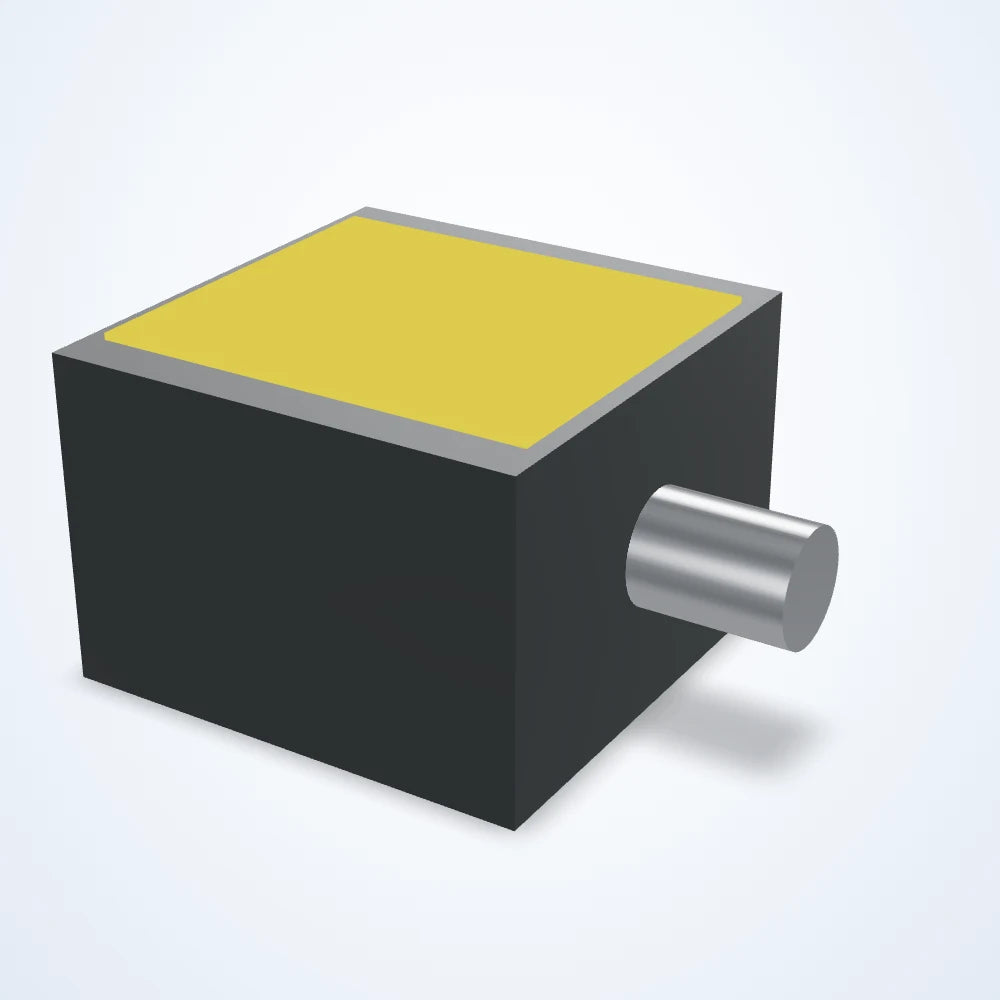

  • Bar light, 50.8 mm, nominal size 2 x 2 in (LS-BAR-0201)

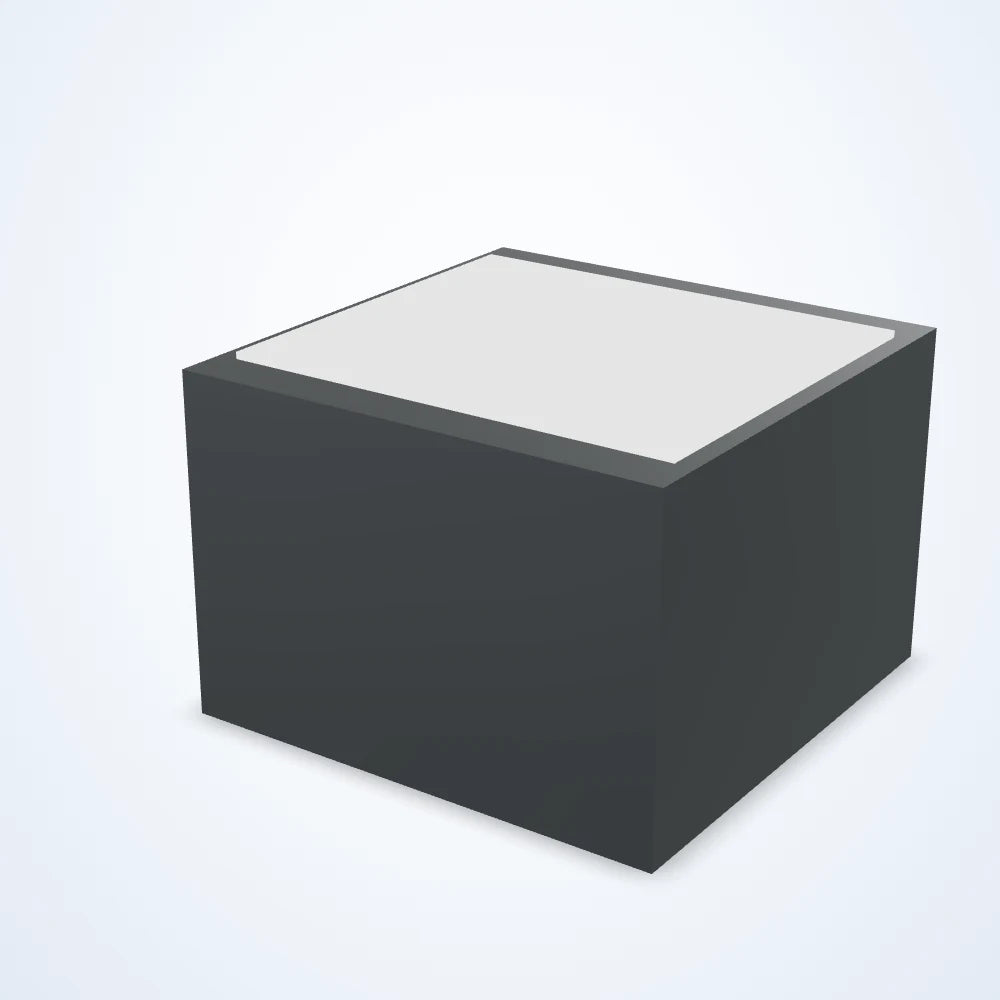

  • Bar light, 50.8 mm, nominal size 2 x 2 in (LS-BAR-0201) - view 2

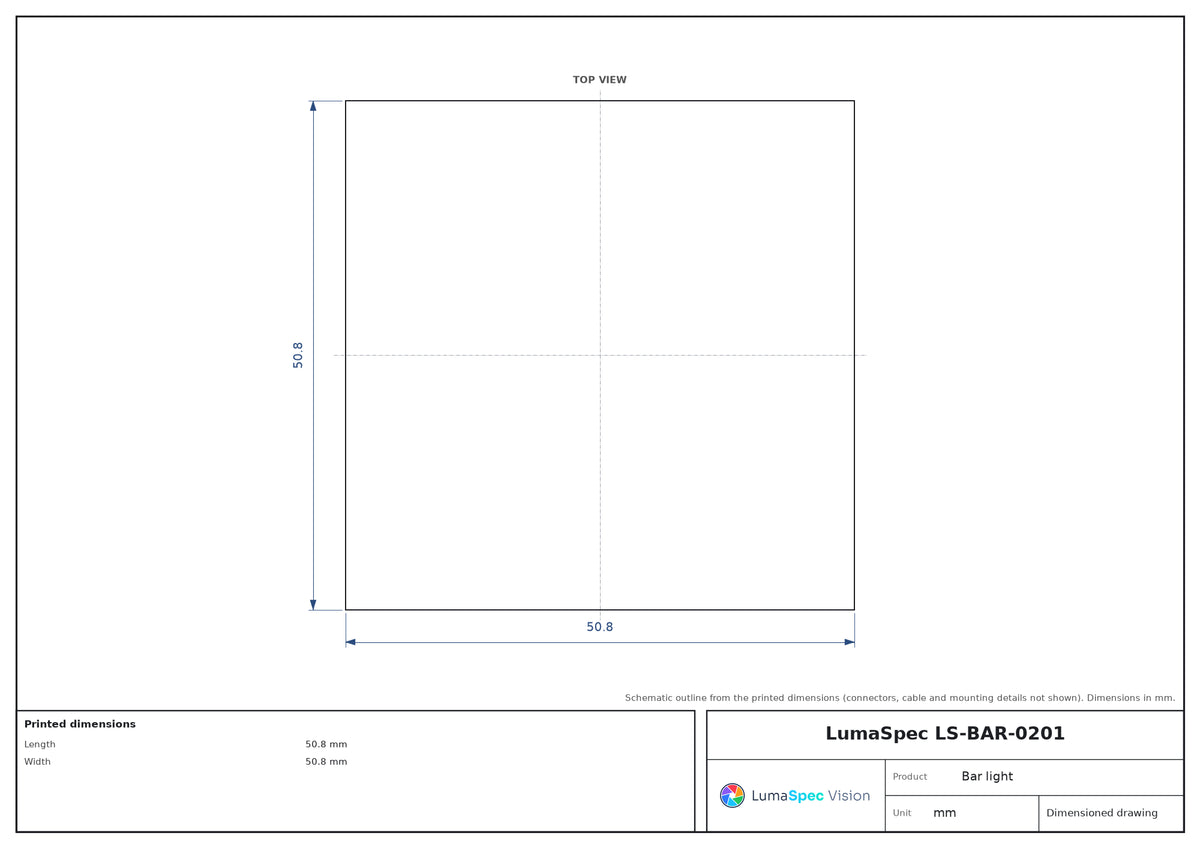

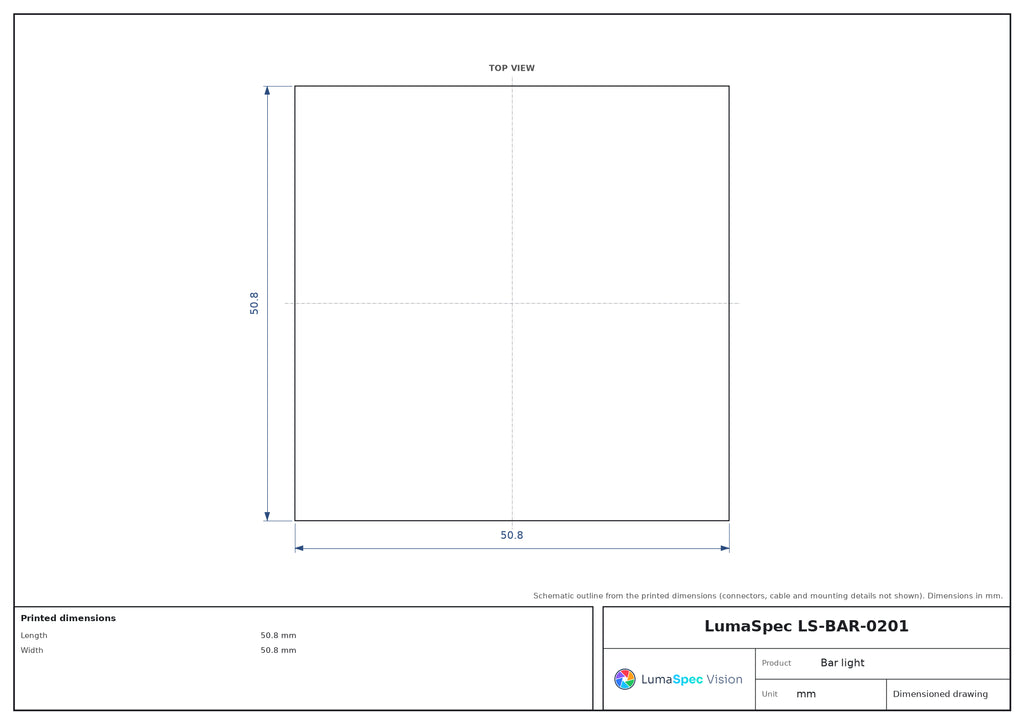

  • LS-BAR-0201 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Bar lights

Bar light, 50.8 mm, nominal size 2 x 2 in (LS-BAR-0201)

Model LS-BAR-0201

  • Voltage24 V DC
  • TypeStandard
  • ColourAmber (590nm)
  • Length50.8 mm
$759.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

LED bar light for directional, low-angle or angled illumination: edges, surface texture, engraving and label reading, mounted singly or in pairs and quads. 24 V DC supply; connection: m12 quick-disconnect.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-0201
Intensity control0-10 V DC analog, potentiometer
DriverInternal

Interfaces and I/O

ConnectorM12 quick-disconnect

Light

ColourAmber (590nm)

Electrical

Voltage24 V DC

Mechanical

Length (mm)50.8
Width (mm)50.8
Nominal size2 x 2 in
