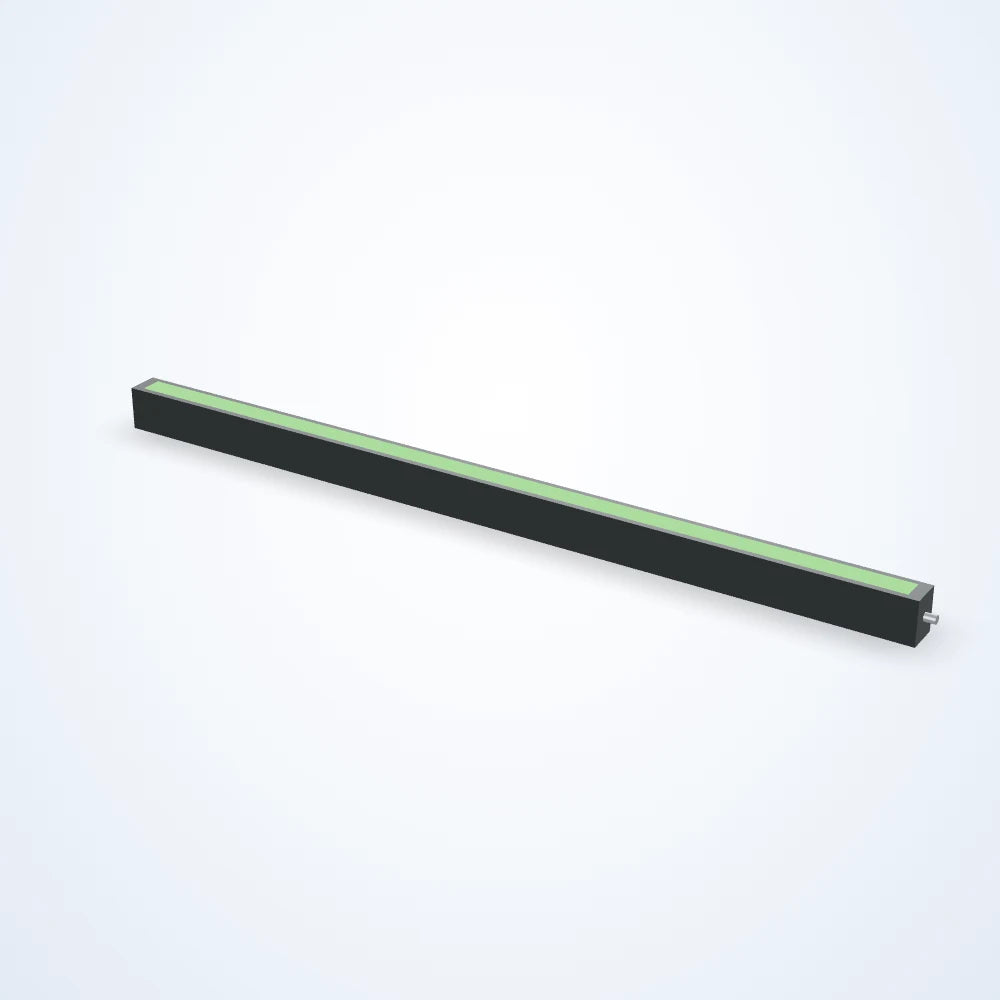

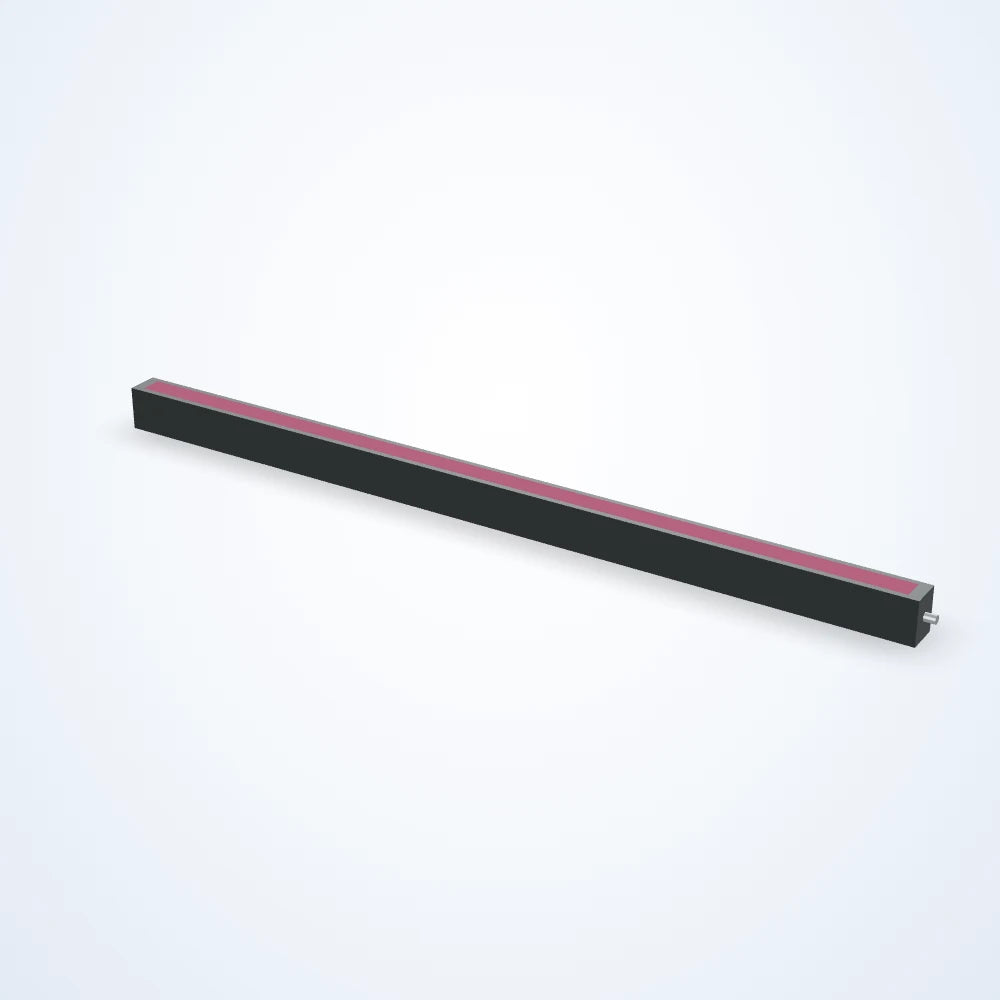

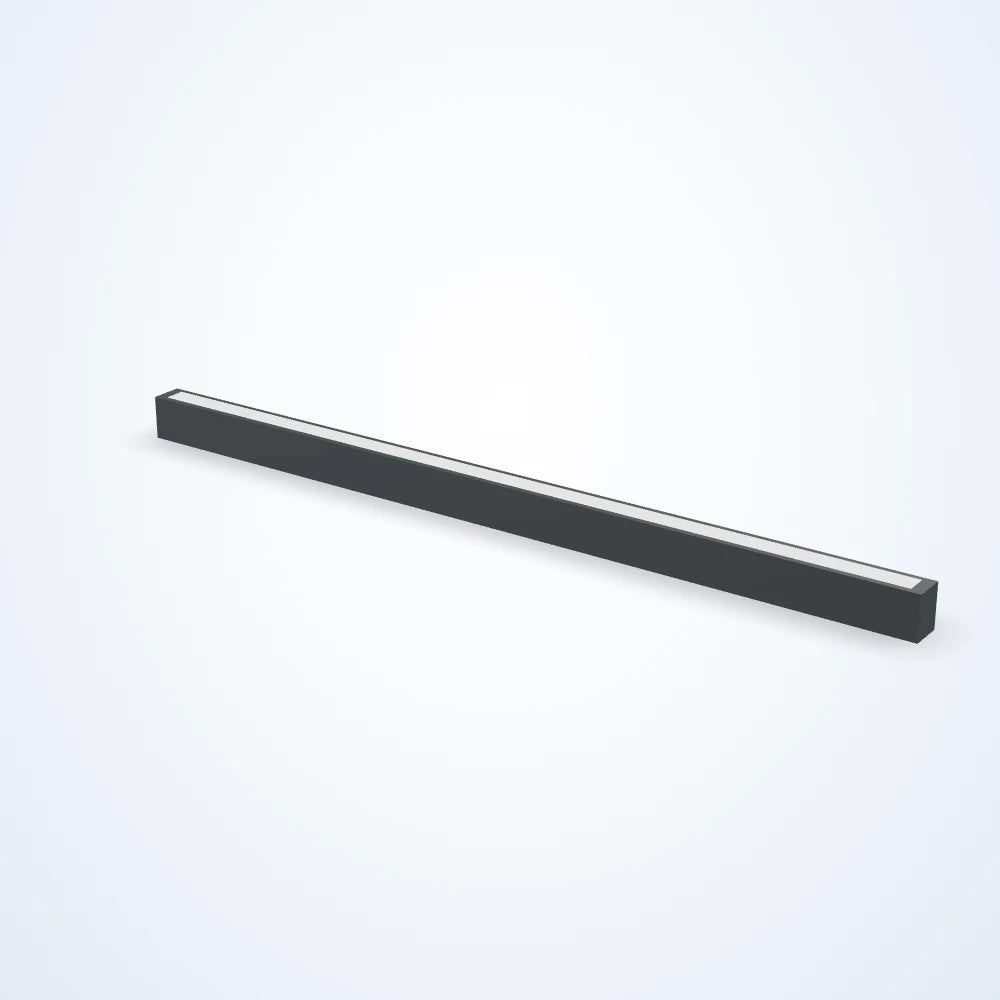

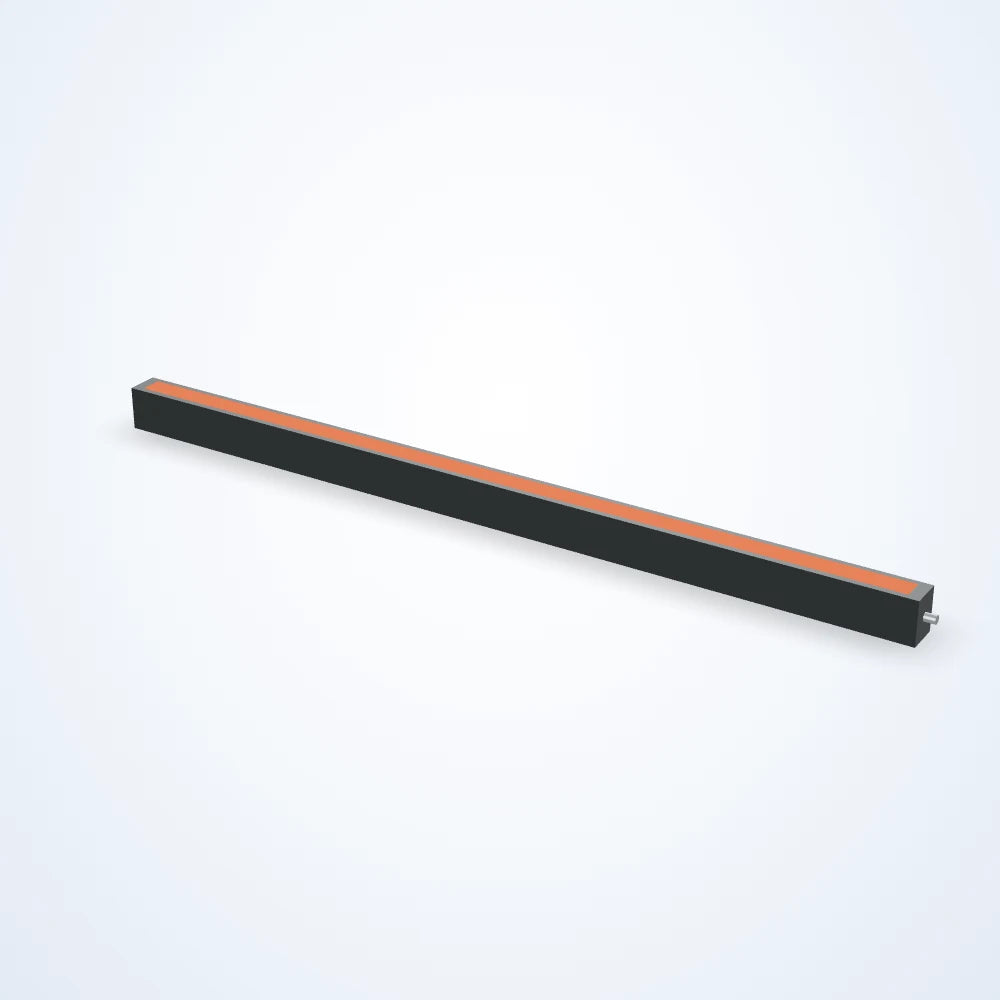

Bar light, 1187 mm lit length (LS-BAR-0140)

Rendered illustration: the actual product may differ in appearance.

Bar lights

Bar light, 1187 mm lit length (LS-BAR-0140)

Model LS-BAR-0140

ColourWhite, Red, Green, Infrared, Blue
Voltage24 VDC
TypeStandard
Wavelength850 nm, 940 nm

from $1,479.00 USDQuote

Quoted price: add to quote for lead time and volume pricing.

Built to order: ships in about 1-2 weeks

Choose a configuration 21 available

Colour

Lens / beam angle

Configuration LS-BAR-0140-01 $1,479.00

List price of this configuration; the final quote follows.

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

LED bar light for directional, low-angle or angled illumination: edges, surface texture, engraving and label reading, mounted singly or in pairs and quads. Lit area 1187 x 30 mm; 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour, lens / beam angle below (21 configurations) and request a quote.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BAR-0140
Connection at light	Connectorized
Driver included	Included
Driver location	Internal
Intensity control	Analog Voltage
Operating modes	Constant On, Constant On – Dimmable, Overcurrent Strobe, Strobe, Strobe – Dimmable
Collimated	Not Collimated
Daisy chain	No
Direct connect	No
Maximum duty cycle (%)	100
Polarized	Not Polarized

Interfaces and I/O

Connector	5 Pin M12 Male A-Coded
Cable length (mm)	200

Light

Diffused	Not Diffused

Environment and compliance

Operating temperature	-40 to 50 °C
IP rating	IP65
Storage temperature	-20 to 70 °C
Compliance	CE, IEC 62471, RoHS

Electrical

Voltage	24 VDC
Strobe trigger input	NPN Trigger, PNP Trigger
Max overcurrent strobe current	20000 mA
Max overcurrent strobe input power	480 W
Maximum constant on current (mA)	3000
Maximum current (overcurrent strobe) (mA)	20000
Maximum input power constant on (W)	72
Maximum input power overcurrent strobe (W)	480
Maximum overcurrent strobe duration (ms)	50
Maximum overcurrent strobe duty cycle (%)	10
Maximum overcurrent strobe frequency (Hz)	4000
Maximum overcurrent strobe latency (µs)	6
Maximum strobe current (mA)	3000
Maximum strobe duration (ms)	No Limit
Maximum strobe duty cycle (%)	100
Maximum strobe frequency (Hz)	4000
Maximum strobe input power (W)	72
Maximum strobe latency (µs)	10
Minimum overcurrent strobe duration (µs)	30
Minimum strobe duration (µs)	30
NPN trigger current (mA)	22
NPN trigger voltage (V)	< 1 VDC
PNP trigger current (mA)	30.4
PNP trigger voltage (V)	4-24 VDC

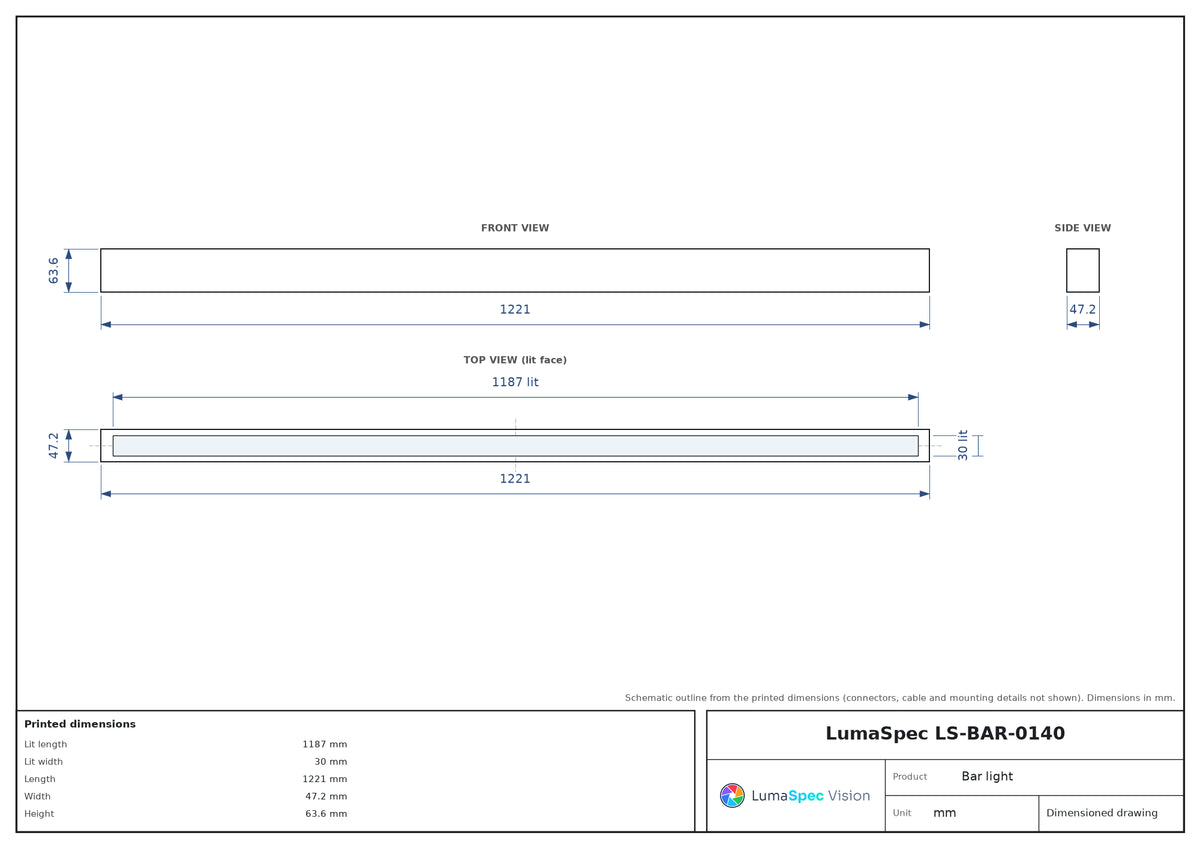

Mechanical

Lit length (mm)	1187
Lit width (mm)	30
Length (mm)	1221
Width (mm)	47.2
Height (mm)	63.6
Housing	Aluminum
Mounting	T-Slot Channels
