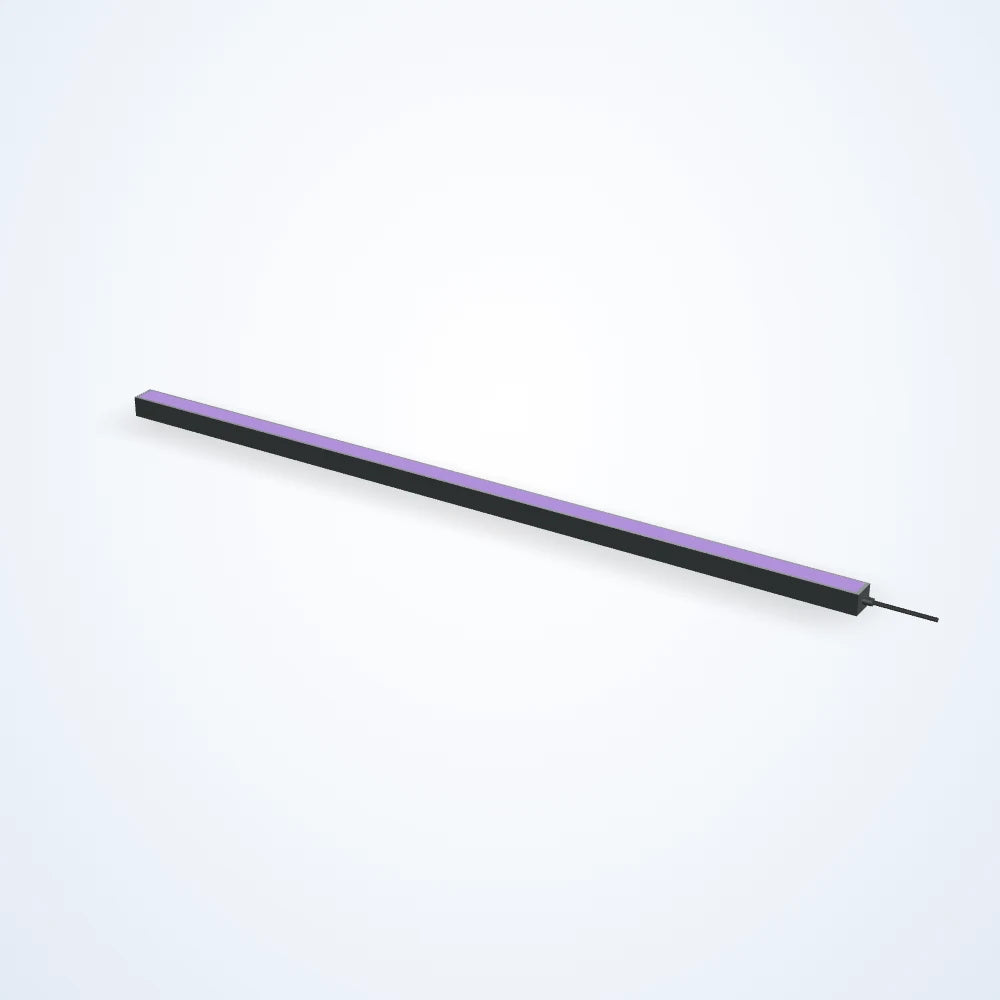

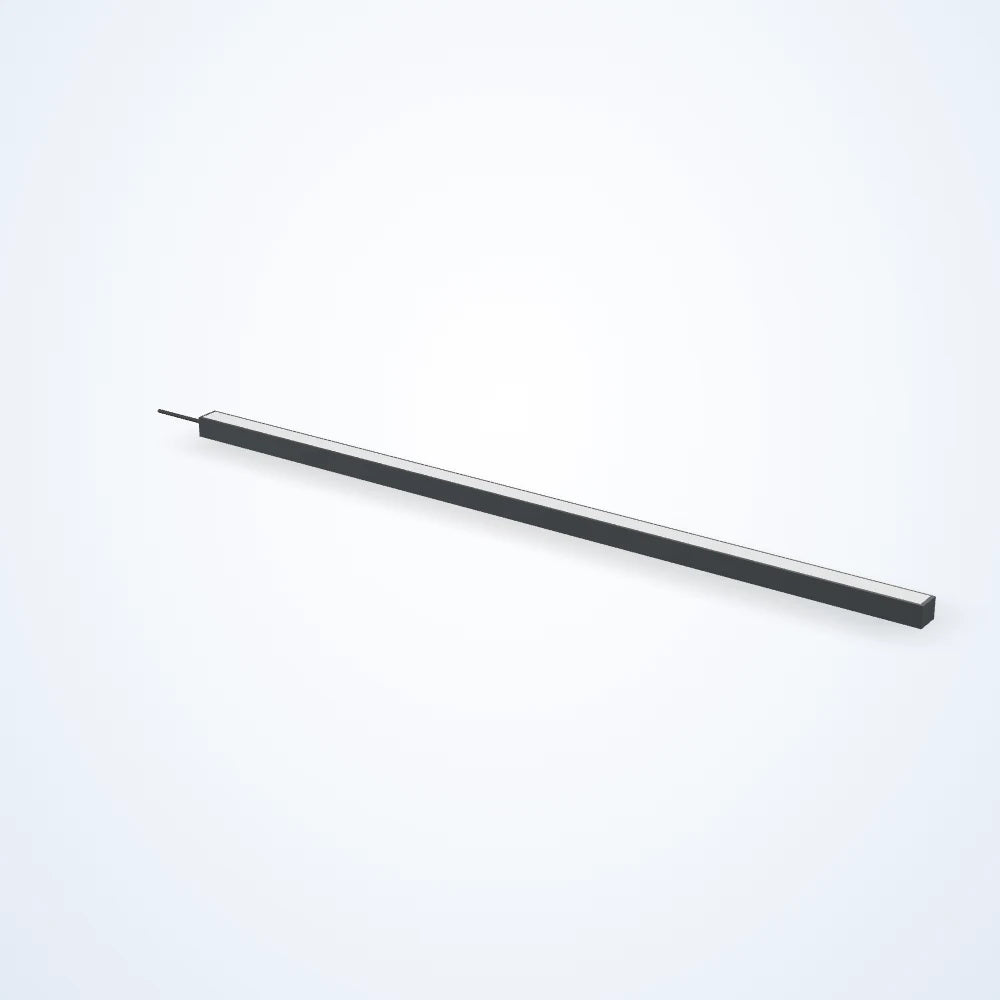

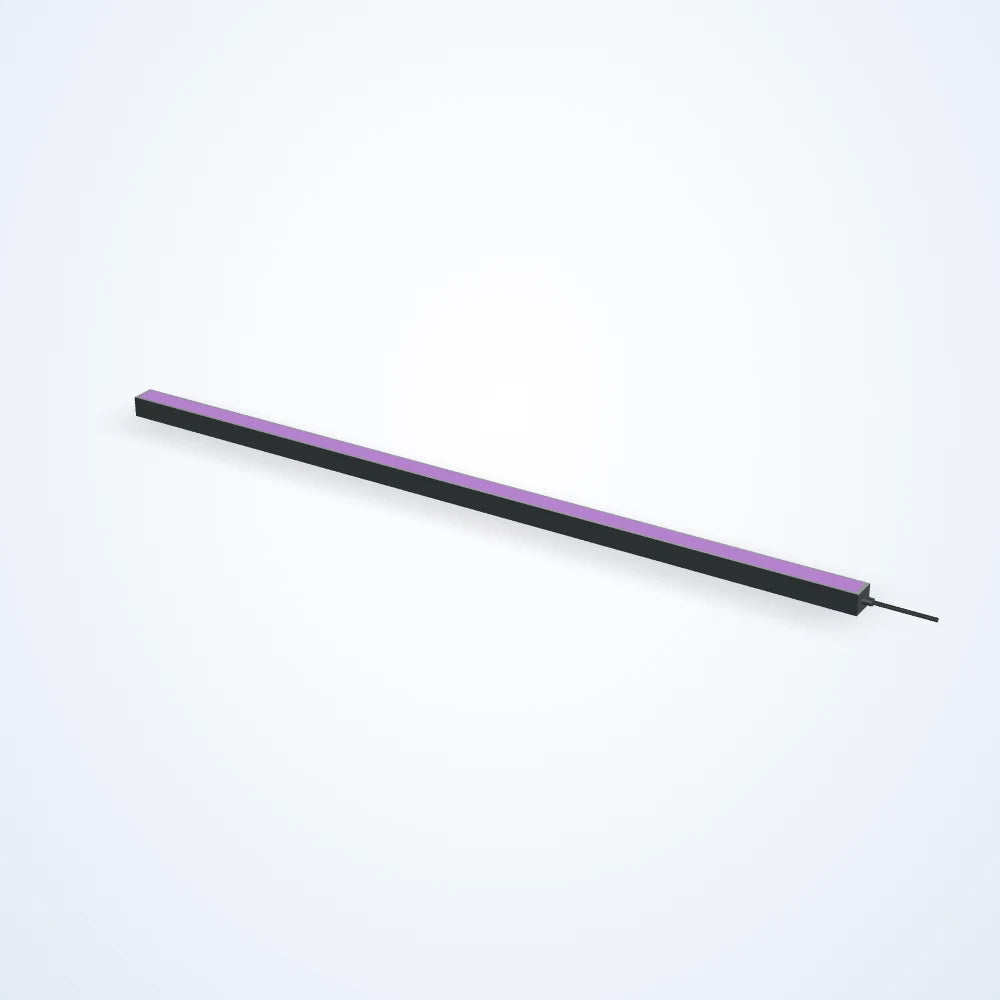

Bar light, 1085 mm lit length (LS-BAR-0111-L7)

Rendered illustration: the actual product may differ in appearance.

Bar lights

Bar light, 1085 mm lit length (LS-BAR-0111-L7)

Model LS-BAR-0111-L7

ColourGreen, Infrared, Red, UV, Blue, White
Voltage24 VDC
TypeStandard
Wavelength365 nm, 375 nm, 385 nm, 395 nm, 405 nm, 730 nm, 850 nm, 940 nm

from $3,099.00 USDQuote

Quoted price: add to quote for lead time and volume pricing.

Built to order: ships in about 4-5 weeks

Choose a configuration 48 available

Colour

Lens / beam angle

Configuration LS-BAR-0111-0273 $3,529.00

List price of this configuration; the final quote follows.

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

LED bar light for directional, low-angle or angled illumination: edges, surface texture, engraving and label reading, mounted singly or in pairs and quads. Lit area 1085 x 25.9 mm; 24 VDC supply; connection: flying leads. Choose colour, lens / beam angle below (48 configurations) and request a quote.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BAR-0111-L7
Connection at light	Hardwired
Driver included	No Driver Required
Driver location	No Driver
Operating modes	Constant On
Collimated	Not Collimated
Daisy chain	No
Direct connect	No
Maximum duty cycle (%)	100
Polarized	Not Polarized

Interfaces and I/O

Connector	Flying Leads
Cable length (mm)	2000

Light

Diffused	Not Diffused

Environment and compliance

Operating temperature	up to 60 °C
IP rating	IP50
Compliance	CE, IEC 62471, RoHS
Minimum operating temperature	32 °F (0 °C)

Electrical

Voltage	24 VDC
Strobe trigger input	Constant On Only
Maximum constant on current (mA)	2672
Maximum input power constant on (W)	64.1

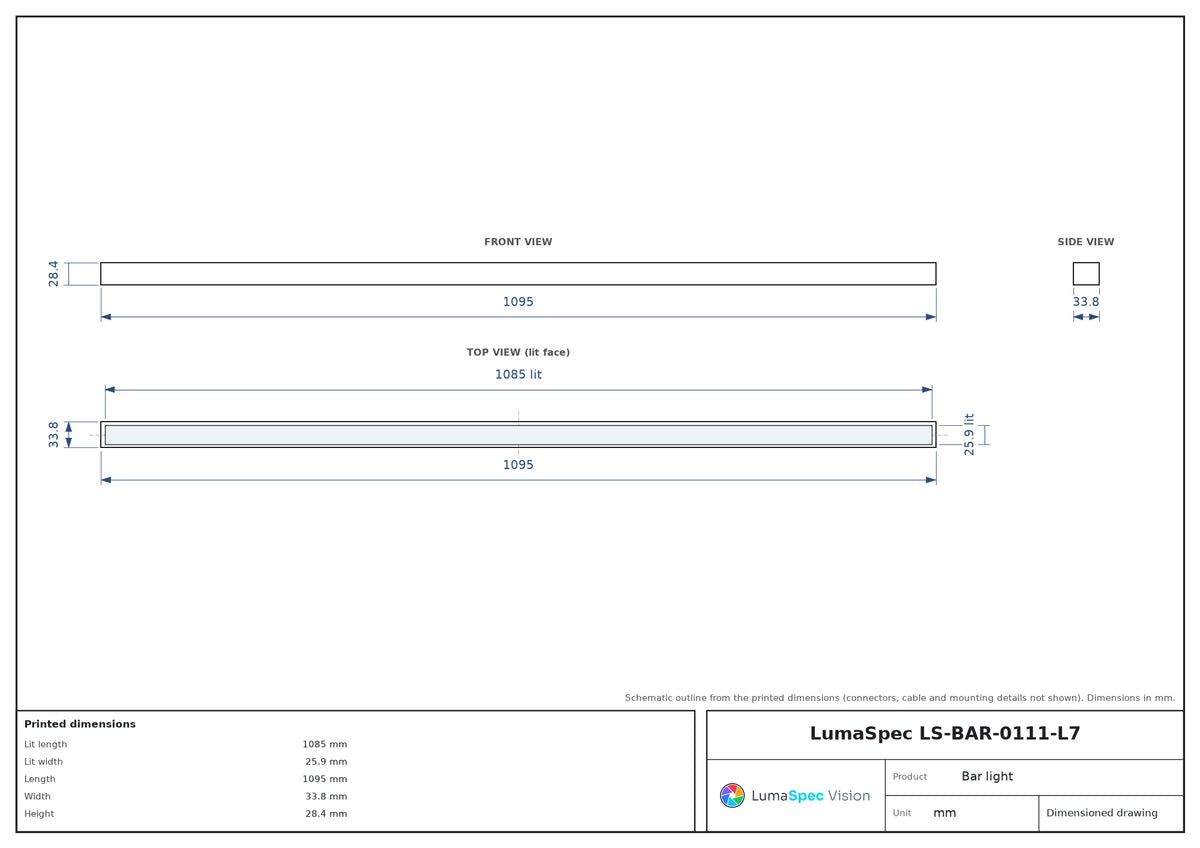

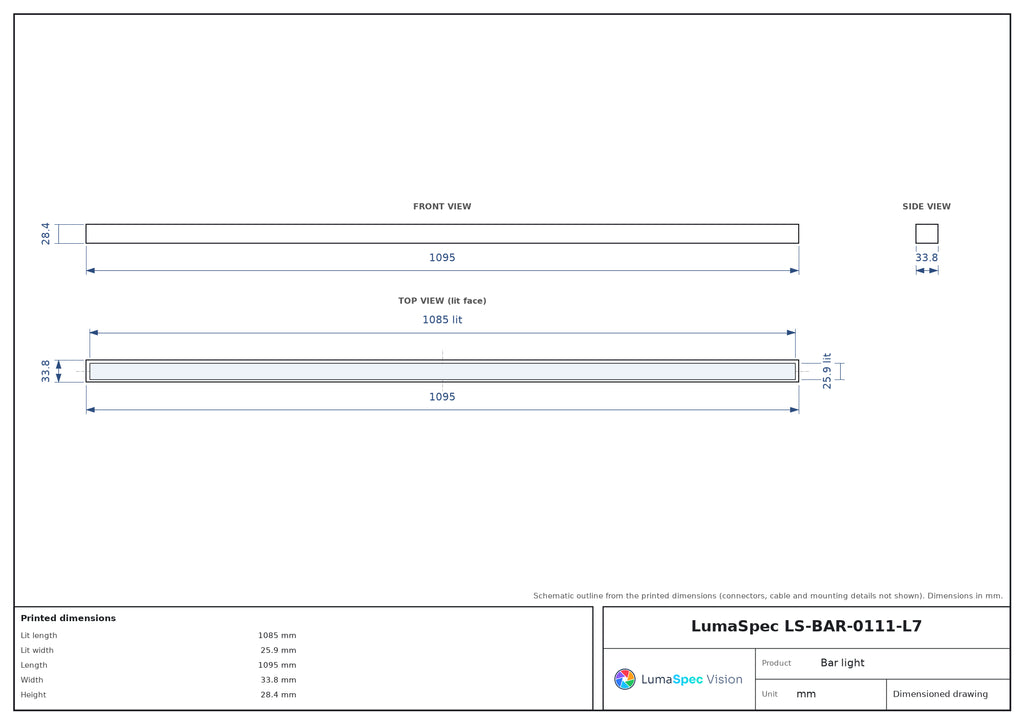

Mechanical

Lit length (mm)	1085
Lit width (mm)	25.9
Length (mm)	1095
Width (mm)	33.8
Height (mm)	28.4
Housing	Aluminum
Mounting	Through Holes

Other models in the Bar light series, 28.4 mm high, Flying Leads (S07) series

See all 16 models

Model	Size / key data	Price	Availability	Link
LS-BAR-0111-L1	170.7 x 25.9 mm	$629.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BAR-0111-L2	323.1 x 25.9 mm	$989.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BAR-0111-L3	475.5 x 25.9 mm	$1,449.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BAR-0111-L4	627.9 x 25.9 mm	$1,829.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BAR-0111-L5	780.3 x 25.9 mm	$2,299.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BAR-0111-L6	932.7 x 25.9 mm	$2,699.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BAR-0111-L8	1237 x 25.9 mm	$3,499.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BAR-0111-L9	1390 x 25.9 mm	$3,959.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BAR-0111-L10	1542 x 25.9 mm	$4,689.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BAR-0111-L11	1695 x 25.9 mm	$5,169.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BAR-0111-L12	1847 x 25.9 mm	$5,619.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BAR-0111-L13	1999 x 25.9 mm	$5,999.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BAR-0111-L14	2152 x 25.9 mm	$6,399.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BAR-0111-L15	2304 x 25.9 mm	$6,789.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BAR-0111-L16	2457 x 25.9 mm	$7,179.00 Quote	Built to order: ships in about 4-5 weeks	View
