Bar lights

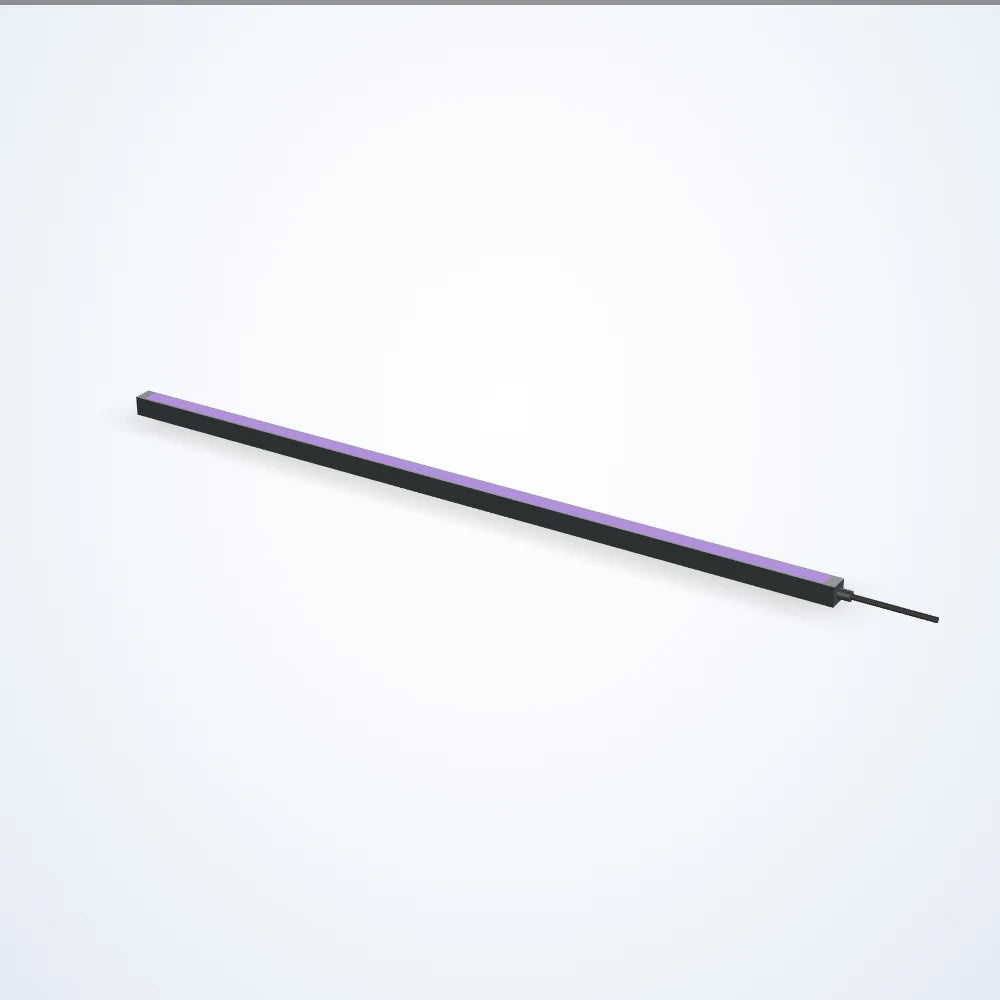

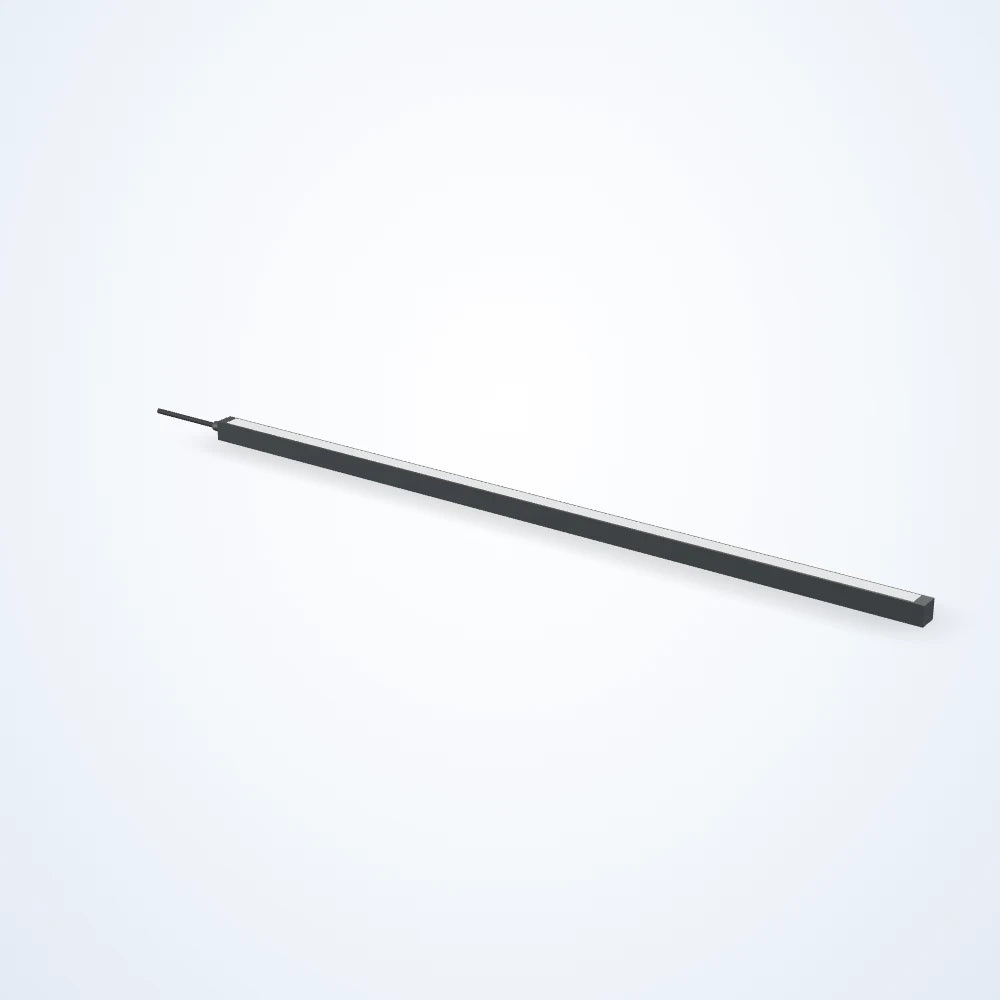

Bar light, 768.9 mm lit length (LS-BAR-0109-L10)
Model LS-BAR-0109-L10
- ColourUV
- Voltage24 VDC
- Angle20 Degree
- TypeStandard
from $5,039.00 USDQuote
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Choose a configuration 5 available
Configuration LS-BAR-0109-528 $5,039.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED bar light for directional, low-angle or angled illumination: edges, surface texture, engraving and label reading, mounted singly or in pairs and quads. Lit area 768.9 x 15 mm; 24 VDC supply; connection: flying leads. Choose colour below (5 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0109-L10 |
|---|---|
| Connection at light | Hardwired |
| Driver included | Included |
| Driver location | In Line |
| Intensity control | Analog Voltage |
| Operating modes | Constant On, Constant On – Dimmable, Overcurrent Strobe, Overcurrent Strobe - Dimmable |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Lens / beam angle | 20 Degree |
|---|---|
| Diffused | Not Diffused |
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| IP rating | IP50 |
| Compliance | CE, IEC 62471, RoHS |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | PNP Trigger |
| Max overcurrent strobe current | 8000 mA |
| Max overcurrent strobe input power | 150 W |
| Maximum constant on current (mA) | 62 |
| Maximum current (overcurrent strobe) (mA) | 8000 |
| Maximum input power constant on (W) | 1.5 |
| Maximum input power overcurrent strobe (W) | 150 |
| Maximum overcurrent strobe frequency (Hz) | 2000 |
| Maximum overcurrent strobe latency (µs) | 20 |
| NPN trigger voltage (V) | < 1 VDC |
| PNP trigger current (mA) | 5 |
| PNP trigger voltage (V) | 2.5-30 VDC |

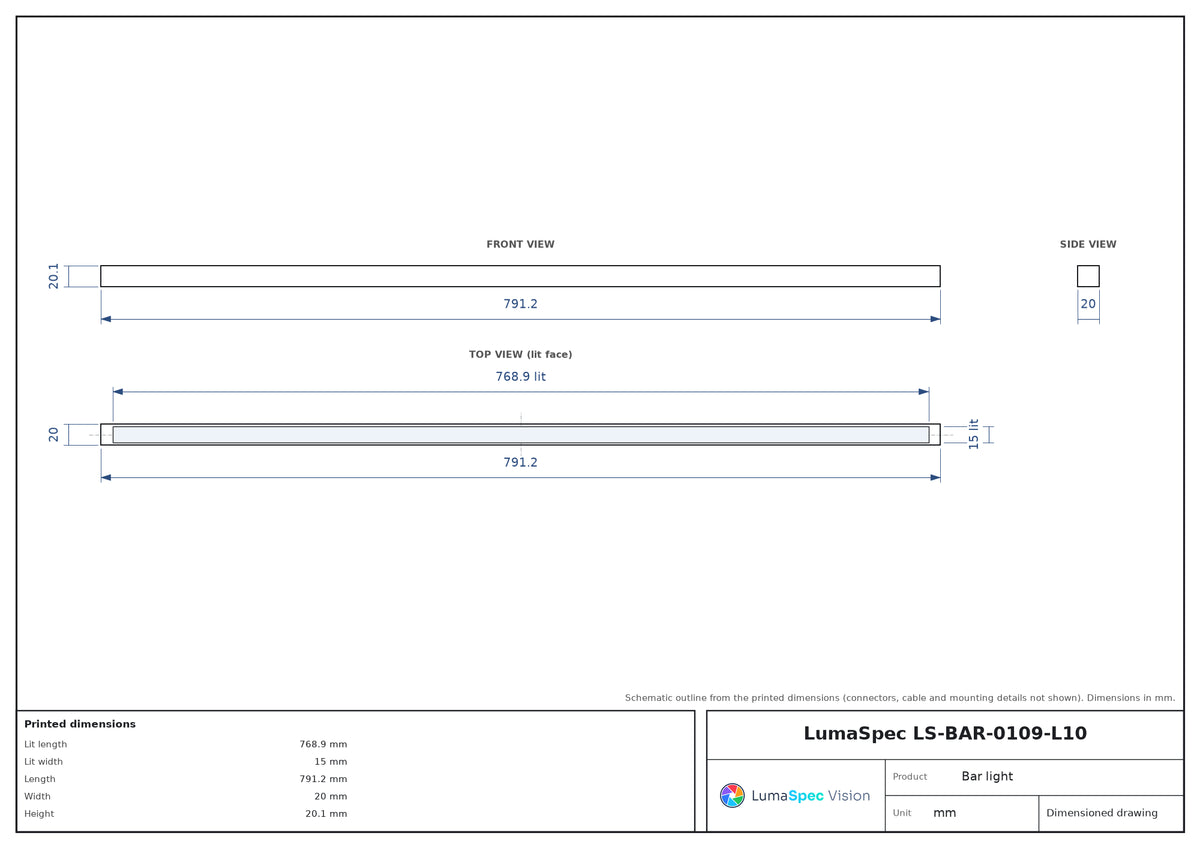

Mechanical
| Lit length (mm) | 768.9 |
|---|---|
| Lit width (mm) | 15 |
| Length (mm) | 791.2 |
| Width (mm) | 20 |
| Height (mm) | 20.1 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
Other models in the Bar light series, 20.1 mm high, Flying Leads series
See all 14 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BAR-0109-L1 | 83.1 x 15 mm | $509.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0109-L2 | 159.3 x 15 mm | $639.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0109-L3 | 235.5 x 15 mm | $819.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0109-L4 | 311.7 x 15 mm | $959.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0109-L5 | 387.9 x 15 mm | $1,129.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0109-L6 | 464.1 x 15 mm | $1,279.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0109-L7 | 540.3 x 15 mm | $1,439.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0109-L8 | 616.5 x 15 mm | $1,589.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0109-L9 | 692.7 x 15 mm | $1,929.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0109-L11 | 845.1 x 15 mm | $5,419.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0109-L12 | 921.3 x 15 mm | $5,799.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0109-L13 | 997.5 x 15 mm | $5,799.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0109-L14 | 1074 x 15 mm | $6,559.00 Quote | Built to order: ships in about 4-5 weeks | View |
