73 mm OD Multi-Angle AOI LED Ring Light (LS-AOI-73)
Model LS-AOI-73
- ColourRed, Green, Blue
- Voltage24 V
- TypeArc / multi-angle
- Power R4 W
$309.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.3 kg shipping weight
Volume pricing, Net 30 or a formal quote?

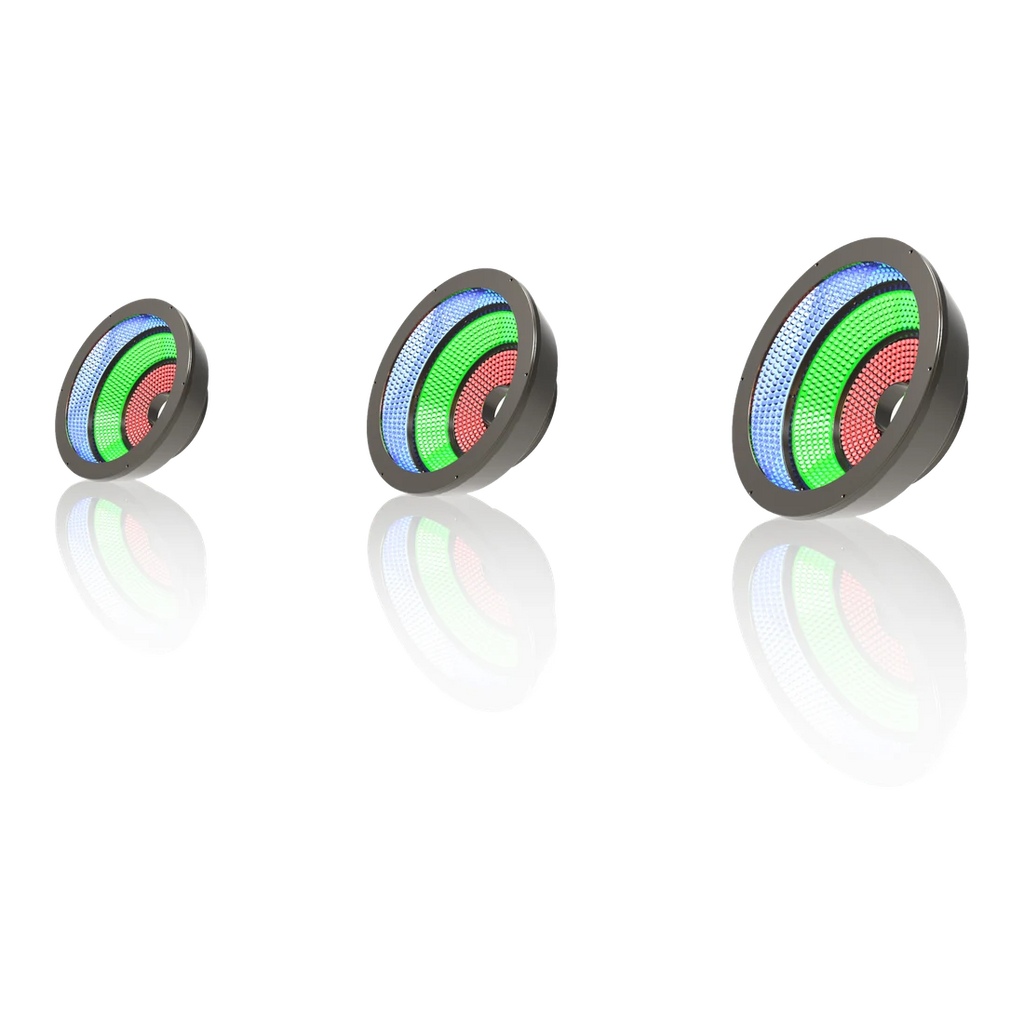

73 mm OD Multi-Angle AOI LED Ring Light. Multi-colour (red/green/blue), multi-angle tiered ring light for AOI that accurately highlights the surface texture and layer information of objects.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-AOI-73 |
|---|---|
| OD x ID x H (mm) | 73x8x25.8 |
| Model code | LS-AOI-<outer diameter>-<color>, e.g. LS-AOI-200-RGB |
Light
| Colours | Red, Green, Blue |
|---|---|
| Colors | R, G, B (power listed separately per colour) |
| Illumination chart | LS-AOI-73: illuminance (lx) vs working distance (mm); uniformity maps at LWD 20/40/60/80 mm (last two both labelled 'LWD=80mm' in the catalog) |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 4 |
| Power G (W) | 5 |
| Power B (W) | 6 |
Mechanical
| Shipping weight (estimated) | 0.30 kg |
|---|
Mounting and drawing data
drawing : drawn as LS-AOI-73-RGB: body φ73, rear φ49, length 25.8, ID φ8; 4-M2 mounting holes depth 3 on φ55 at 45°
