Cables

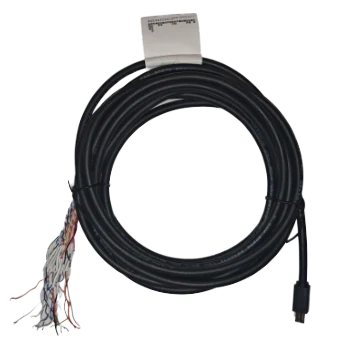

Frame Grabber I/O Cable, miniDP, Male to Open, 5 m (LS-ACP-MINIDP20M-OPEN-ST-EMC-5M)
Model LS-ACP-MINIDP20M-OPEN-ST-EMC-5M
- Length5 m
- End AminiDP, Male
- End BOpen
- Diameter7 mm
- Max. voltage30 VDC
- JacketPVC
$59.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.31 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Frame Grabber I/O Cable, miniDP, Male to Open, 5 m. Standard frame grabber I/O trigger cable (miniDP to open leads) for I/O trigger signal wiring on frame grabbers with miniDP connectors; shielded, available in multiple lengths
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-ACP-MINIDP20M-OPEN-ST-EMC-5M |
|---|---|
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | miniDP, Male |
|---|---|
| End B connector | Open |
| Cable diameter | 7 mm |
| Cable mechanical | 30AWG(7/0.10TA)x8P (HDPE insulation)+30AWG*4C+AB |
| Cable color | Black |
| Connector durability | >750 cycles |
| Applicable scenario | Static scenes |
Environment and compliance
| Working temperature | -20°C ~ 75°C |
|---|---|
| Certification | RoHS |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 5 m |
|---|---|
| Shipping weight (estimated) | 0.31 kg |
