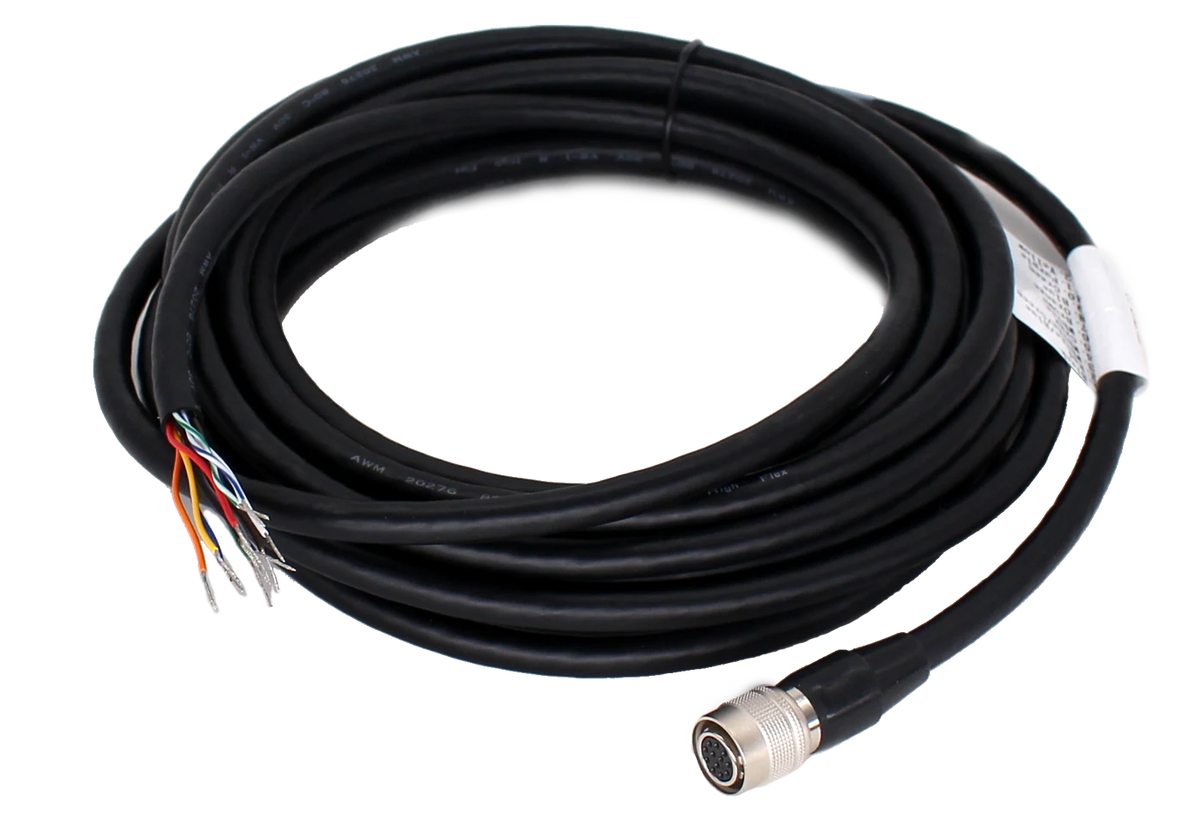

Camera Power and I/O Cable, P10 12-pin aerospace connector, female to Open, 5 m (LS-ACP-H12P-OPEN-HF-5M)
  • Camera Power and I/O Cable, P10 12-pin aerospace connector, female to Open, 5 m (LS-ACP-H12P-OPEN-HF-5M)
  • LS-ACP-H12P-OPEN-HF-5M dimensions (mm)

Cables

Camera Power and I/O Cable, P10 12-pin aerospace connector, female to Open, 5 m (LS-ACP-H12P-OPEN-HF-5M)

Model LS-ACP-H12P-OPEN-HF-5M

  • Length5 m
  • End AP10 12-pin aerospace connector, female
  • End BOpen
  • Diameter7.0 mm
  • Max. voltage30 VDC
  • JacketPVC
$59.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.31 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Camera Power and I/O Cable, P10 12-pin aerospace connector, female to Open, 5 m. The 12-pin P10 high-flex I/O & power cable can be used for camera power supply and I/O signal wiring, and it is available in various lengths.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-ACP-H12P-OPEN-HF-5M
JacketPVC
PackagingIndividual package

Interfaces and I/O

End A connectorP10 12-pin aerospace connector, female
End B connectorOpen
Cable diameter7.0 mm
Cable mechanical5P*26AWG+1P*24AWG+F+B
Cable colorBlack
Connector model12-Pin P10
Connector durability≥ 750 mating cycles
Applicable scenarioDrag chains

Environment and compliance

Working temperature–20 °C to 80 °C (–4 °F to 176 °F)
CertificationRoHS2.0, UL

Electrical

Max. voltage30 VDC

Mechanical

Length5 m
Min. bending radius84 mm
Max. U-type bending cycles≥ 5 million times
Shipping weight (estimated)0.31 kg
