Cables

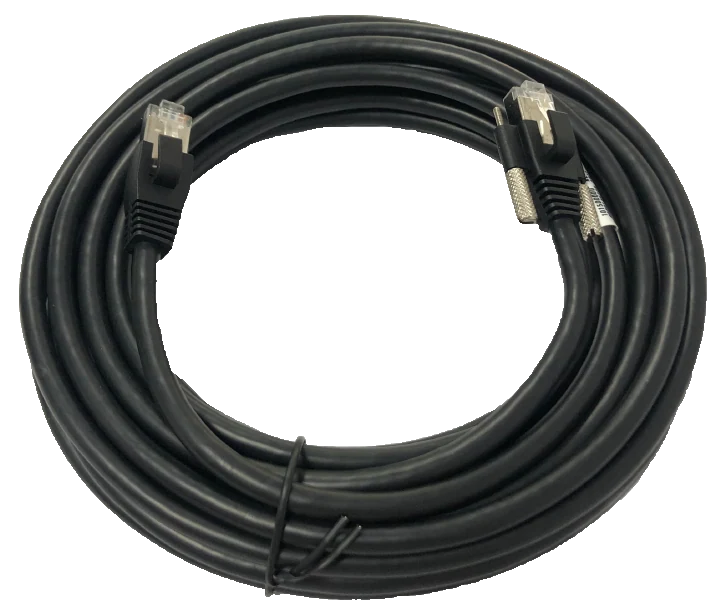

Camera Data Cable, RJ45 (with locking stud) to RJ45, 30 m, static use (LS-ACG-RJ45S-RJ45-ST-30M)
Model LS-ACG-RJ45S-RJ45-ST-30M
- Length30 m
- End ARJ45 (with locking stud)
- End BRJ45
- Diameter6.2 mm
- Max. voltage30 VDC
- JacketPVC
$119.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.31 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Camera Data Cable, RJ45 (with locking stud) to RJ45, 30 m. The RJ45 Standard Gigabit Ethernet Cable can be used for data transmission of RJ45 Gigabit Ethernet interface cameras, and is available in a variety of lengths.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-ACG-RJ45S-RJ45-ST-30M |
|---|---|
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | RJ45 (with locking stud) |
|---|---|
| End B connector | RJ45 |
| Cable diameter | 6.2 mm |
| Cable mechanical | 4P*26#+AB |
| Cable color | Black |
| Connector durability | ≥750 cycles |
| Applicable scenario | Static scenes |
Environment and compliance
| Working temperature | -20°C~ 75°C |
|---|---|
| Certification | RoHS2.0, UL |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 30 m |
|---|---|
| Min. bending radius | 74.4 mm |
| Shipping weight (estimated) | 0.31 kg |
