Cables

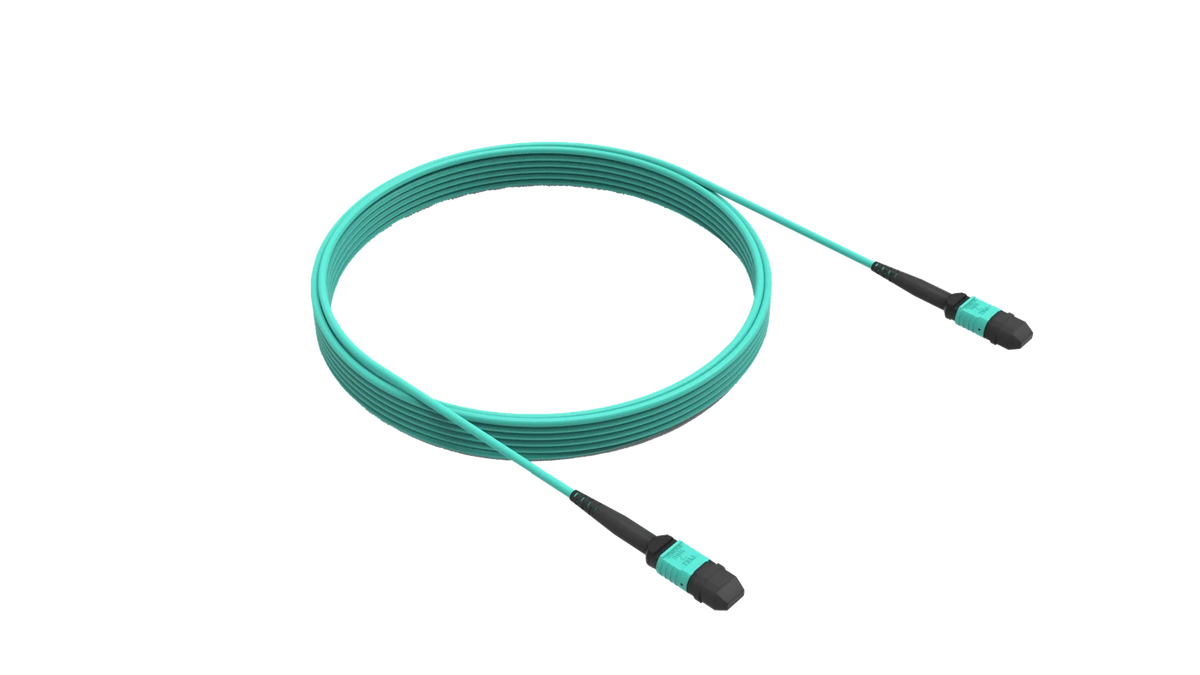

Camera Data Cable, MPO12 Female to MPO12 Female, 10 m (LS-AC100G-MPO-MPO-ST-10M)
Model LS-AC100G-MPO-MPO-ST-10M
- Length10 m
- End AMPO12 Female
- End BMPO12 Female
- Diameter3 mm
$49.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.31 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Camera Data Cable, MPO12 Female to MPO12 Female, 10 m. Standard QSFP28 fiber patch cable, 850/1300 nm center wavelength, multimode BI OM3, for MPO fiber data transmission in static applications
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-AC100G-MPO-MPO-ST-10M |
|---|---|
| Fiber type | BI OM3 multimode fiber |
| Insertion loss | ≤0.35 dB@850/1300 nm |
| Return loss | ≥25 dB@850/1300 nm |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | MPO12 Female |
|---|---|
| End B connector | MPO12 Female |
| Cable diameter | 3 mm |
| Cable color | Aqua |
| Connector durability | 1000 cycles |
| Applicable scenario | Static scenes |
Light
| Central wavelength | 850/1300 nm |
|---|
Environment and compliance
| Working temperature | -20°C~60°C |
|---|---|
| Certification | RoHS |

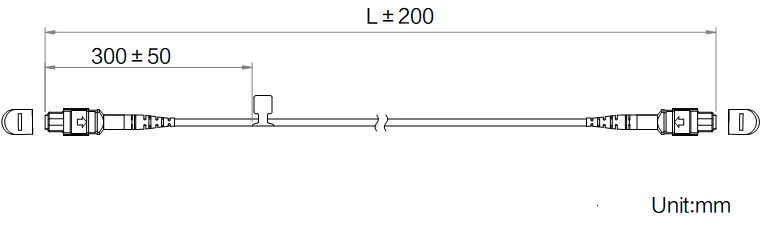

Mechanical
| Length | 10 m |
|---|---|
| Min. bending radius | 30 mm |
| Shipping weight (estimated) | 0.31 kg |
