Representative photo of this series
Backlights
Collimated back light, 44 x 44 x 19 mm (LS-4PFT3030)
Model LS-4PFT3030
- ColourRed, Blue, Green, White
- Emitting area30 x 30 mm
- SizeL44xW44xH19(mm)
- Voltage24V
- Power1.1W/1.1W
$79.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.2 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Special parallel film design, simple structure, high effect. Compact design, high efficiently use the eco-friendly material. Import ultrathin paste LED used, high luminance, high uniformity.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-4PFT3030 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|---|

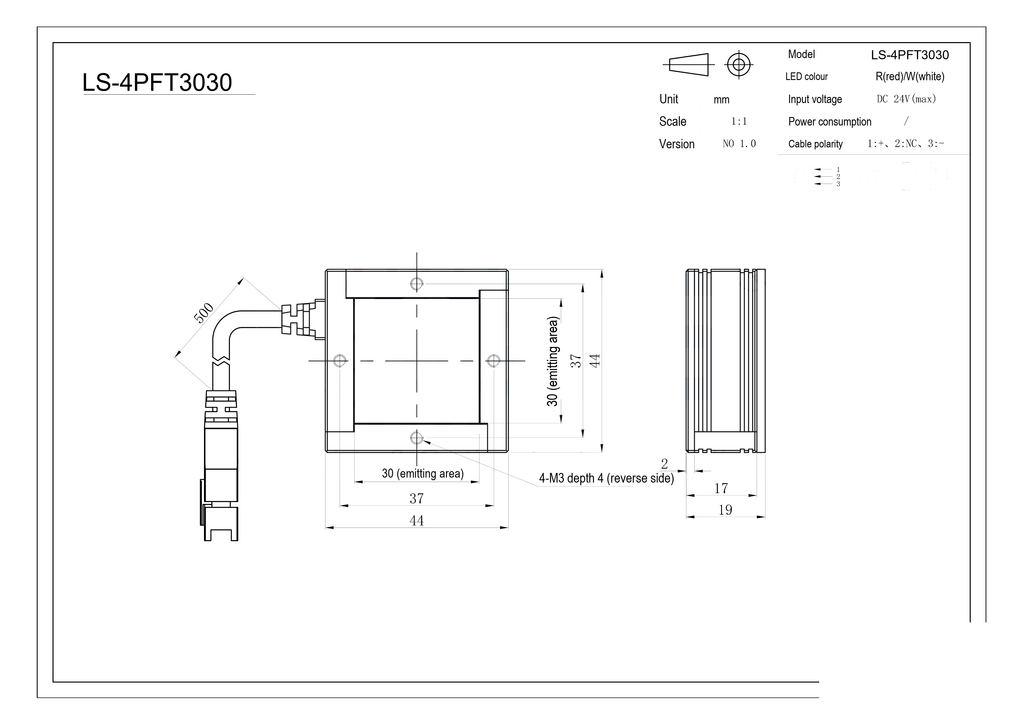

| Cable (mm) | 500 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 30 x 30 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 1.1W/1.1W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L44xW44xH19(mm) |
|---|---|
| Mounting holes | 4-M3 depth 4 (reverse side) |
| Shipping weight | 0.20 kg |
