Line scan lights
Natural cooling line scan light, 1040 x 50 x 95 mm (LS-4LINV1000)
Model LS-4LINV1000
- ColourWhite
- Emitting area1000 x 18 mm
- SizeL1040xW50xH95(mm)
- Voltage24V
- Power240W
$2,049.00
In stock - ships the same business day (2 available, order by 2 PM ET)
3.3 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Use high-standard LED design optics to achieve high uniformity and high brightness imaging effect. Dustproof and no fan design, suitable for dusty environments. Suitable for semiconductor, LCD manufacturing process and other applications, can achieve high-speed strobe mode.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-4LINV1000 |
|---|---|
| Cooling | Natural Cooling |
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: -, 3: NC, 4: NC |
|---|---|

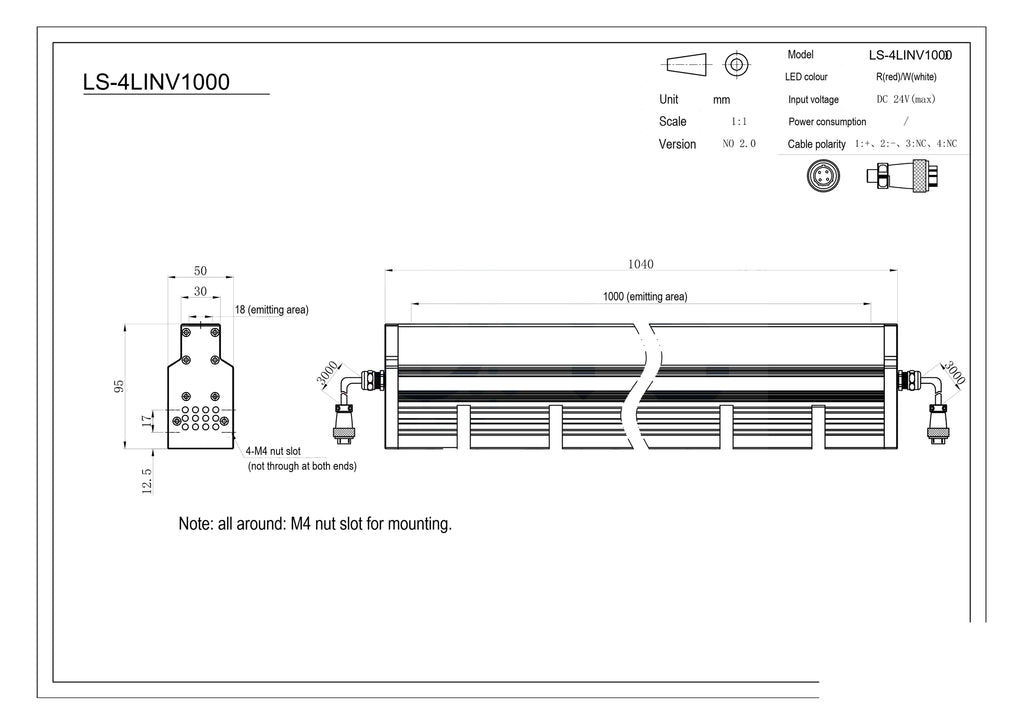

| Cable (mm) | 3000 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 1000 x 18 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 240W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L1040xW50xH95(mm) |
|---|---|
| Mounting holes | 4 x M4 nut slots |
| Mounting | M4 nut slots on all sides for mounting |
| Shipping weight | 3.30 kg |
