Line scan lights
Compact line scan light, 740 x 30 x 60 mm (LS-4LINL700)
Model LS-4LINL700
- ColourRed, Blue, Green, White
- Emitting area700 x 18 mm
- SizeL740xW30xH60(mm)
- Voltage24V
- Power75.6W
$1,489.00
In stock - ships the same business day (3 available, order by 2 PM ET)
1.55 kg shipping weight
Volume pricing, Net 30 or a formal quote?
High-brightness and uniform, with excellent parallelism. Compact in size, with a width of only 30mm and a height of 60mm. The dust removal detection effect is relatively good, natural cooling.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-4LINL700 |
|---|---|
| Cooling | Natural cooling |
| Note | UV & IR light can be customized as required. |
Interfaces and I/O

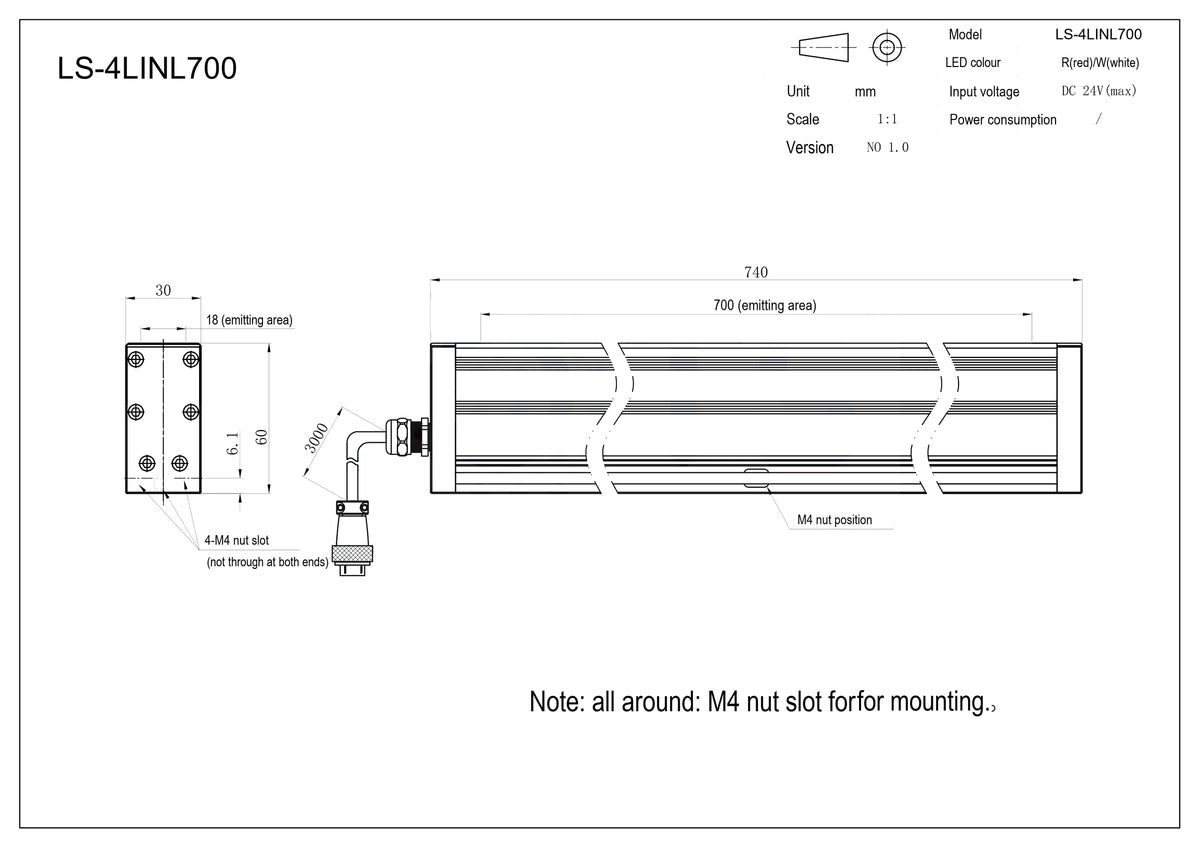

| Cable (mm) | 3000 (drawing) |
|---|
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 700 x 18 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 75.6W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L740xW30xH60(mm) |
|---|---|
| Mounting holes | 4 x M4 nut slots |
| Mounting | M4 nut slots on all sides for mounting |
| Shipping weight | 1.55 kg |
Other models in the Compact line scan light (4LINL) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-4LINL100 | Red, Blue, Green, White · 100 x 18 mm | $349.00 | 13 in stock | View |
| LS-4LINL200 | Red, Blue, Green, White · 200 x 18 mm | $539.00 | 16 in stock | View |
| LS-4LINL300 | Red, Blue, Green, White · 300 x 18 mm | $729.00 | 12 in stock | View |
| LS-4LINL400 | Red, Blue, Green, White · 400 x 18 mm | $919.00 | 14 in stock | View |
| LS-4LINL500 | Red, Blue, Green, White · 500 x 18 mm | $1,109.00 | 13 in stock | View |
| LS-4LINL600 | Red, Blue, Green, White · 600 x 18 mm | $1,299.00 | 16 in stock | View |
| LS-4LINL800 | Red, Blue, Green, White · 800 x 18 mm | $1,679.00 | 13 in stock | View |
| LS-4LINL900 | Red, Blue, Green, White · 900 x 18 mm | $1,869.00 | 14 in stock | View |
| LS-4LINL1000 | Red, Blue, Green, White · 1000 x 18 mm | $2,049.00 | 14 in stock | View |
