Representative photo of this series
Line scan lights
Natural cooling line scan light, 1040 x 48 x 75 mm (LS-4LIN1000)
Model LS-4LIN1000
- ColourRed, Blue, Green, White
- Emitting area1000 x 18 mm
- SizeL1040xW48xH75(mm)
- Voltage24V
- Power168W
$2,049.00
In stock - ships the same business day (4 available, order by 2 PM ET)
2.85 kg shipping weight
Volume pricing, Net 30 or a formal quote?
High uniformity & parallelism, perfectly match to line scan camera. Light weight, good heat dissipation, high brightness. High cost performance, compact size, suitable for batch use.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-4LIN1000 |
|---|---|
| Cooling | Natural Cooling |
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: -, 3: NC, 4: NC |
|---|---|

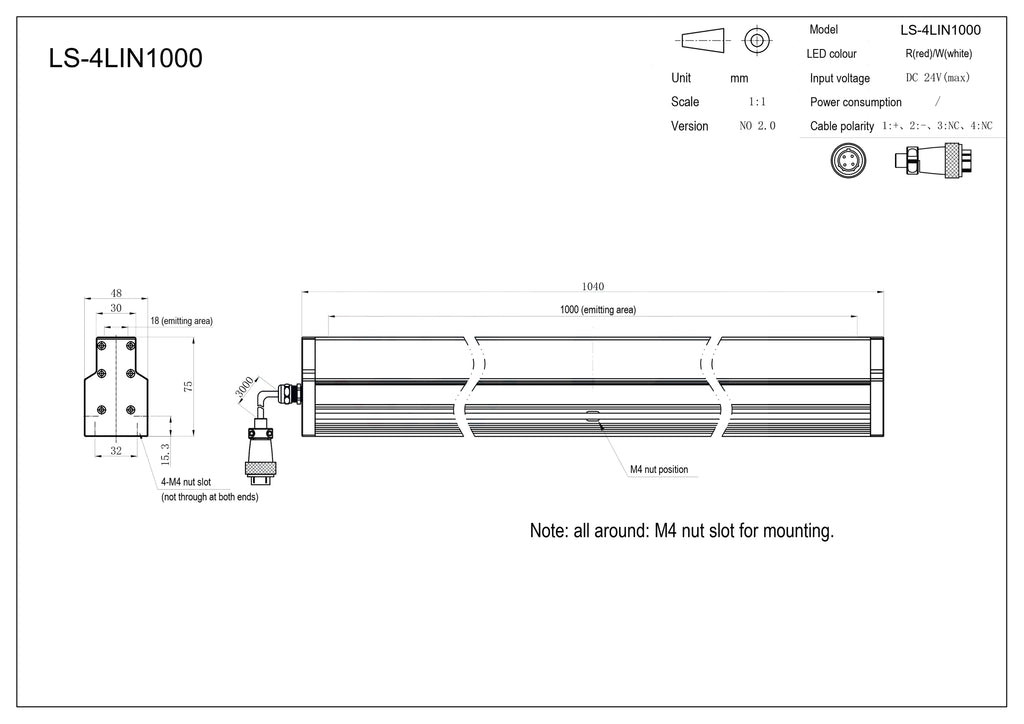

| Cable (mm) | 3000 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 1000 x 18 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 168W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L1040xW48xH75(mm) |
|---|---|
| Mounting holes | 4 x M4 nut slots |
| Mounting | M4 nut slots on all sides for mounting |
| Shipping weight | 2.85 kg |
Other models in the Natural cooling line scan light (4LIN) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-4LIN100 | Red, Blue, Green, White · 100 x 18 mm | $349.00 | 15 in stock | View |
| LS-4LIN200 | Red, Blue, Green, White · 200 x 18 mm | $539.00 | 17 in stock | View |
| LS-4LIN300 | Red, Blue, Green, White · 300 x 18 mm | $729.00 | 15 in stock | View |
| LS-4LIN400 | Red, Blue, Green, White · 400 x 18 mm | $919.00 | 13 in stock | View |
| LS-4LIN500 | Red, Blue, Green, White · 500 x 18 mm | $1,109.00 | 16 in stock | View |
| LS-4LIN600 | Red, Blue, Green, White · 600 x 18 mm | $1,299.00 | 12 in stock | View |
| LS-4LIN700 | Red, Blue, Green, White · 700 x 18 mm | $1,489.00 | 14 in stock | View |
| LS-4LIN800 | Red, Blue, Green, White · 800 x 18 mm | $1,679.00 | 14 in stock | View |
| LS-4LIN900 | Red, Blue, Green, White · 900 x 18 mm | $1,869.00 | 11 in stock | View |
