Backlights
Square back light with hole, 104 x 104 x 21 mm (LS-4FTB9090)
Model LS-4FTB9090
- ColourRed, Blue, Green, White
- Emitting area90 x 90 mm
- SizeL104xW104xH21(mm)
- Voltage24V
- Power5.9W/7.4W
$109.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.4 kg shipping weight
Volume pricing, Net 30 or a formal quote?
High-density LED distribute to the bottom of the light. High uniformity, high luminance. Diverse dimension for reference, used to various applications.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-4FTB9090 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 90 x 90 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 5.9W/7.4W |
| Input voltage | DC 24V (max) |

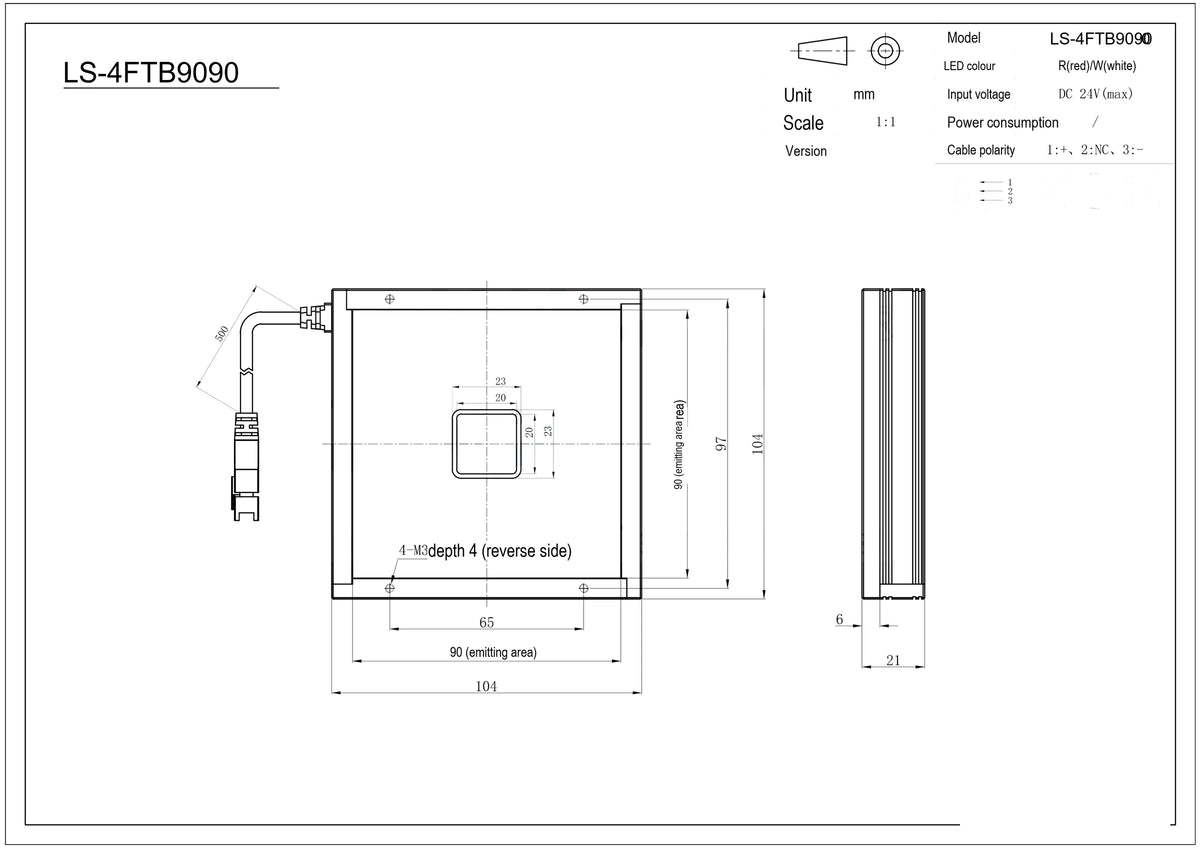

Mechanical
| Dimension | L104xW104xH21(mm) |
|---|---|
| Mounting holes | 4-M3 depth 4 (reverse side) |
| Shipping weight | 0.40 kg |
Other models in the Square back light with hole (4FTB) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-4FTB110110 | Red, Blue, Green, White · 110 x 110 mm | $129.00 | 9 in stock | View |
| LS-4FTB140140 | Red, Blue, Green, White · 140 mm | $149.00 | 13 in stock | View |
| LS-4FTB200100 | Red, Blue, Green, White · 200 x 100 mm | $149.00 | 13 in stock | View |
| LS-4FTB200180 | Red, Blue, Green, White · 200 x 180 mm | $219.00 | 17 in stock | View |
| LS-4FTB236186 | Red, Blue, Green, White · 236 x 186 mm | $239.00 | 12 in stock | View |
