Special lights
Natural light, 162 x 36 x 26 mm (LS-4BRS15030-NL)
Model LS-4BRS15030-NL
- Emitting area30 mm
- SizeL162xW36xH26(mm)
- Voltage24V
- Power6.5W
$369.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.35 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Natural light LEDs use a purple LED chip with red, green and blue phosphor, covering all visible wavelengths from purple to red; the spectrum is close to daylight and the colour rendering index (Ra) is above 95, so objects show their real colour.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-4BRS15030-NL |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|---|

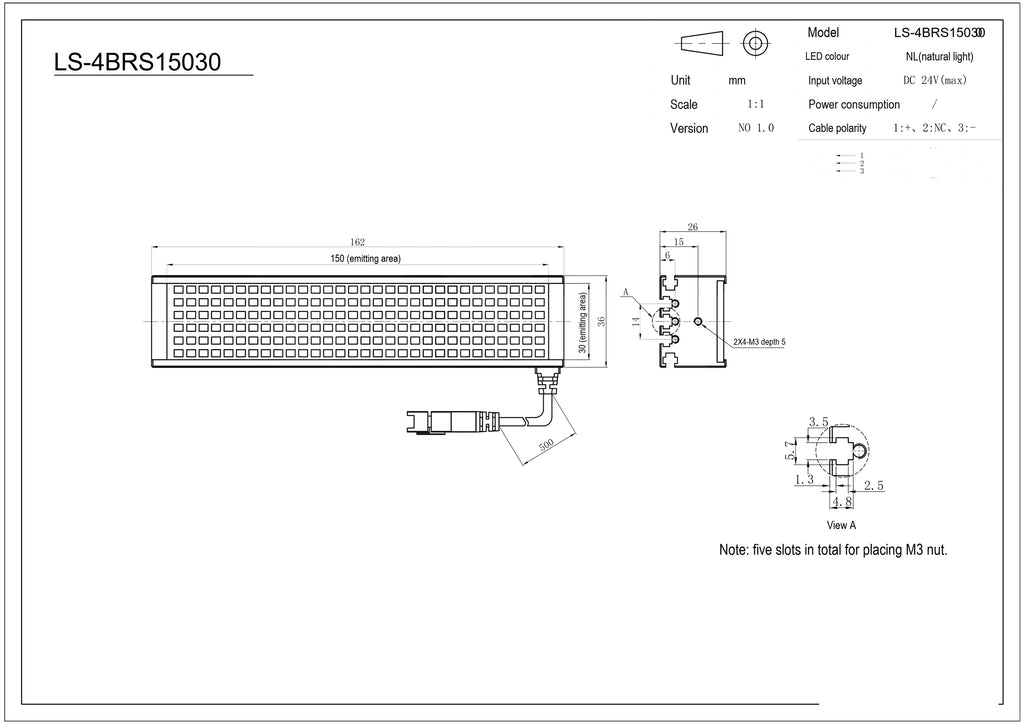

| Cable (mm) | 500 (drawing) |
Light
| LED colour | NL(natural light) |
|---|---|
| Emitting surface (mm) | 30 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 6.5W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L162xW36xH26(mm) |
|---|---|
| Mounting holes | 2×4-M3 depth 5 |
| Mounting | 5 slots for M3 nuts |
| Shipping weight | 0.35 kg |
