Representative photo of this series
Bar lights
High luminance bar light, 87 x 36 x 26 mm (LS-4BR7530)
Model LS-4BR7530
- ColourRed, Blue, Green, White
- Emitting area30 mm
- SizeL87xW36xH26(mm)
- Voltage24V
- Power3.3W/5.4W
$79.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.3 kg shipping weight
Volume pricing, Net 30 or a formal quote?
The shell is designed by aluminum alloy integrated molding; special heat transferring design; multi-option illumination angles and installation way; High-density LED arrays; can be used for a wide range of applications.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-4BR7530 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|---|

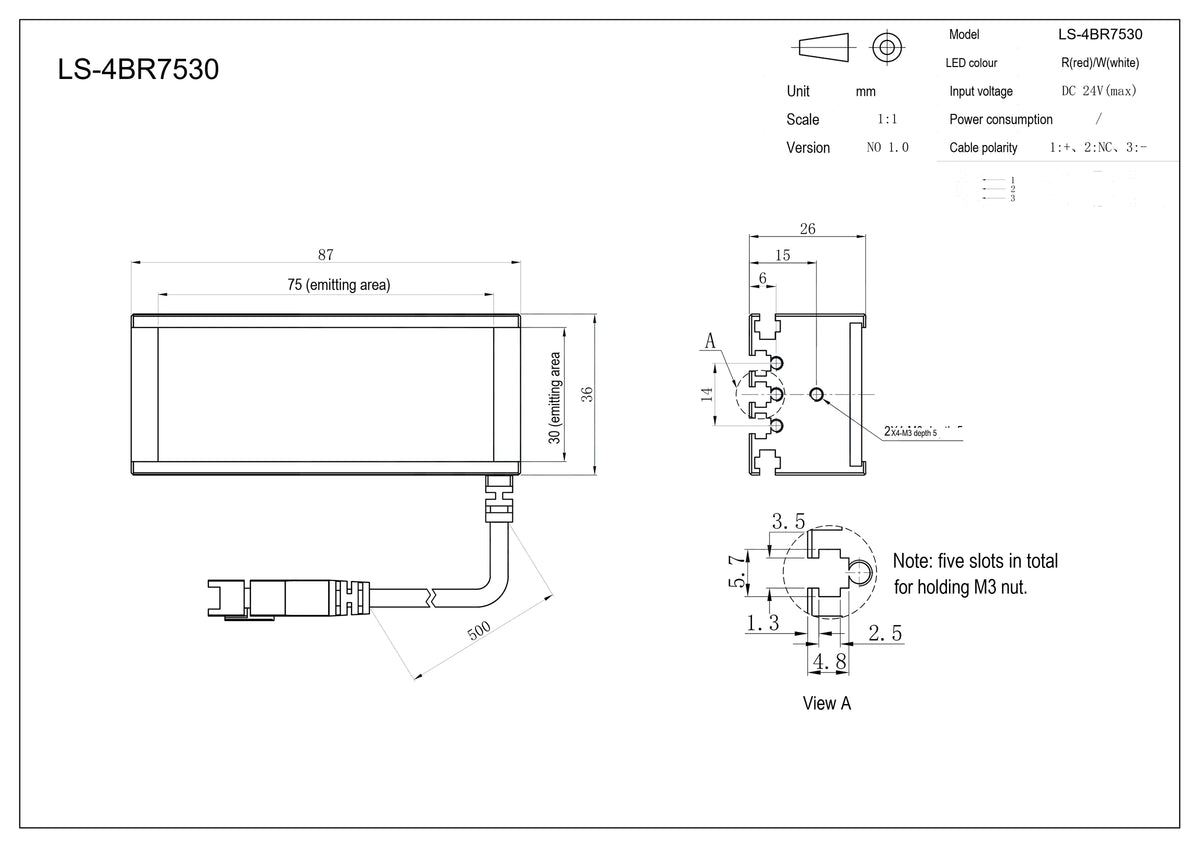

| Cable (mm) | 500 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 30 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 3.3W/5.4W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L87xW36xH26(mm) |
|---|---|
| Mounting holes | 2×4-M3 depth 5 |
| Shipping weight | 0.30 kg |
Other models in the High luminance bar light (4BR) series
See all 44 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-4BR3016 | Red, Blue, Green, White · 30 x 16 mm | $59.00 | 15 in stock | View |
| LS-4BR2530 | Red, Blue, Green, White · 30 mm | $59.00 | 14 in stock | View |
| LS-4BR3830 | Red, Blue, Green, White · 30 mm | $59.00 | 14 in stock | View |
| LS-4BR6016 | Red, Blue, Green, White · 60 x 16 mm | $69.00 | 16 in stock | View |
| LS-4BR5030 | Red, Blue, Green, White · 30 mm | $69.00 | 14 in stock | View |
| LS-4BR9016 | Red, Blue, Green, White · 90 x 16 mm | $89.00 | 12 in stock | View |
| LS-4BR10030 | Red, Blue, Green, White · 30 mm | $99.00 | 17 in stock | View |
| LS-4BR12016 | Red, Blue, Green, White · 120 x 16 mm | $109.00 | 11 in stock | View |
| LS-4BR12530 | Red, Blue, Green, White · 30 mm | $109.00 | 17 in stock | View |
| LS-4BR15016 | Red, Blue, Green, White · 150 x 16 mm | $119.00 | 14 in stock | View |
| LS-4BR15030 | Red, Blue, Green, White · 30 mm | $119.00 | 12 in stock | View |
| LS-4BR17530 | Red, Blue, Green, White · 30 mm | $129.00 | 11 in stock | View |
| LS-4BR18016 | Red, Blue, Green, White · 180 x 16 mm | $139.00 | 16 in stock | View |
| LS-4BR21016 | Red, Blue, Green, White · 210 x 16 mm | $149.00 | 10 in stock | View |
| LS-4BR20030 | Red, Blue, Green, White · 30 mm | $149.00 | 15 in stock | View |
| LS-4BR22530 | Red, Blue, Green, White · 30 mm | $159.00 | 15 in stock | View |
| LS-4BR24016 | Red, Blue, Green, White · 240 x 16 mm | $169.00 | 15 in stock | View |
| LS-4BR25030 | Red, Blue, Green, White · 30 mm | $169.00 | 13 in stock | View |
| LS-4BR27016 | Red, Blue, Green, White · 270 x 16 mm | $179.00 | 14 in stock | View |
| LS-4BR27530 | Red, Blue, Green, White · 30 mm | $189.00 | 11 in stock | View |
| LS-4BR30016 | Red, Blue, Green, White · 300 x 16 mm | $199.00 | 17 in stock | View |
| LS-4BR30030 | Red, Blue, Green, White · 30 mm | $199.00 | 15 in stock | View |
| LS-4BR32530 | Red, Blue, Green, White · 30 mm | $209.00 | 13 in stock | View |
| LS-4BR33016 | Red, Blue, Green, White · 330 x 16 mm | $219.00 | 14 in stock | View |
