Ring light (3RN) (LS-3RN5030)
  • Ring light (3RN) (LS-3RN5030)

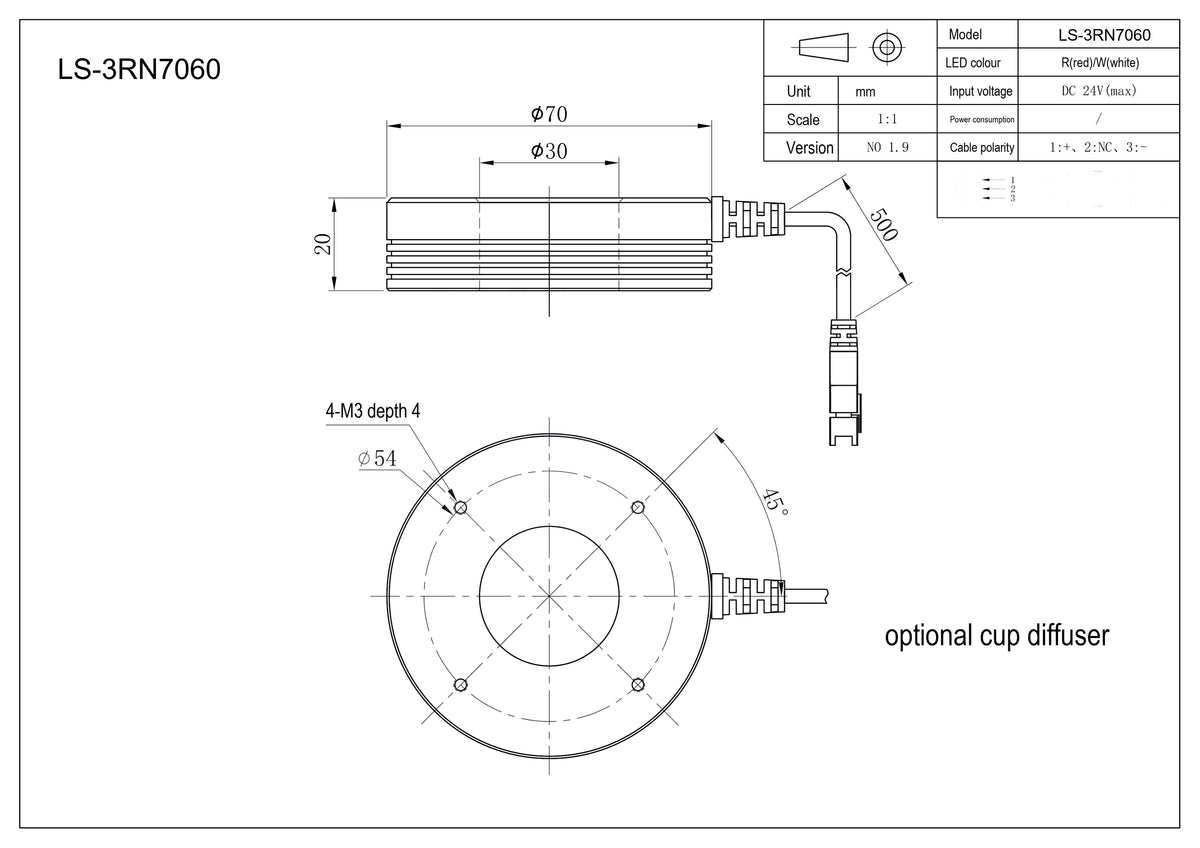

  • LS-3RN7060 dimensions (mm)

Representative photo of this series

Ring lights

Ring light (LS-3RN7060)

Model LS-3RN7060

  • ColourRed, Blue, Green, White
  • SizeOut dia. 70,Inner dia. 30,Height 20mm
  • Voltage24V
  • Power2.8W/3.7W
  • Angle60°
$119.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.5 kg shipping weight

Color

Volume pricing, Net 30 or a formal quote?

Ring light is made of high brightness LED array, easy to install, diffuser and multiple angle models can be optional.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-3RN7060
NoteUV & IR light can be customized as required.
Angle60°

Interfaces and I/O

Cable polarity1: +, 2: NC, 3: -
Cable (mm)500 (drawing)

Light

LED colourR(red)/W(white)
DiffuserCup-shaped diffuser optional

Electrical

Voltage24V
Power2.8W/3.7W
Input voltageDC 24V (max)

Mechanical

DimensionOut dia. 70,Inner dia. 30,Height 20mm
Mounting holes4-M3 depth 4
Shipping weight0.50 kg

Other models in the Ring light (3RN) series

See all 49 models
ModelSize / key dataPriceAvailabilityLink
LS-3RN5030 Red, Blue, Green, White · Out dia. 50,Inner dia. 25,Height 25mm $89.00 12 in stock View
LS-3RN5045 Red, Blue, Green, White · Out dia. 50,Inner dia. 17,Height 22mm $89.00 14 in stock View
LS-3RN5060 Red, Blue, Green, White · 24V $89.00 15 in stock View
LS-3RN5090 Red, Blue, Green, White · Out dia. 50,Inner dia. 25,Height 19mm $89.00 13 in stock View
LS-3RN5590 Red, Blue, Green, White · Out dia. 55,Inner dia. 24,Height 20mm $99.00 11 in stock View
LS-3RN6030 Red, Blue, Green, White · Out dia. 60,Inner dia. 35,Height 25mm $109.00 14 in stock View
LS-3RN6060 Red, Blue, Green, White · 24V $109.00 14 in stock View
LS-3RN7030 Red, Blue, Green, White · Out dia. 70,Inner dia. 33,Height 20mm $119.00 17 in stock View
LS-3RN7045 Red, Blue, Green, White · Out dia. 70,Inner dia. 38,Height 21mm $119.00 16 in stock View
LS-3RN6660 Red, Blue, Green, White · Out dia. 66,Inner dia. 35,Height 18mm $119.00 12 in stock View
LS-3RN6760 Red, Blue, Green, White · Out dia. 67,Inner dia. 36,Height 21mm $119.00 14 in stock View
LS-3RN7090 Red, Blue, Green, White · 24V $119.00 18 in stock View
LS-3RN7430 Red, Blue, Green, White · Out dia. 74,Inner dia. 40,Height 20mm $129.00 13 in stock View
LS-3RN7460 Red, Blue, Green, White · Out dia. 74,Inner dia. 35,Height 20mm $129.00 11 in stock View
LS-3RN9030 Red, Blue, Green, White · Out dia. 90,Inner dia. 51,Height 23mm $149.00 12 in stock View
LS-3RN9045 Red, Blue, Green, White · 24V $149.00 14 in stock View
LS-3RN9060 Red, Blue, Green, White · Out dia. 90,Inner dia. 40,Height 20mm $149.00 15 in stock View
LS-3RN9090 Red, Blue, Green, White · Out dia. 90,Inner dia. 40,Height 20mm $149.00 14 in stock View
LS-3RN10030 Red, Blue, Green, White · Out dia. 100,Inner dia. 66,Height 27mm $159.00 12 in stock View
LS-3RN10045 Red, Blue, Green, White · Out dia. 100,Inner dia. 60,Height 22mm $159.00 15 in stock View
LS-3RN10060 Red, Blue, Green, White · Out dia. 100,Inner dia. 50,Height 22mm $159.00 15 in stock View
LS-3RN10090 Red, Blue, Green, White · Out dia. 100,Inner dia. 40,Height 20mm $159.00 15 in stock View
LS-3RN11090 Red, Blue, Green, White · Out dia. 110,Inner dia. 70,Height 20mm $179.00 11 in stock View
LS-3RN12030 Red, Blue, Green, White · Out dia. 120,Inner dia. 80,Height 23mm $189.00 17 in stock View
