Representative photo of this series
Ring lights
Ring light (LS-3RN12045)
Model LS-3RN12045
- ColourRed, Blue, Green, White
- SizeOut dia. 120,Inner dia. 68,Height 30mm
- Voltage24V
- Power11.0W/13.7W
- Angle45°
$189.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.5 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Ring light is made of high brightness LED array, easy to install, diffuser and multiple angle models can be optional.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-3RN12045 |
|---|---|
| Note | UV & IR light can be customized as required. |
| Angle | 45° |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|---|

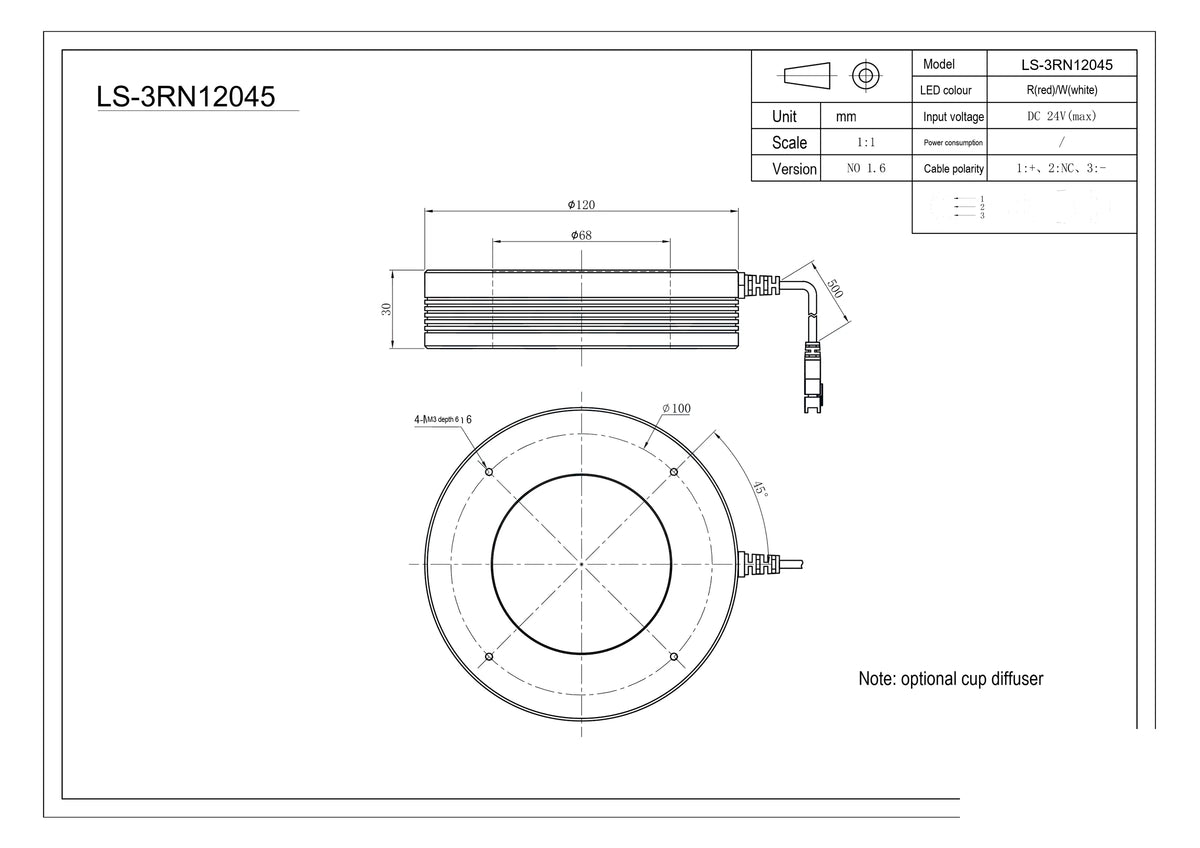

| Cable (mm) | 500 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Diffuser | Cup-shaped diffuser optional |
Electrical
| Voltage | 24V |
|---|---|
| Power | 11.0W/13.7W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | Out dia. 120,Inner dia. 68,Height 30mm |
|---|---|
| Mounting holes | 4-M3 depth 6 |
| Shipping weight | 0.50 kg |
Other models in the Ring light (3RN) series
See all 49 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-3RN7430 | Red, Blue, Green, White · Out dia. 74,Inner dia. 40,Height 20mm | $129.00 | 13 in stock | View |
| LS-3RN7460 | Red, Blue, Green, White · Out dia. 74,Inner dia. 35,Height 20mm | $129.00 | 11 in stock | View |
| LS-3RN9030 | Red, Blue, Green, White · Out dia. 90,Inner dia. 51,Height 23mm | $149.00 | 12 in stock | View |
| LS-3RN9045 | Red, Blue, Green, White · 24V | $149.00 | 14 in stock | View |
| LS-3RN9060 | Red, Blue, Green, White · Out dia. 90,Inner dia. 40,Height 20mm | $149.00 | 15 in stock | View |
| LS-3RN9090 | Red, Blue, Green, White · Out dia. 90,Inner dia. 40,Height 20mm | $149.00 | 14 in stock | View |
| LS-3RN10030 | Red, Blue, Green, White · Out dia. 100,Inner dia. 66,Height 27mm | $159.00 | 12 in stock | View |
| LS-3RN10045 | Red, Blue, Green, White · Out dia. 100,Inner dia. 60,Height 22mm | $159.00 | 15 in stock | View |
| LS-3RN10060 | Red, Blue, Green, White · Out dia. 100,Inner dia. 50,Height 22mm | $159.00 | 15 in stock | View |
| LS-3RN10090 | Red, Blue, Green, White · Out dia. 100,Inner dia. 40,Height 20mm | $159.00 | 15 in stock | View |
| LS-3RN11090 | Red, Blue, Green, White · Out dia. 110,Inner dia. 70,Height 20mm | $179.00 | 11 in stock | View |
| LS-3RN12030 | Red, Blue, Green, White · Out dia. 120,Inner dia. 80,Height 23mm | $189.00 | 17 in stock | View |
| LS-3RN12060 | Red, Blue, Green, White · Out dia. 120,Inner dia. 60,Height 25mm | $189.00 | 15 in stock | View |
| LS-3RN12090 | Red, Blue, Green, White · Out dia. 120,Inner dia. 50,Height 18mm | $189.00 | 14 in stock | View |
| LS-3RN13590 | Red, Blue, Green, White · Out dia. 135,Inner dia. 87,Height 20mm | $209.00 | 16 in stock | View |
| LS-3RN15030 | Red, Blue, Green, White · 24V | $229.00 | 16 in stock | View |
| LS-3RN15045 | Red, Blue, Green, White · 24V | $229.00 | 17 in stock | View |
| LS-3RN15060 | Red, Blue, Green, White · 24V | $229.00 | 16 in stock | View |
| LS-3RN15090 | Red, Blue, Green, White · 24V | $229.00 | 15 in stock | View |
| LS-3RN16590 | Red, Blue, Green, White · 24V | $249.00 | 19 in stock | View |
| LS-3RN18030 | Red, Blue, Green, White · 24V | $269.00 | 14 in stock | View |
| LS-3RN18045 | Red, Blue, Green, White · 24V | $269.00 | 14 in stock | View |
| LS-3RN18060 | Red, Blue, Green, White · 24V | $269.00 | 13 in stock | View |
| LS-3RN20030 | Red, Blue, Green, White · 24V | $299.00 | 12 in stock | View |
