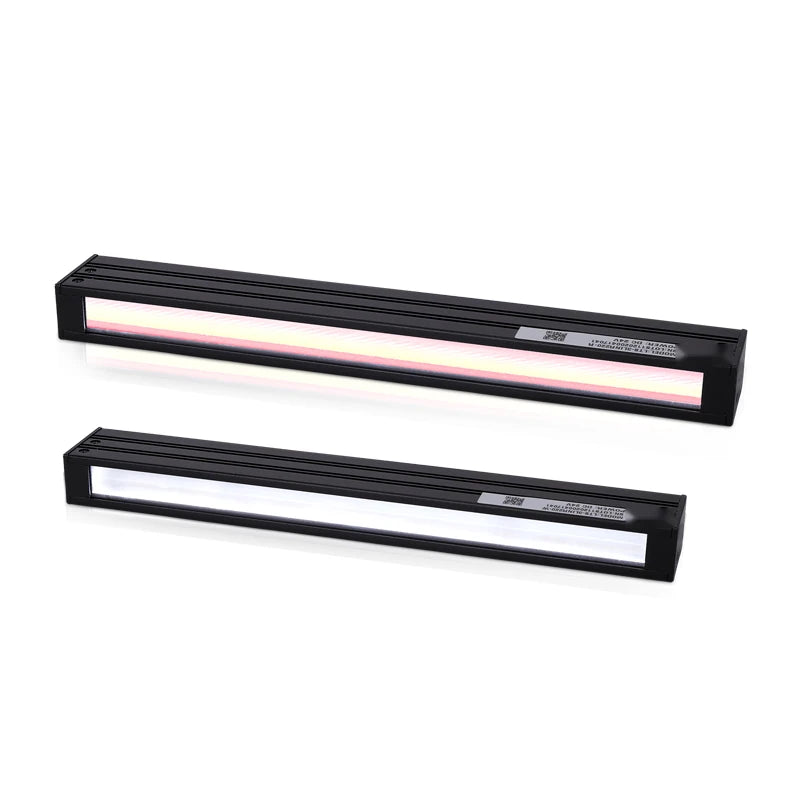

Representative photo of this series
Line scan lights
Mini line scan light, 80 x 20 x 30 mm (LS-3LINR80)
Model LS-3LINR80
- ColourRed, Green, Blue, White
- Emitting area60 x 13 mm
- SizeL80xW20xH30(mm)
- Voltage24V
- Power3.6W/4.4W
$239.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.25 kg shipping weight
Volume pricing, Net 30 or a formal quote?
High brightness up to 2 million illumination, can add optical film to improve uniformity, adapted to circuit board surface and battery coating inspection.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-3LINR80 |
|---|---|
| Cooling | Natural cooling |
| Note | UV & IR light can be customized as required. |
Interfaces and I/O

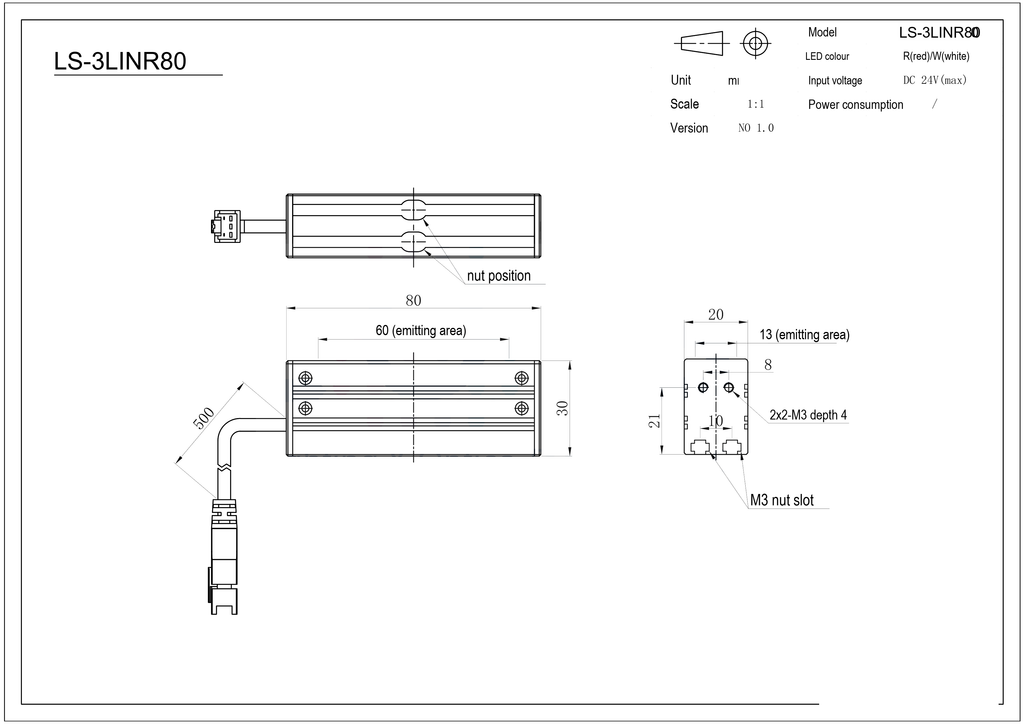

| Cable (mm) | 500 (drawing) |
|---|
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 60 x 13 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 3.6W/4.4W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L80xW20xH30(mm) |
|---|---|
| Mounting holes | 2×2-M3 depth 4 |
| Shipping weight | 0.25 kg |
Other models in the Mini line scan light (3LINR) series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-3LINR70 | Red, Green, Blue, White · 50 x 13 mm | $219.00 | 13 in stock | View |
| LS-3LINR120 | Red, Green, Blue, White · L120xW20xH30(mm) | $319.00 | 17 in stock | View |
| LS-3LINR220 | Red, Green, Blue, White · L220xW20xH30(mm) | $499.00 | 13 in stock | View |
| LS-3LINR320 | Red, Green, Blue, White · L320xW20xH30(mm) | $689.00 | 17 in stock | View |
| LS-3LINR420 | Red, Green, Blue, White · L420xW20xH30(mm) | $879.00 | 10 in stock | View |
| LS-3LINR520 | Red, Green, Blue, White · L520xW20xH30(mm) | $1,069.00 | 11 in stock | View |
