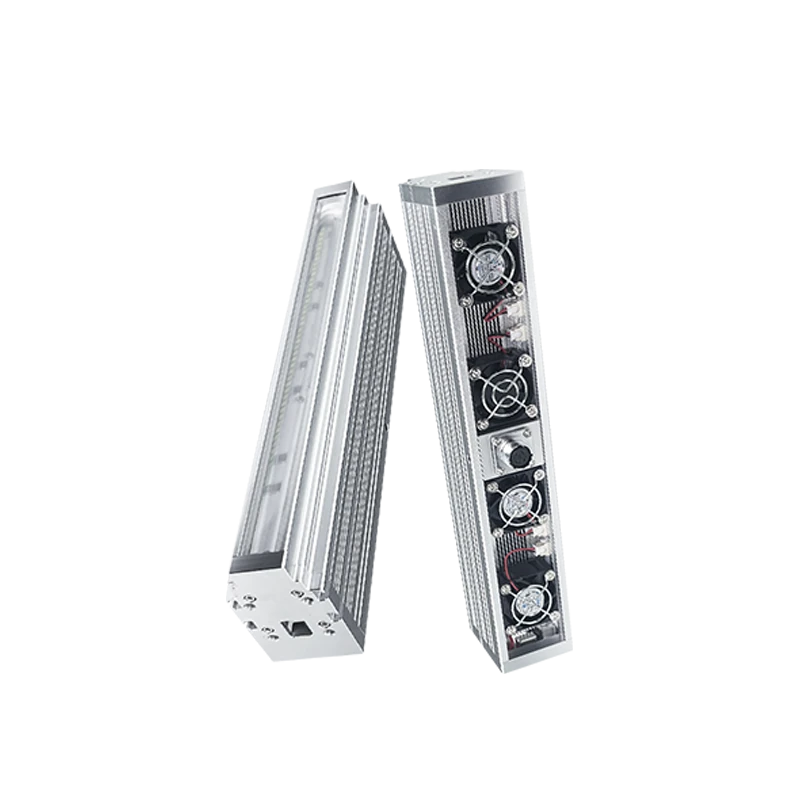

900 x 22 mm Line scan light (LS-3LI90022)
Model LS-3LI90022
- ColourRed, Blue, White
- Voltage24 V
- ConnectorWS20 4-pin
- Luminous width22 mm
$1,789.00
In stock - ships the same business day (2 available, order by 2 PM ET)
6.15 kg shipping weight
Volume pricing, Net 30 or a formal quote?
High-brightness line scan light, fan cooled, with luminous lengths from 75 to 2400 mm (22 mm wide); 24 V up to 1125 mm and 48 V for longer lengths, with WS16/WS20 aviation plugs.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-3LI90022 |
|---|---|
| Cross-section | 54 x 102.5 mm |
| Category | Line scan light |
| Terminal Plug | WS20 four-core aviation plug |
| Cooling | Natural air cooling |
| Electrical insulation capacity | DC500V resistance>20 megohms |
| Pressure Resistance Requirements | AC1000V 10mA/5S |
| Flammability Rating | IEC60707 |
| Value-added Services | One year free technical support |
| Long (mm) | 920 |
| Wide (mm) | 54 |
| High (mm) | 102.5 |
| Plug specification | WS20 aviation plug 4-core |
Interfaces and I/O
| Mating cable | 3m WS2 0 four-core cable |
|---|---|
| Connector Definition | 1: LED (+) red ; 3:LED(-) black; 2:FAN(+)blue; 4:FAN(-)green |
| Mating cable (optional) | 3m / 5m WS20 four-core cable |
Light
| Luminous width | 22 mm |
|---|---|
| LED type | SMD |
| Color | red/white/blue |
| Wavelength | red: 620-635nm; white: -; blue: 465-470nm |
| Color temperature | red: -; white: 6000-7000K; blue |
| Luminance | red: 450000LUX; white: 1500000LUX; blue: 33000LUX |
| Brightness Controller (optional) | DigitalController |
| Luminous size (mm) | 900x22 |
Environment and compliance
| Operating Temperature and Humidity | Temperature : 0 to 50ºC, Humidity : 20 to 85% RH(non-condensing) |
|---|---|
| Lifespan | Under our specified conditions of use,50,000 hours for red light and 30,000 hours for white light,the brightness is red uced to 50% of the factory value |
Electrical
| Power cord | Selective assembly (optional) |
|---|---|
| Power tolerance | actual product power within ±10% of the table is the normal range |
| Voltage (V) | 24 |
| Power red (W) | 240 |
| Power blue/white (W) | 372 |
Mechanical
| Shell material | Aluminum Alloy (Oxidative blackened surface) |
|---|---|
| Shell Hardness Parameters | Static load230N±10N, time 5 minutes Contact area:diameter 30MM Energylevel:5J Elements:steel ball diameter 50MM, 500g±25g |
| Weight (kg) | 5.2 |
