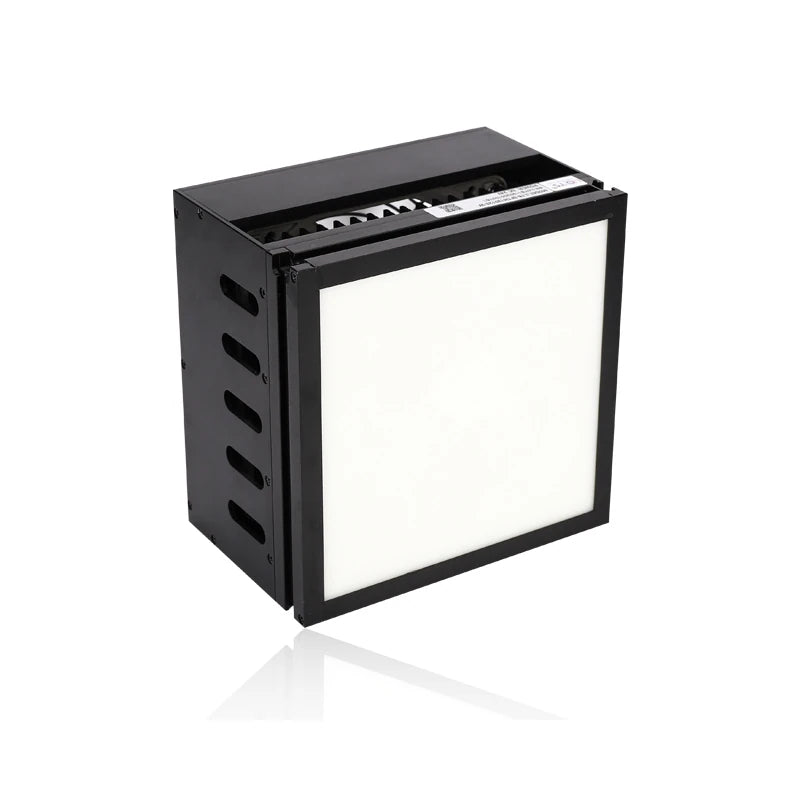

Representative photo of this series
Backlights
Ultra brightness back light, 105 x 105 x 96.52 mm (LS-3FTH8888)
Model LS-3FTH8888
- Emitting area88 x 88 mm
- SizeL105xW105xH96.52(mm)
- Voltage24V
- Power57.6W/72.0W
$109.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.8 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Luminance 800,000 to 2,000,000 lux. Can be used as constant on or strobing. Used for short exposure time and high speed shooting.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-3FTH8888 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: -, 3: FAN+, 4: FAN- |
|---|
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 88 x 88 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 57.6W/72.0W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L105xW105xH96.52(mm) |
|---|---|
| Shipping weight | 0.80 kg |
Other models in the Ultra brightness back light (3FTH) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-3FTH100100 | 100 x 100 mm · L131xW117xH96.52(mm) | $119.00 | 5 in stock | View |
| LS-3FTH120120 | 120 x 120 mm · L151xW137xH96.52(mm) | $139.00 | 2 in stock | View |
| LS-3FTH150150 | 150 x 150 mm · L181xW167xH98.52(mm) | $169.00 | 3 in stock | View |
