Representative photo of this series
Backlights
High luminance back light, 1260 x 721 x 53 mm (LS-3FT1210680)
Model LS-3FT1210680
- ColourRed, Blue, Green, White
- Emitting area1210 x 680 mm
- SizeL1260xW721xH53(mm)
- Voltage48V
- Power381W/479W
$3,219.00
In stock - ships the same business day (4 available, order by 2 PM ET)
20.65 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Adopting lightweight design, the new back light 2FT series completely change the old and heavy image. The installation groove can be used as a heat sink, which not only can lighten the weight, but also increase the brightness and installation flexibility. Besides, the use of imported ultra-thin chip LEDs can effectively improve the brightness and uniformity.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-3FT1210680 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: -, 3: NC, 4: NC |
|---|
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 1210 x 680 |
Electrical
| Voltage | 48V |
|---|---|
| Power | 381W/479W |
| Input voltage | DC 48V (max) |
Mechanical

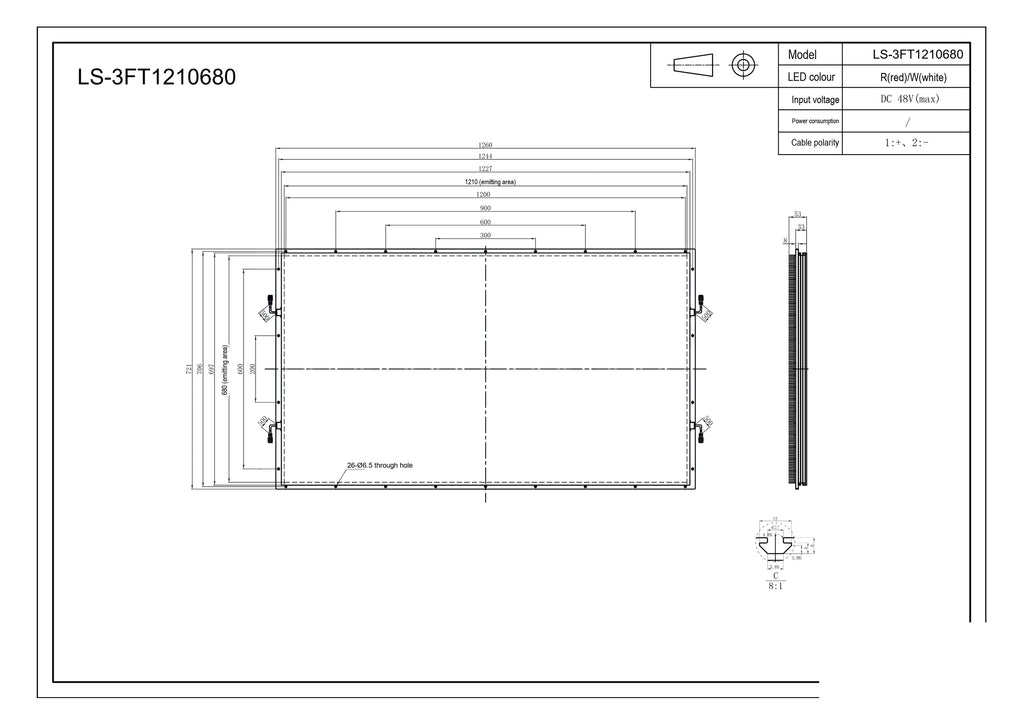

| Dimension | L1260xW721xH53(mm) |
|---|---|
| Mounting holes | 30-M3 depth 4 (reverse side) |
| Shipping weight | 20.65 kg |
Other models in the High luminance back light (3FT) series
See all 15 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-3FT5050 | Red, Blue, Green, White · 50 x 50 mm | $89.00 | 17 in stock | View |
| LS-3FT6060 | Red, Blue, Green, White · 60 x 60 mm | $89.00 | 14 in stock | View |
| LS-3FT7070 | Red, Blue, Green, White · 70 x 70 mm | $99.00 | 13 in stock | View |
| LS-3FT8080 | Red, Blue, Green, White · 80 x 80 mm | $99.00 | 15 in stock | View |
| LS-3FT100100 | Red, Blue, Green, White · 100 x 100 mm | $119.00 | 11 in stock | View |
| LS-3FT110110 | Red, Blue, Green, White · 110 x 110 mm | $119.00 | 11 in stock | View |
| LS-3FT120120 | Red, Blue, Green, White · 120 x 120 mm | $129.00 | 13 in stock | View |
| LS-3FT130130 | Red, Blue, Green, White · 130 x 130 mm | $139.00 | 16 in stock | View |
| LS-3FT150150 | Red, Blue, Green, White · 150 x 150 mm | $159.00 | 14 in stock | View |
| LS-3FT230230 | Red, Blue, Green, White · L247xW247xH25(mm) | $269.00 | 18 in stock | View |
| LS-3FT400400 | Red, Blue, Green, White · 400 x 400 mm | $659.00 | 15 in stock | View |
| LS-3FT420420 | Red, Blue, Green, White · 420 x 420 mm | $719.00 | 15 in stock | View |
| LS-3FT1763183 | Red, Blue, Green, White · 1763 x 183 mm | $1,249.00 | 15 in stock | View |
| LS-3FT905703 | Red, Blue, Green, White · 905 x 703 mm | $2,439.00 | 14 in stock | View |
