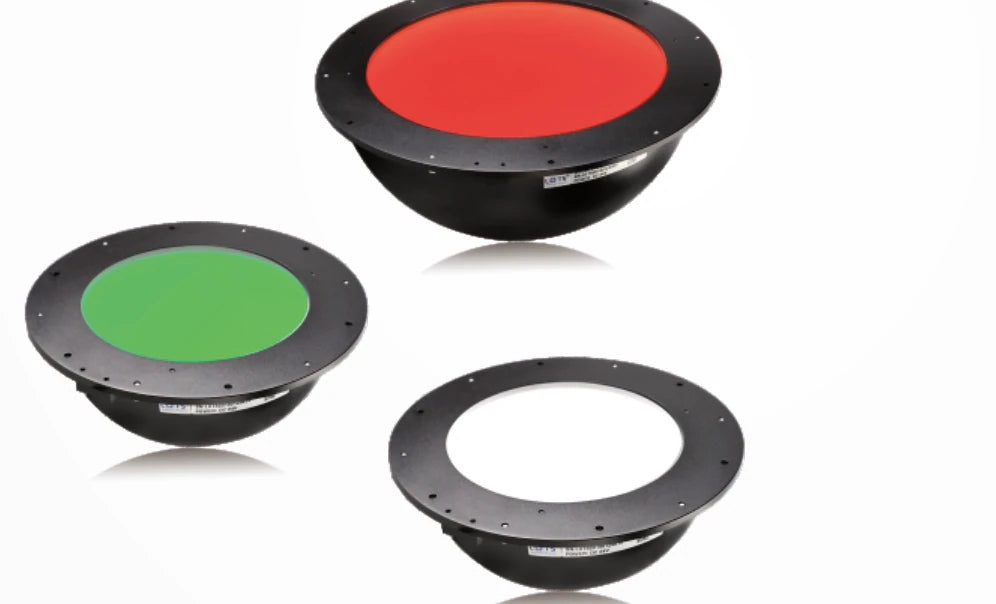

Representative photo of this series
Dome lights
138 mm Dome shadowless light, power 12.5 W (LS-3DM198)
Model LS-3DM198
- ColourRed, Green, Blue, White
- Emitting area138 mm
- Voltage24 V
- Power37.5W/47.6W
$319.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.65 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Dome shadowless light (new) with high uniformity and a large emitting area; lightweight design with high luminance, frame-fixed construction for more uniform stress and long-term reliability; flexible outline can be customized.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-3DM198 |
|---|---|
| FOV | 1~150 mm |
| Note | UV & IR light can be customized as required. |
Optics
| Recommended working distance | 5~50 mm |
|---|
Interfaces and I/O
| Cable length | 500 mm |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines) |
| Cable polarity | 1: +, 2: NC, 3: - |
Light
| Colour temperature of white | 6600 K |
|---|---|
| Emitting surface dia. (mm) | 138 |
| LED colour | R(red)/W(white) |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory default luminance) |
Electrical
| Voltage | 24 V |
|---|---|
| Adapted controllers | Strobe controller, analog controller, digital controller |
| Power (R) | 12.5W |
| Power (G/B/W) | 21.2W |
| Power | 37.5W/47.6W |
| Input voltage | DC 24V (max) |
Mechanical
| Min. diameter | dia. 116 |
|---|---|
| Max. diameter | dia. 260 |
| Weight | 394 g |
| Dimension | Outer dia. 198mm,Inner dia. 40mm,Height 87.96mm |
