Representative photo of this series
Coaxial lights
120 x 120 mm Coaxial light (LS-3COX120)
Model LS-3COX120
- ColourRed, Green, Blue, White
- Emitting area120 x 120 mm
- SizeL154xW132xH130(mm)
- Voltage24 V
- Power34.6W/45.4W
$369.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.45 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Compact, cost-effective coaxial light with 50% higher luminance that effectively removes double images; cable has a protective wire jacket and a dust-proof mirror can be added.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-3COX120 |
|---|---|
| Customizable | viewport, length and width, parallel film, colour and colour temperature, combined light, cable length, installation method |
| Note | UV & IR light can be customized as required. |
| Viewport (camera hole) | 120 x 96 mm |
Interfaces and I/O

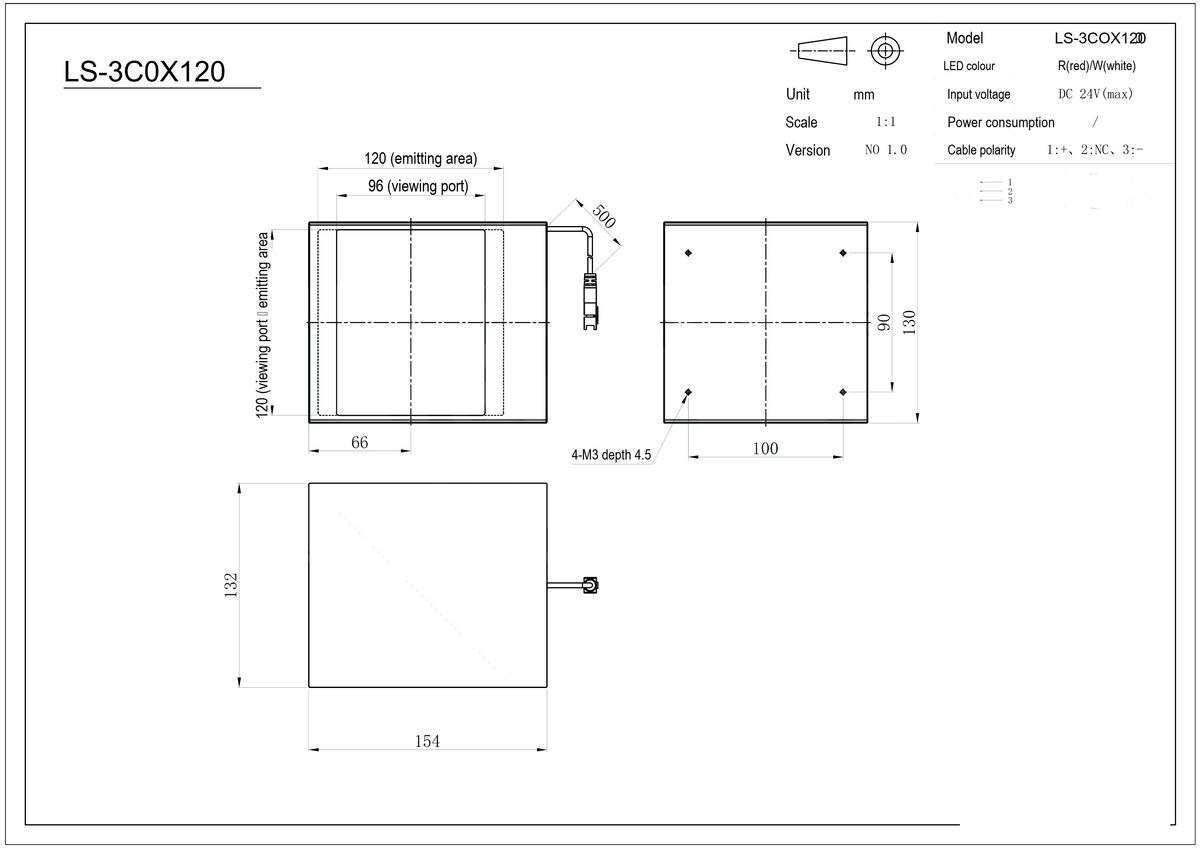

| Cable (mm) | 500 (drawings) |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
| Cable polarity | 1: +, 2: NC, 3: - |
Light
| Custom wavelengths | UV & IR light can be customized as required |
|---|---|
| Emitting surface (mm) | 120 x 120 |
| LED colour | R(red)/W(white) |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory-default luminance) |
Electrical
| Voltage | 24 V |
|---|---|
| Adapted controller | Strobe controller, analog controller, digital controller |
| Power, R (W) | 15.2 |
| Power, G/B/W (W) | 25.2 |
| Power | 34.6W/45.4W |
| Input voltage | DC 24V (max) |
Mechanical
| Mounting | 4-M3 depth 4.5 blind holes |
|---|---|
| Weight (g) | 232 |
| Dimension | L154xW132xH130(mm) |
| Mounting holes | 4-M3 depth 4.5 |
Other models in the Coaxial light (3COX) series
See all 8 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-3COX20 | 20 x 20 mm | $69.00 | 17 in stock | View |
| LS-3COX30 | 30 x 30 mm | $89.00 | 16 in stock | View |
| LS-3COX40 | 40 x 40 mm | $109.00 | 14 in stock | View |
| LS-3COX50 | 50 x 50 mm | $129.00 | 12 in stock | View |
| LS-3COX60 | 60 x 60 mm | $159.00 | 14 in stock | View |
| LS-3COX80 | 80 x 80 mm | $219.00 | 11 in stock | View |
| LS-3COX100 | 100 x 100 mm | $289.00 | 13 in stock | View |
