Representative photo of this series
Coaxial lights
40 x 40 mm Coaxial light, high light type (LS-3COG4040)
Model LS-3COG4040
- ColourRed, Blue, White
- Voltage24 V
- LED typeSMD

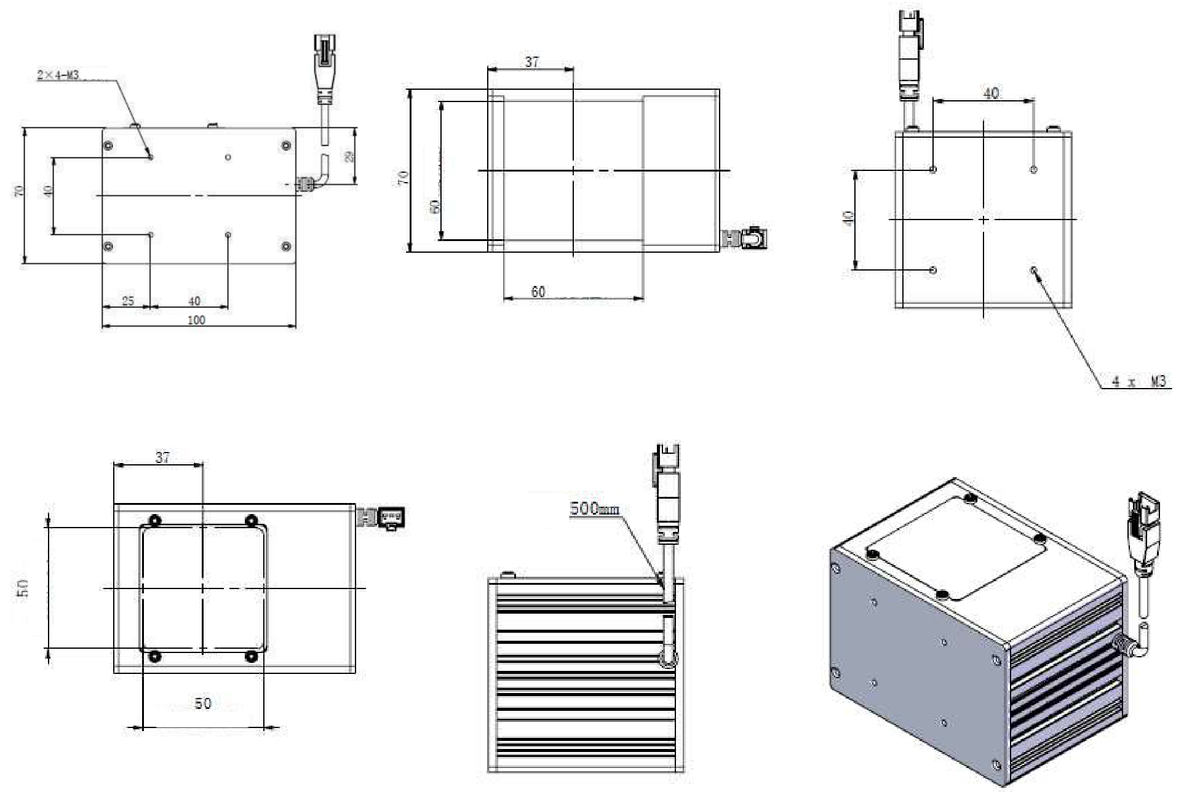

- Wire length500 mm (drawing)
$109.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.35 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Coaxial light consists of uniformly distributed LED light emitting units and special lenses. Support customized color, wavelength, luminescent surface size, etc.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-3COG4040 |
|---|---|
| Working life | white: 30000 hours, red: 30000 hours (the value varies according to the use environment) |
| Quality service | one year product warranty, technical support |
| Light type | High light type |
Light
| LED type | SMD |
|---|---|
| Luminous size (mm) | 40x40 |
| Wavelength red | 620-630 nm |
| Wavelength blue | 460-470 nm |
| Colour temperature white | 6000-7500 K |
Environment and compliance
| Operating environment (indoor) | temperature 0~40 °C, humidity 20~85% (non condensing) |
|---|
Electrical
| Power tolerance | actual product power within ±10% of the table is the normal range |
|---|---|
| Voltage (V) | 24 |
| Power red (W) | 13 |
| Power blue/white (W) | 14.5 |
Mechanical
| Wire length | 500 mm (drawing) |
|---|---|
| Boundary dimension L x W x H (mm) | 95x48x50 |
| Shipping weight | 0.35 kg |
Other models in the Coaxial light, high light type (COG series) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-3COG3030 | 30 x 30 mm | $89.00 | 12 in stock | View |
| LS-3COG6060 | 60 x 60 mm | $159.00 | 7 in stock | View |
