Line scan lights
Tunnel line scan light, 1016.3 x 245 x 82.5 mm (LS-2SDL1000)
Model LS-2SDL1000
- ColourRed, Blue, Green, White
- Emitting area1000 x 85 mm
- SizeL1016.3xW245xH82.5(mm)
- Voltage48V
- Power807W
$2,009.00
In stock - ships the same business day (4 available, order by 2 PM ET)
7.3 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Tunnel line scan light, high uniformity, high luminous. 2 times brightness updated, matched with line scan camera, used to PCB printing, metal surface inspection.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-2SDL1000 |
|---|---|
| Cooling | Fan cooling |
| Note | UV & IR light can be customized as required |
| Viewport (camera hole) | 980 x 10 mm |
Interfaces and I/O
| Cable polarity | 1: +, 2: -, 3: FAN+, 4: FAN- |
|---|---|

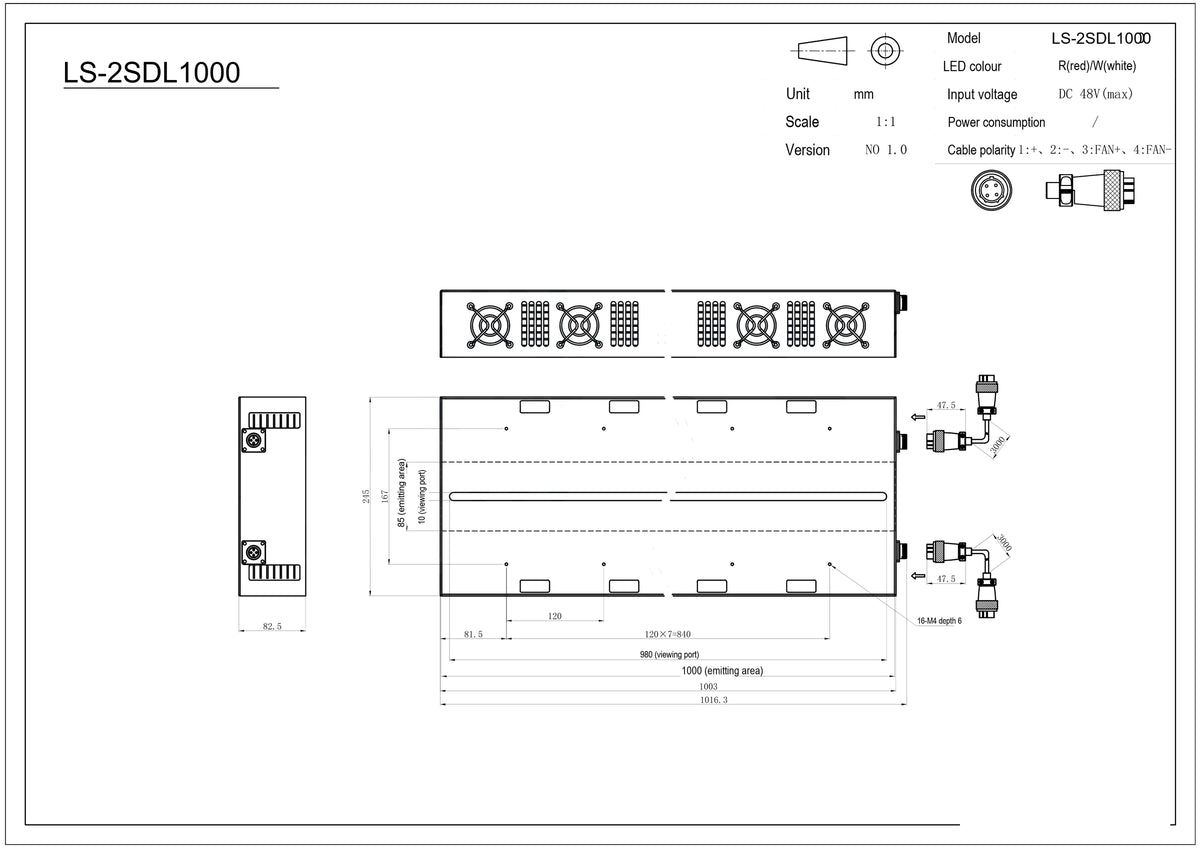

| Cable (mm) | 3000 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 1000 x 85 |
Electrical
| Voltage | 48V |
|---|---|
| Power | 807W |
| Input voltage | DC 48V (max) |
Mechanical
| Dimension | L1016.3xW245xH82.5(mm) |
|---|---|
| Mounting holes | 16-M4 depth 6 |
| Shipping weight | 7.30 kg |
Other models in the Tunnel line scan light (2SDL) series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-2SDL100 | Red, Blue, Green, White · 100 x 85 mm | $309.00 | 15 in stock | View |
| LS-2SDL200 | Red, Blue, Green, White · 200 x 85 mm | $499.00 | 16 in stock | View |
| LS-2SDL300 | Red, Blue, Green, White · 300 x 85 mm | $689.00 | 13 in stock | View |
| LS-2SDL400 | Red, Blue, Green, White · 400 x 85 mm | $879.00 | 17 in stock | View |
| LS-2SDL500 | Red, Blue, Green, White · 500 x 85 mm | $1,059.00 | 13 in stock | View |
| LS-2SDL800 | Red, Blue, Green, White · 800 x 85 mm | $1,629.00 | 10 in stock | View |
