Ring lights
35 x 22 mm Flash light source (LS-2SBS4728)
Model LS-2SBS4728
- ColourWhite
- Emitting area35 x 22 mm
- Power768 W
- TypeStrobe
$89.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.25 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Flash lights that raise brightness instantaneously; the maximum brightness of some lights reaches ten million lux. Suited to high-speed on-the-fly imaging, with lower heating and longer life when strobed.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-2SBS4728 |
|---|---|
| Service life | At 25 °C ambient: red works continuously for 60000 hours at 50% illumination, white 30000 hours at 50% illumination (decrement at 50%) |
| Optional accessories | Extension cable |
| Outer (mm) | 47 x 28 x 27 |
Interfaces and I/O
| Connector | XS10-3T |
|---|---|
| Cable length (mm) | 500 |
Light
| Uniformity FOV (LS-SCOS40-W) | 60 x 60 mm at LWD 50/100/150 mm |
|---|---|
| Illuminance (x10,000 lux) | 3425 |
| Emitting area (mm) | 35 x 22 |
| Colour temperature white | 6000-6500 K |
Environment and compliance
| Storage temperature | -20-60 °C |
|---|---|
| Operating temperature | 0-40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-BPS series (match the power of the light source) |
|---|---|
| Current | 32 |
| Power (W) | 768 |
| Recommended controller | LS-BPS24120C-4TD |
| Current (A) | 32 |
Mechanical
| Shipping weight | 0.25 kg |
|---|

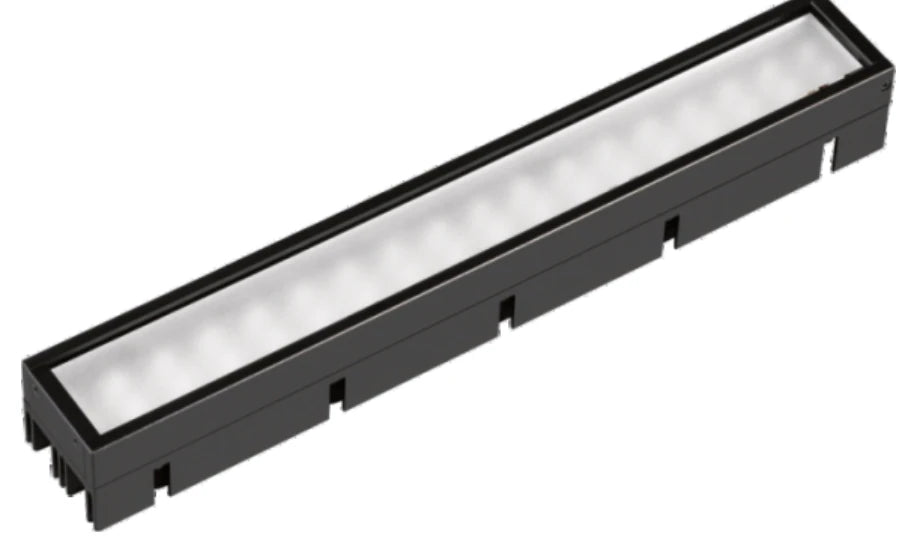

Photo shows a representative model of this series; see the specifications for this model.
