Ring lights

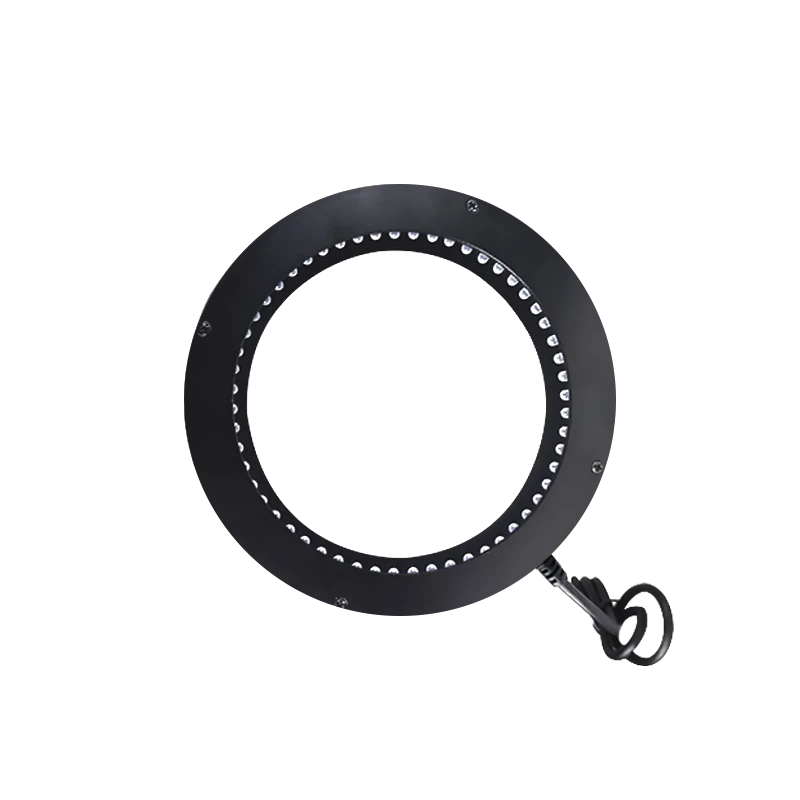

Ring light (LS-2RN10065A0)

Model LS-2RN10065A0

ColourRed, Blue, White
Voltage24 V
Angle0°
TypeStandard

$109.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.2 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Ring light for direct illumination; the light angle (between the light direction and the horizontal plane) is offered at 0, 30, 45, 60 and 90 degrees, in SMD or DIP LED versions.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-2RN10065A0
Category	0° Ring light
Terminal Plug	Flat head 3PIN 2 pin
Cooling	Natural air cooling
Electrical insulation capacity	DC500V Insulation resistance >20 megohms
Pressure Resistance Requirements	AC1000V; 10mA/5S
Flammability Rating	IEC60707
Value-added Services	One year free technical support
Angle (°)	0

Interfaces and I/O

Cable length	0.5m
Connector Definition	1 : positive (+) red; 2 : left blank; 3 : negative (-) black.
Mating cable (optional)	1. Light source extension cable; 2. Connector adapter cable

Light

Uniformity diffuser	×
LED type	DIP
Color	red/white/blue/green
Wavelength	red: 620-635nm; white: -; blue: 465-470nm; green: 525-530nm
Color temperature	red: -; white: 6000K-6500K; blue: -; green
Brightness Controller (optional)	1. Analog Controller; 2. Digital Controller

Environment and compliance

Operating Temperature and Humidity	Temperature : 0 to 50ºC, Humidity : 20% to 85%RH (non-condensing)
Lifespan	Under our specified conditions of use, 50,000 hours for red light and 30,000 hours for white light, the brightness is reduced to 50% of the factory value

Electrical

Power tolerance	actual product power within ±10% of the table is the normal range
Power DIP red (W)	1.2
Power DIP blue/white (W)	1.9
Voltage (V)	24

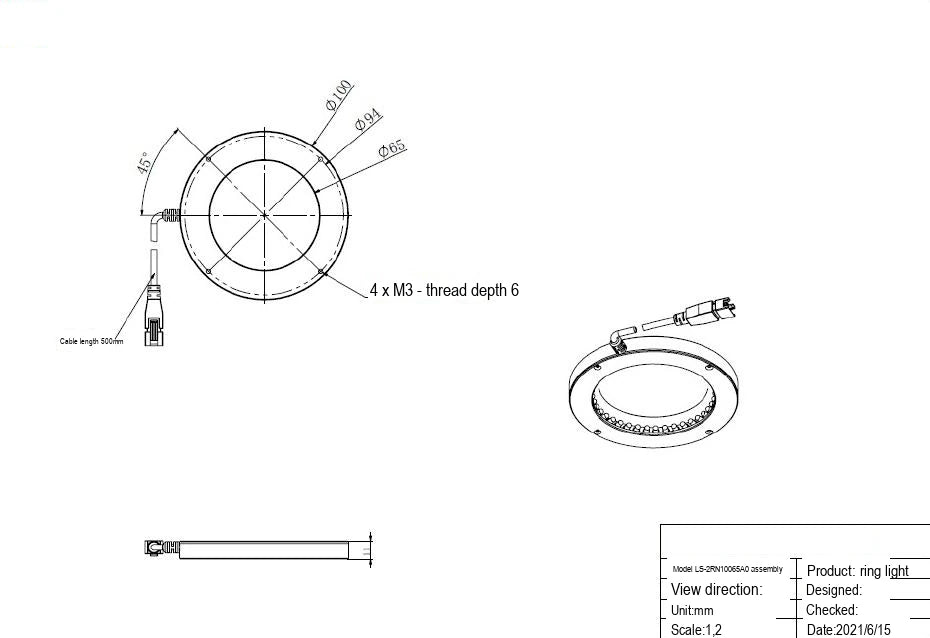

Mechanical

Shell material	Aluminum Alloy (Oxidative blackened surface)
Shell Hardness Parameters	Static load 230N±10N, time 5 minutes contact area: diameter 30MM Energy level: 5J elements: steel ball diameter 50MM, 500g ± 25g
Inner diameter (mm)	65
Outer diameter (mm)	100
Thickness (mm)	11
Shipping weight	0.20 kg

Downloads

Datasheet (PDF)LS-2RN10065A0 · 1.1 MB

Features

Light angles 0, 30, 45, 60 and 90 degrees
SMD and DIP LED versions
Inner and outer diameter, height, wavelength/colour temperature, illumination angle, mounting and wire length customization
Three-colour RGB light source customization
Outside diameter: 60 mm. Inside diameter: 30 mm.Thickness:11mm.
Brightness level 255, connected to the controller can be adjusted.
Life span:50000 hours for red light and 30000 hours for white light.
Suitable for scenarios that require high-precision inspection, such as industrial quality inspection, robot tracking, etc.

Applications

PCB & plastic containers inspection
Electronic components inspection & OCR on integrated circuits
Microscope illumination, general appearance inspection
LCD correction, font label detection
Ceramic surface profile detection
Fastener nut cross groove detection
