Representative photo of this series
Line scan lights
Small tunnel line scan light, 512 x 145 x 75 mm (LS-2MDL500)
Model LS-2MDL500
- ColourRed, Blue, Green, White
- Emitting area500 x 100 mm
- SizeL512xW145xH75(mm)
- Voltage24V
- Power108W
$1,059.00
In stock - ships the same business day (2 available, order by 2 PM ET)
2.65 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Compact size, light weight, illuminance up to 200,000 LX. Uses high-efficiency LED, which emits evenly diffused light onto the arch shape. Can eliminate shadows caused by workpiece unevenness, helping improve overall imaging uniformity.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-2MDL500 |
|---|---|
| Cooling | Natural cooling |
| Note | UV & IR light can be customized as required. |
| Viewport (camera hole) | 490 x 10 mm |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 500 x 100 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 108W |
| Input voltage | DC 24V (max) |

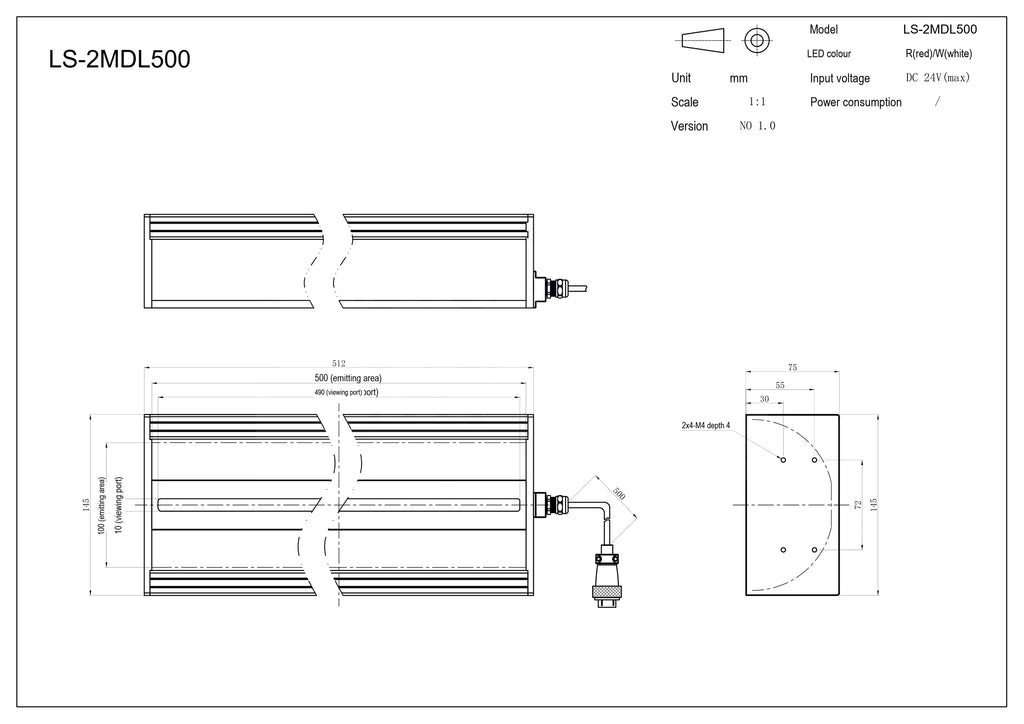

Mechanical
| Dimension | L512xW145xH75(mm) |
|---|---|
| Mounting holes | 2×4-M4 depth 4 |
| Shipping weight | 2.65 kg |
Other models in the Small tunnel line scan light (2MDL) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-2MDL100 | Red, Blue, Green, White · 100 x 100 mm | $299.00 | 12 in stock | View |
| LS-2MDL200 | Red, Blue, Green, White · 200 x 100 mm | $489.00 | 16 in stock | View |
| LS-2MDL300 | Red, Blue, Green, White · 300 x 100 mm | $679.00 | 11 in stock | View |
| LS-2MDL400 | Red, Blue, Green, White · 400 x 100 mm | $869.00 | 10 in stock | View |
| LS-2MDL600 | Red, Blue, Green, White · 600 x 100 mm | $1,249.00 | 15 in stock | View |
| LS-2MDL700 | Red, Blue, Green, White · 700 x 100 mm | $1,429.00 | 17 in stock | View |
| LS-2MDL800 | Red, Blue, Green, White · 800 x 100 mm | $1,619.00 | 10 in stock | View |
| LS-2MDL900 | Red, Blue, Green, White · 900 x 100 mm | $1,809.00 | 16 in stock | View |
| LS-2MDL1000 | Red, Blue, Green, White · 1000 x 100 mm | $1,999.00 | 11 in stock | View |
