Line scan lights
Multi-angle line light, MAS series, power 224 W (LS-2MAS236-W)
Model LS-2MAS236-W
- ColourWhite
- Power224 W
- Optional accessoriesExtension cable
- Cable2 x 500 mm
$579.00
In stock - ships the same business day (4 available, order by 2 PM ET)
3.7 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Special optical design with high brightness and anti-reflection; concentrated, highly uniform light. The brightness and number of line lights can be adjusted separately to actual needs.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-2MAS236-W |
|---|---|
| Service life | At 25 °C ambient: red works continuously for 60000 hours at 50% illumination, white 30000 hours at 50% illumination (decrement at 50%) |
| Optional accessories | Extension cable |
| Version | 2MAS |
| Viewport (mm) | 236 |
Interfaces and I/O
| Cable | 2 x 500 mm |
|---|
Light
| Colour temperature white | 6000-10000 K |
|---|
Environment and compliance
| Storage temperature | -20-60 °C |
|---|---|
| Operating temperature | 0-40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-CPL48320C-1T, LS-HAPS24480B-8T (the selected controller must match the light power) |
|---|---|
| Power (W) | 224 |
| Recommended controller | LS-HAPS24480B-8T |

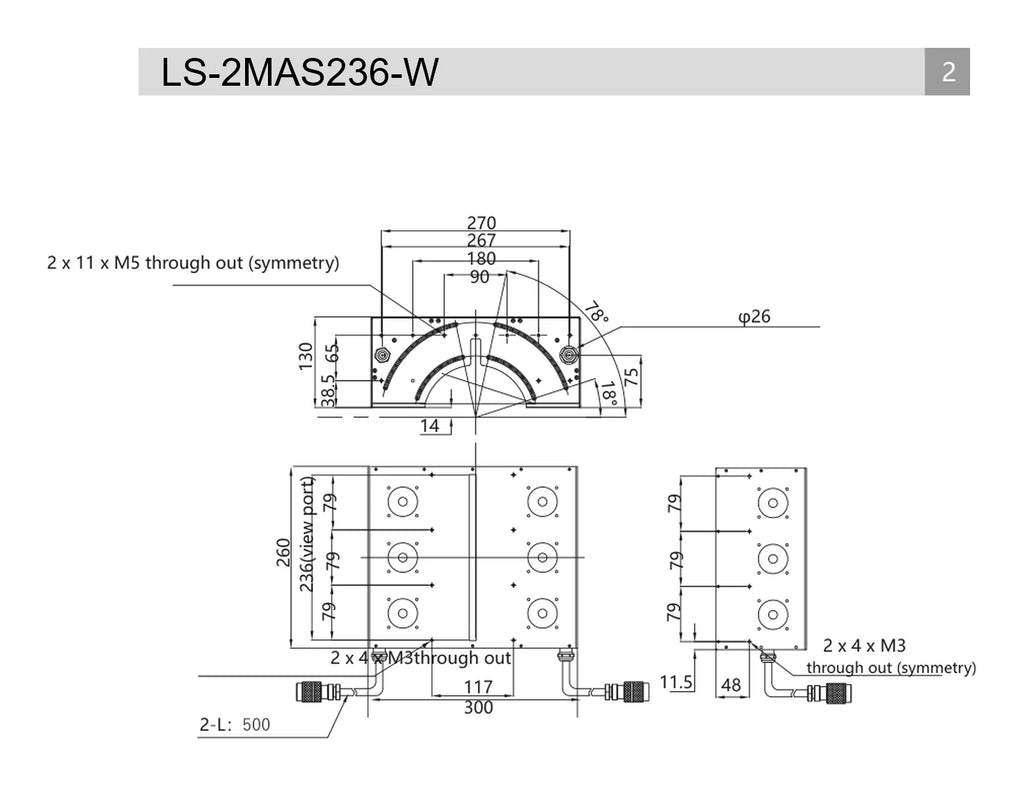

Mechanical
| Outer dimensions (mm) | 260 long, 270 wide (front view) / 300 (plan view), 130 high |
|---|---|
| Mounting | 2 x 11 x M5 through (symmetric); 2 x 4 x M3 through |
| Shipping weight | 3.70 kg |
