Line scan lights
164 mm High uniformity line scan light, fan cooled (LS-2LINS180)
Model LS-2LINS180
- ColourRed, Green, Blue, White
- SizeL180xW53xH121.5(mm)
- Voltage24 V / 48 V DC (by length)
- Power72 W
$399.00
In stock - ships the same business day (4 available, order by 2 PM ET)
1.35 kg shipping weight
Volume pricing, Net 30 or a formal quote?
The high uniformity line light is improved on the basis of the high power line light. High-power chip LEDs are adopted and high-uniform diffuser is built in, which effectively solves the problem of uneven illumination. It is applied to occasions of continuous inspection.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-2LINS180 |
|---|---|
| Cooling | Fan cooling |

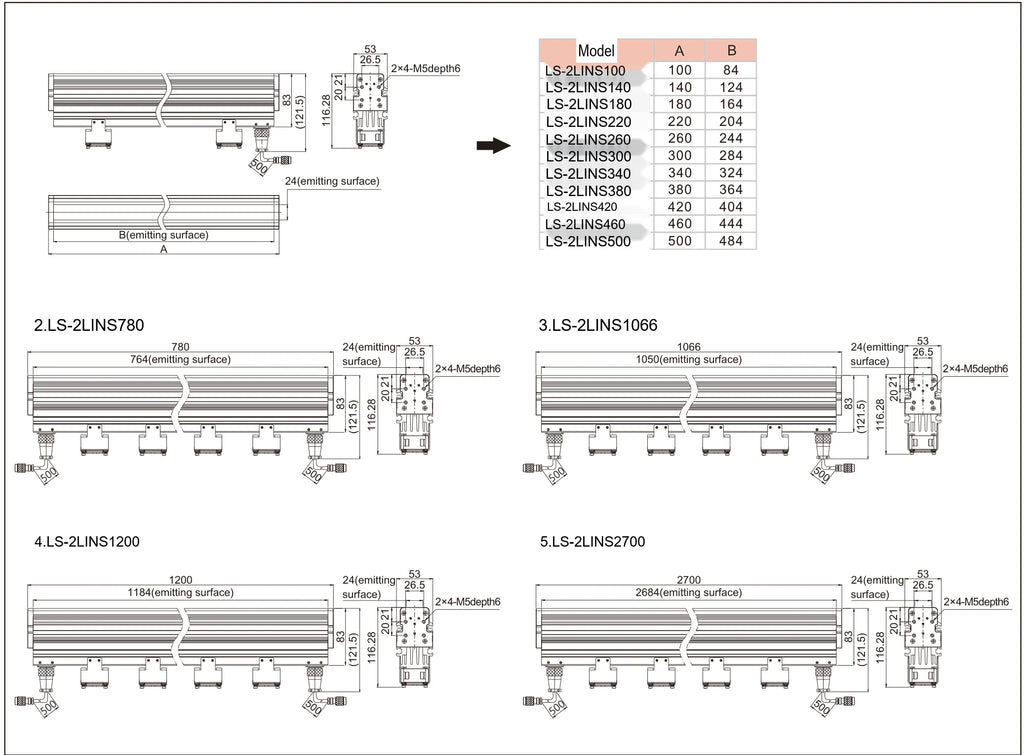

| Cross-section (mm) | 53 W x 83 H body; (121.5) H incl. fan; 116.28 side view |
| UV / IR | UV & IR light can be customized as required |
| FOV | 1-2500 mm |
| Note | UV & IR light can be customized as required. |
Optics
| Recommended working distance | 10-400 mm |
|---|
Interfaces and I/O
| Cable | 500 mm |
|---|---|
| Extension cable options | PVC extension cable (flexible, bend and heat resistant, for use inside equipment); high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
Light
| Peak wavelength / colour temperature | Red 620-630 nm, Green 525-530 nm, Blue 465-470 nm, White 6600 K (colour temperature) |
|---|---|
| Emitting width (mm) | 24 |
| Reference illuminance (LS-2LINS300-W) | 580,000 lux at WD 50 mm, direct emitting illumination, DC 24 V, fan cooling |
| Emitting length range (mm) | 84-2684 |
| Emitting length (mm) | 164 |
Environment and compliance
| Operating environment | Temperature 0-50 °C, humidity 20-85% (non-condensing) |
|---|---|
| Lifespan | 50000 h (to 50% of factory-default luminance) |
Electrical
| Adapted controller | High power constant voltage controller LS-2APC; high power constant current controller LS-DPA |
|---|---|
| Voltage | 24 V / 48 V DC (by length) |
| Voltage (V) | 24 |
| Power (W) | 72 |
| Power | 72W |
Mechanical
| Mounting | 2x4-M5 depth 6; installation plate with M5 screws and nuts |
|---|---|
| Installation | 1) end face locked to the device through the dead plate by M5 screws; 2) on the flank, M5 screws go through the dead plate into M5 nuts in the screw groove |
| Overall length (mm) | 180 |
| Weight (g) | 1022 |
| Dimension | L180xW53xH121.5(mm) |
Other models in the High uniformity line scan light, fan cooled (2LINS) series
See all 21 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-2LINS100 | 84 mm | $249.00 | 12 in stock | View |
| LS-2LINS140 | 124 mm | $319.00 | 16 in stock | View |
| LS-2LINS220 | 204 mm | $469.00 | 12 in stock | View |
| LS-2LINS260 | 244 mm | $549.00 | 13 in stock | View |
| LS-2LINS300 | 284 mm | $629.00 | 14 in stock | View |
| LS-2LINS340 | 324 mm | $699.00 | 12 in stock | View |
| LS-2LINS380 | 364 mm | $779.00 | 11 in stock | View |
| LS-2LINS420 | 404 mm | $849.00 | 13 in stock | View |
| LS-2LINS460 | 444 mm | $929.00 | 11 in stock | View |
| LS-2LINS500 | 484 mm | $999.00 | 15 in stock | View |
| LS-2LINS780 | 764 mm | $1,529.00 | 18 in stock | View |
| LS-2LINS900 | Red, Blue, Green, White · L900xW53xH121.5(mm) | $1,789.00 | 15 in stock | View |
| LS-2LINS1066 | 1050 mm | $2,069.00 | 11 in stock | View |
| LS-2LINS1200 | 1184 mm | $2,329.00 | 15 in stock | View |
| LS-2LINS1300 | Red, Blue, Green, White · L1300xW53xH121.5mm) | $2,549.00 | 15 in stock | View |
| LS-2LINS1500 | Red, Blue, Green, White · L1500xW53xH121.5mm) | $2,919.00 | 15 in stock | View |
| LS-2LINS1600 | Red, Blue, Green, White · L1600xW53xH121.5mm) | $3,109.00 | 12 in stock | View |
| LS-2LINS1720 | Red, Blue, Green, White · L1720xW53xH121.5mm) | $3,339.00 | 13 in stock | View |
| LS-2LINS1916 | Red, Blue, Green, White · L1916xW53xH121.5mm) | $3,709.00 | 13 in stock | View |
| LS-2LINS2700 | 2684 mm | $5,159.00 | 15 in stock | View |
