30 x 30 mm High luminance back light (2FT/3FT) (LS-2FT3030)
  • 30 x 30 mm High luminance back light (2FT/3FT) (LS-2FT3030)

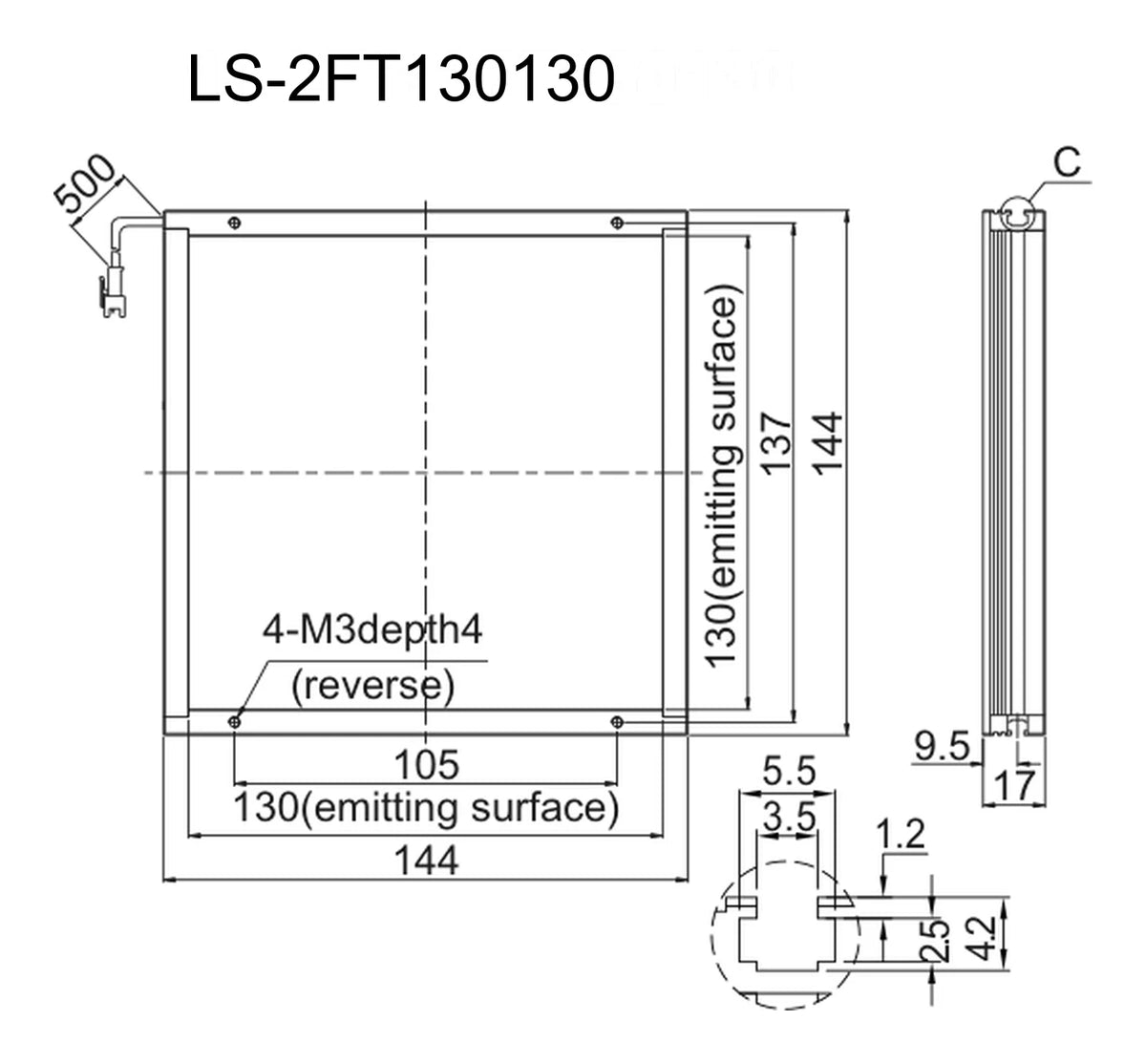

  • LS-2FT130130 dimensions (mm)

Representative photo of this series

Backlights

130 x 130 mm High luminance back light (LS-2FT130130)

Model LS-2FT130130

  • ColourRed, Green, Blue, White
  • Emitting area30mm x 30mm
  • Voltage24 V
  • TypeStandard
$139.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.65 kg shipping weight

Color

Volume pricing, Net 30 or a formal quote?

Compact back light using imported ultrathin surface-mount LEDs for high luminance and uniformity, in a precision-moulded shell that keeps batches consistent, with multiple installation methods. 2FT luminous surfaces range from 30x30 to 180x180 mm, 3FT from 190x190 to 500x500 mm; square and rectangular sizes can be customized.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-2FT130130
Customizableviewport, length and width, multi-area control, colour and colour temperature, cable length, installation method
OptionPolarizing film
FOV1~600mm

Optics

Recommended working distance1~100mm

Interfaces and I/O

Cable (mm)500 (drawings)
Extension cable optionsPVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines)

Light

Min. emitting area30mm x 30mm
Max. emitting area620mm x 427mm
Colours (overview)red / green / blue / white
Colour temperature of white6600K
Custom wavelengthsUV & IR light can be customized as required
Emitting surface (mm)130 x 130

Environment and compliance

Operating temperature0-50 °C
Operating humidity20-85% (non-condensing)
Lifespan50000 h (to 50% of factory-default luminance)

Electrical

Voltage24 V
Adapted controllerAnalog controller, digital controller, high power controller
Power, R (W)10.1
Power, G/B/W (W)16.8

Mechanical

Weight (g)394

Other models in the High luminance back light (2FT/3FT) series

See all 40 models
ModelSize / key dataPriceAvailabilityLink
LS-2FT11060 110 x 60 mm $99.00 19 in stock View
LS-2FT13050 130 x 50 mm $99.00 16 in stock View
LS-2FT9090 90 x 90 mm $109.00 14 in stock View
LS-2FT100100 100 x 100 mm $109.00 13 in stock View
LS-2FT11075 110 x 75 mm $109.00 13 in stock View
LS-2FT15050 150 x 50 mm $109.00 12 in stock View
LS-3FT20641 206 x 41 mm $109.00 13 in stock View
LS-3FT20060 200 x 60 mm $119.00 14 in stock View
LS-3FT30641 306 x 41 mm $119.00 13 in stock View
LS-2FT120120 120 x 120 mm $129.00 13 in stock View
LS-2FT150100 150 x 100 mm $129.00 16 in stock View
LS-2FT17090 170 x 90 mm $129.00 9 in stock View
LS-2FT180100 180 x 100 mm $139.00 15 in stock View
LS-3FT24070 240 x 70 mm $139.00 15 in stock View
LS-3FT30060 300 x 60 mm $139.00 15 in stock View
LS-2FT140140 140 x 140 mm $149.00 17 in stock View
LS-2FT150150 150 x 150 mm $159.00 17 in stock View
LS-2FT160160 160 x 160 mm $169.00 15 in stock View
LS-2FT180140 180 x 140 mm $169.00 17 in stock View
LS-2FT180180 180 x 180 mm $189.00 16 in stock View
LS-3FT200150 200 x 150 mm $189.00 16 in stock View
LS-3FT60060 600 x 60 mm $209.00 16 in stock View
LS-3FT200200 200 x 200 mm $219.00 9 in stock View
LS-3FT500100 500 x 100 mm $259.00 14 in stock View
