Backlights

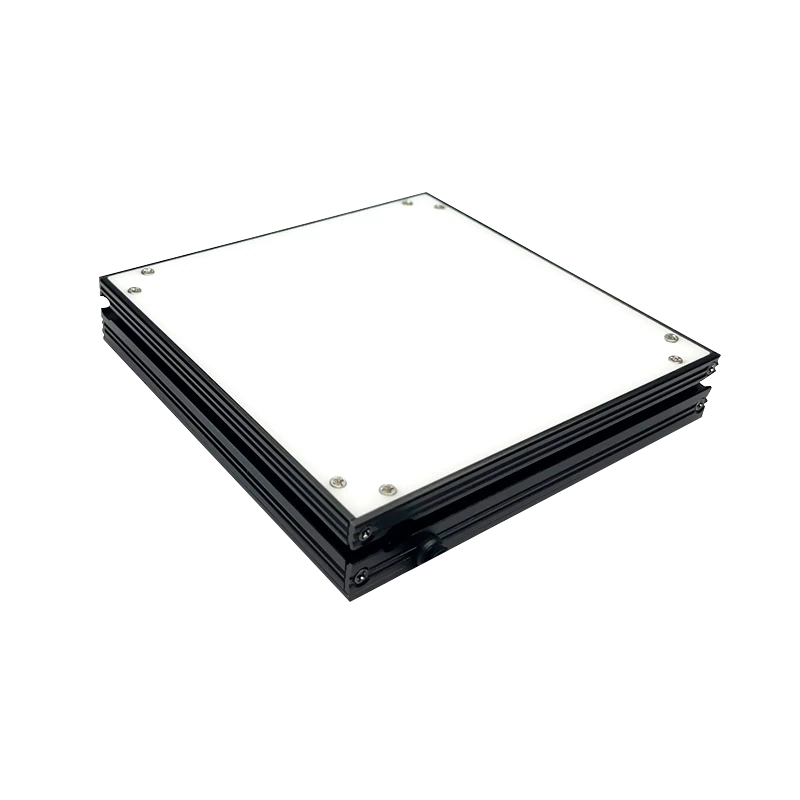

50 x 50 mm High power backlight, 64 x 64 x 20 mm (LS-2FL5050)
Model LS-2FL5050
- ColourRed, Blue, White
- Voltage24 V
- TypeHigh power / strobe
- Connector3-pin flat
$89.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.25 kg shipping weight
Volume pricing, Net 30 or a formal quote?
High power backlight consists of uniformly distributed LED light-emitting units. Support customized color, wavelength, luminous size, etc.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-2FL5050 |
|---|---|
| M3 nut slot | √ |
| Category | High power backlight |
| Terminal Plug | Flat head 3PIN2 pin |
| Cooling | Naturalair cooling |
| Electrical insulation capacity | DC500V Insulation resistance>20 megohms |
| Pressure Resistance Requirements | AC1000 V10mA/5S |
| Flammability Rating | IEC60707 |
| Value-added Services | One year free technical support |
| Long (mm) | 64 |
| Wide (mm) | 64 |
| High (mm) | 20 |
| Remarks | The luminous size can be multiplied individually: 10050, 12060, 14070, 16080, 200100, 240120 |
Interfaces and I/O
| Luminous size expansion | The luminous size can be multiplied ndividually: 10050,12060,14070, 16080,200100,240120. |
|---|---|
| Cable length | 0.5m |
| Connector Definition | 1:positive(+)red; 2:leave empty; 3:negative(-)black. |
| Mating cable (optional) | 1.Light source extension cable 2.Connector adapter cable |
Light
| LED type | SMD |
|---|---|
| Luminous size (mm) | 50x50 |
| Color | red/white/blue/green |
| Wavelength | red: 620-635nm; white: —; blue: 465-470nm; green: 525-530nm |
| Color temperature | red: —; white: 6000-6500K; blue: —; green: — |
| Brightness Controller (optional) | 1.Analog Controller 2.Digital Controller |
Environment and compliance
| Operating Temperature and Humidity | Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing) |
|---|---|
| Lifespan | Under our specified conditions of use,350000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value |
Electrical
| Power tolerance | actual product power within ±10% of the table is the normal range |
|---|---|
| Voltage (V) | 24 |
| Power red (W) | 2.9 |
| Power blue/white (W) | 2.9 |
Mechanical
| Installation method | M3 nut slot and bottom side installation |
|---|---|
| Bottom side installation | √ |
| Shell material | Aluminum Alloy (Oxidative blackened surface) |
| Shell Hardness Parameters | Static load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g |
| Shipping weight | 0.25 kg |
