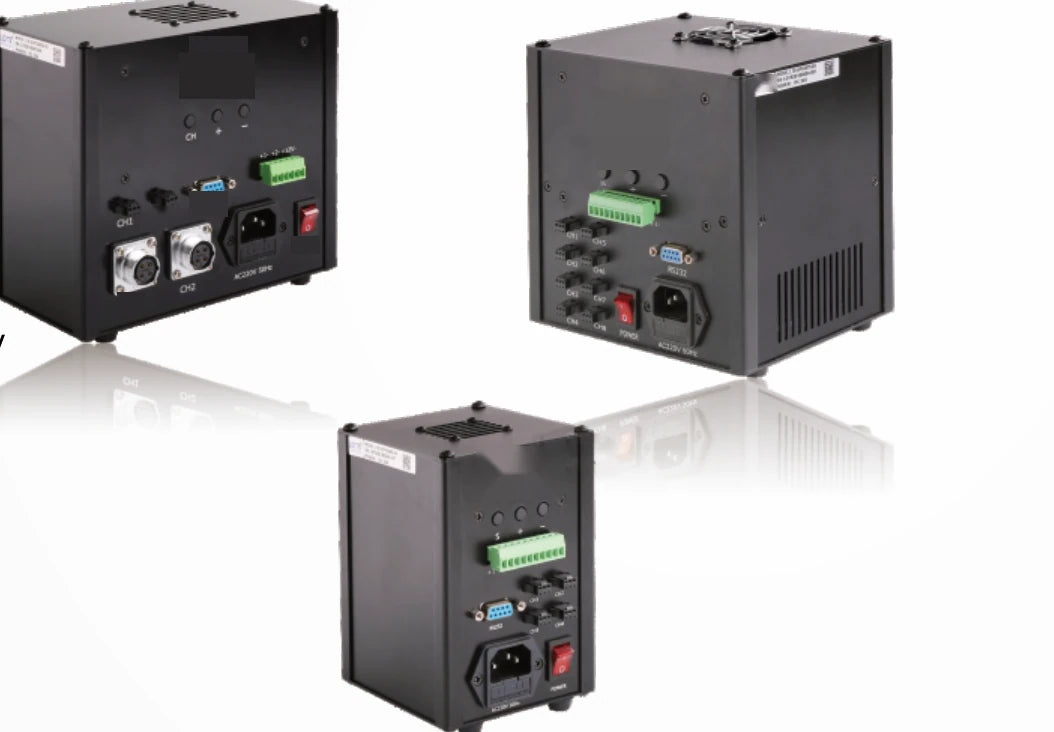

Representative photo of this series
Light controllers
Digital controller, 8 ch, 200 W (LS-2DPC24200-8S)
Model LS-2DPC24200-8S
- Channels8
- Output0-24V
- InputAC 100-240V
- Total output200W
- ControlRS232
$469.00
In stock - ships the same business day (2 available, order by 2 PM ET)
1.3 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Digital controller: each channel controlled independently with high precision, digital display and button control, RS232 communication with PC, trigger input, power-off saving and a 12V 500mA output.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-2DPC24200-8S |
|---|---|
| Normal on/normal closed mode switch | change H mode by CH button (H1 normal on, H0 normal closed) |
Interfaces and I/O
| Communication | RS232 |
|---|
Light
| Luminance control method | manual adjust by button, PC remote adjustment |
|---|---|
| Luminance control mode | PWM (duty ratio) |
| Luminance control level | 256 level |
Computing
| Storage function | luminance kept when power off |
|---|
Electrical
| Input frequency | 50/60Hz |
|---|---|
| External trigger voltage | 5-24V (high level) |
| Channels | 8 |
| Output voltage | 0-24V |
| One way max. output power | 60W |
| Total output power | 200W |
| External trigger support | Y |
| Input voltage | AC 100-240V |
| Baud rate | 19200bps |
Mechanical
| Shipping weight | 1.30 kg |
|---|
Other models in the Digital controller (2DPC) series
See all 9 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-2DPC2460-2S | 2 ch, 60 W | $219.00 | 4 in stock | View |
| LS-2DPC2460-4S | 4 ch, 60 W | $279.00 | 4 in stock | View |
| LS-2DPC2475-4S | 4 ch, 75 W | $289.00 | 4 in stock | View |
| LS-2DPC24200-4S | 4 ch, 200 W | $339.00 | 5 in stock | View |
| LS-2DPC2475-8S | 8 ch, 75 W | $409.00 | 4 in stock | View |
| LS-2DPC24120-8S | 8 ch, 120 W | $429.00 | 3 in stock | View |
| LS-2DPC24400-2S | 2 ch, 400 W | $499.00 | 4 in stock | View |
| LS-2DPC48600-2S | 2 ch, 600 W | $619.00 | 4 in stock | View |
