Representative photo of this series
Bar lights
867 x 32 mm Bar light (LS-2BS86738-RGBW)
Model LS-2BS86738-RGBW
- ColourRed, Green, Blue, White
- TypeMulti-colour RGB
- Voltage24 V
- Wavelength red620-630 nm
$489.00
In stock - ships the same business day (3 available, order by 2 PM ET)
1.3 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Bar light with a flexible size design; the irradiation angle can be adjusted to the inspection, colours can be chosen and combined, and an optional diffuse plate makes the light uniform.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-2BS86738-RGBW |
|---|---|
| Optional accessories | Extension cable, diffuse plate |
| Service life | Red: 60000 h continuous at 25 °C and 50% illumination until 50% decrement; white: 30000 h under the same conditions |
| Lamp bead rows | 6 |
| L (mm) | 867 |
| W (mm) | 38 |
| H (mm) | 27 |
Interfaces and I/O
| Cable length | 500 mm (drawings) |
|---|---|
| Light cable | 1 |
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Emitting width (mm) | 32 |
Environment and compliance
| Storage temperature | -20 to 60 °C |
|---|---|
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-DPS series, LS-APS series, LS-SPS series (the selected controller should match the power of the light source) |
|---|---|
| Power R (W) | 45.6 |
| Power G/B/W (W) | 68.4 |
| Recommended controller | LS-DPS, LS-APS, LS-SPS |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-DPS, LS-APS |

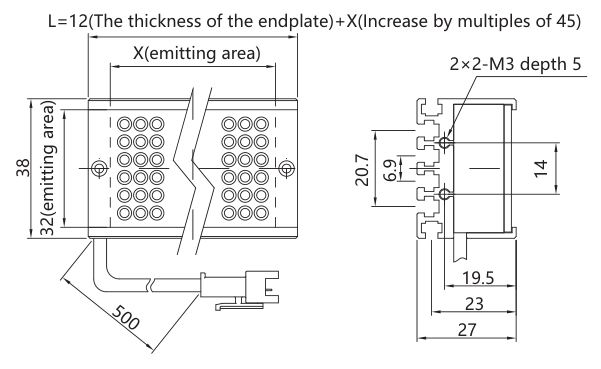

Mechanical
| Length rule | L = 12 (end plate thickness) + X (emitting length, increases in multiples of 45 mm) |
|---|---|
| Mounting | 2 x 2-M3, depth 5 (drawings) |
| Shipping weight | 1.30 kg |
