Representative photo of this series
Bar lights
540 x 50 mm Bar light (LS-2BRD54050)
Model LS-2BRD54050
- Voltage24V
- TypeDiffused
- LED typeSMD
- Uniform light plateyes
$319.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.5 kg shipping weight
Volume pricing, Net 30 or a formal quote?
LED bar light with a uniform light (diffuser) plate, luminous sizes from 60 x 20 to 480 x 30 mm; suppresses reflections on the object surface so damage is clearly imaged.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-2BRD54050 |
|---|---|
| Working life | white: 30000 hours, red: 30000 hours (the value varies according to the use environment) |
| Quality service | one year product warranty, technical support |
Light
| LED type | SMD |
|---|---|
| Luminous size (mm) | 540x50 |
| Uniformity diffuser | √ |
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 460-470 nm |
| Colour temperature white | 6000-7500 K |
Environment and compliance
| Operating environment (indoor) | temperature 0~40 °C, humidity 20~85% (non condensing) |
|---|
Electrical
| Power tolerance | actual product power within ±10% of the table is the normal range |
|---|---|
| Voltage (V) | 24V |
| Power(W) Red | 25 |
| Power(W) Blue/White/Green | 31.5 |

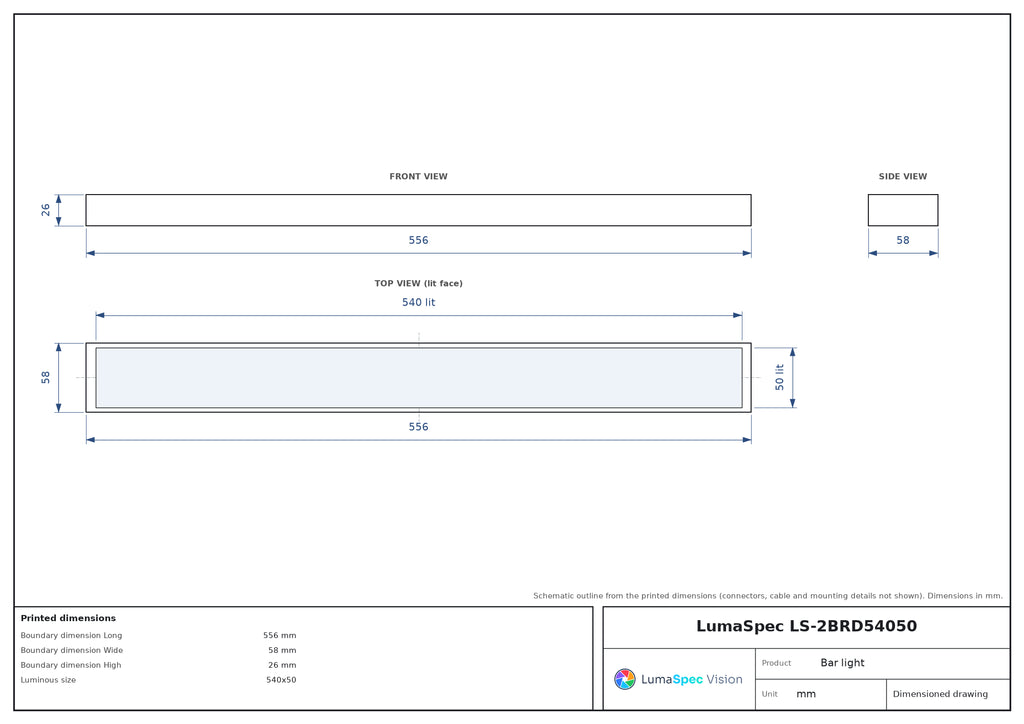

Mechanical
| Uniform light plate | yes |
|---|---|
| Boundary dimension(mm) Long | 556 |
| Boundary dimension(mm) Wide | 58 |
| Boundary dimension(mm) High | 26 |
| Shipping weight | 0.50 kg |
