100 x 100 mm Bottom-Lit Finned LED Backlight (LS-2BC-100X100)
Model LS-2BC-100X100
- ColourRed, Green, Blue, White
- Emitting area100x100 mm
- Size114x114x21 mm
- Voltage24 V
- Power11.5 W
$109.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.45 kg shipping weight
Volume pricing, Net 30 or a formal quote?
100 x 100 mm Bottom-Lit Finned LED Backlight. Bottom-lit LED backlight in the BC series family with a finned heat-dissipation profile and side M3 nut slots usable for installation; 21-24 mm thick.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-2BC-100X100 |
|---|
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 100x100 |
|---|---|
| Colours | Red, Green, Blue, White |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 6.9 |
| Power W/B/G (W) | 11.5 |
Mechanical
| Outer size L x W x H (mm) | 114x114x21 |
|---|---|
| Mounting | X-M3 depth 4 (installation) on back; M3 nut slots in side profile |
| Heat sink | Finned heat-dissipation profile |
| Shipping weight (estimated) | 0.45 kg |

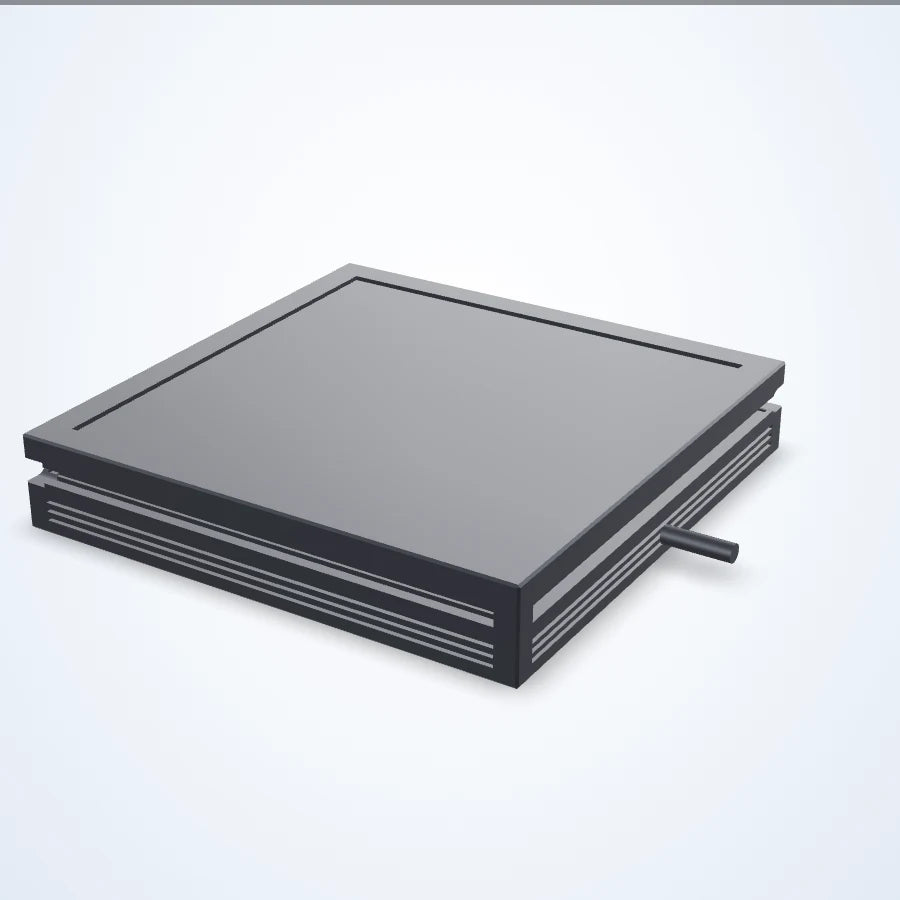

Photo shows a representative model of this series; see the specifications for this model.
Mounting and drawing data
Mounting: 4 x M3 holes, 4 mm deep, on the reverse at 75 mm spacing (the series drawing table lists 6). Drawing: C = 75, D = 107, thickness 21 mm.
