Area scan cameras

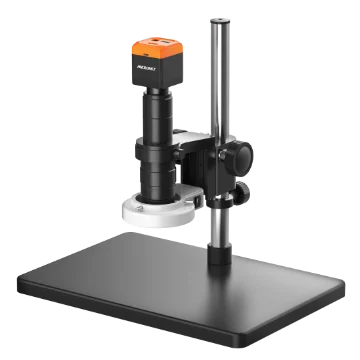

Hikrobot HIK-M200-10 Zoom Microscope System
Model HIK-M200-10Hikrobot
- Resolution1920 × 1080
- SensorCMOS, rolling shutter
- Speed60 fps
- Lens mountIntegrated optics
- Mono / colourColor
- Pixel size3.75 μm × 3.75 μm
$699.00
Ships in 2-3 weeks
4.3 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot HIK-M200-10 Zoom Microscope System. Continuous zoom optics for sharp, low-distortion imaging 2 MP HD image quality at up to 60 fps
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | HIK-M200-10 |
|---|---|
| Brand | Hikrobot |
| Eyepiece | 0.5 x |
| Objective | 0.6 x ~ 4.5 x |
Optics
| Optical magnification | 0.3 x ~ 2.25 x |
|---|---|
| Digital magnification | 20x to 148x (on a 21.5-inch monitor) |
| Field of view (range) | 3.2 × 1.8 mm ~ 24 × 13.5 mm |
| Working distance | 100±5 mm |
| Focus mount | Lift height 62 mm |
Sensor and imaging
| Sensor type | CMOS, rolling shutter |
|---|---|
| Pixel size | 3.75 μm × 3.75 μm |
| Sensor size | 1/2” |
| Resolution | 1920 × 1080 |
| Max. frame rate | 60 fps |
| Gain | 0 dB ~ 42 dB |
| Exposure time | 300 μs ~ 100 ms |
| Mono/color | Color |
| Exposure mode | Auto/manual |
| Reverse image | Supports horizontal and vertical reverse image output |
Interfaces and I/O
| Transmission interface | HDMI |
|---|---|
| Console interface | USB2.0 |
Light
| Color | White |
|---|---|
| Color temperature | 6000 ~ 7000 K |
| Brightness level | 0 ~ 100% |
Environment and compliance
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
|---|---|
| Humidity | 20% RH to 95% RH (no condensation) |
Electrical
| Power supply | 12 VDC, Requires a separate power supply |
|---|---|
| Power consumption | Camera: 1.9 W @ 12 VDC |
| Power | Light: 3.5 W @ 12 VDC |
Mechanical
| Bore dimension | Φ61 mm |
|---|---|

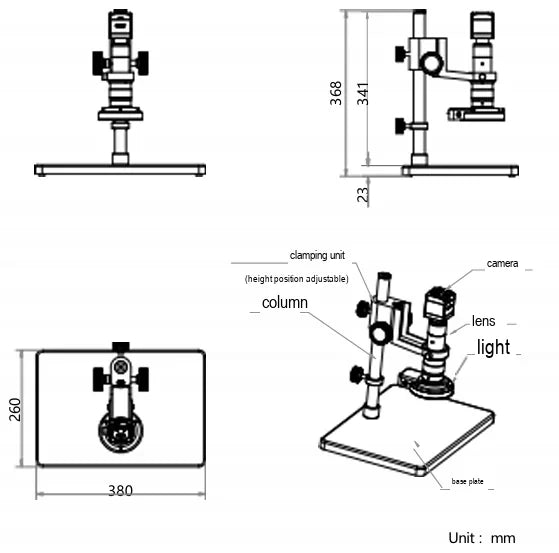

| Dimension | Camera: 50 mm × 50 mm × 55.4 mm; Lens: Φ58 mm × 166.3 mm; Light: Φ97 mm × 123.5 mm; Base: 380 mm × 260 mm × 23 mm; Post: Φ25 mm × 341 mm |
| Weight | Approx. 3000 g |
| Shipping weight (estimated) | 4.30 kg |
Other models in the Zoom Microscope System series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| MV-MZS200H-100 | 2.1 MP, HDMI, Mono | $699.00 | 3 in stock | View |
| MV-MZS300H-100 | 3.7 MP, HDMI, Mono | $699.00 | 5 in stock | View |
| MV-MZS400H-101 | 12.4 MP, HDMI, Mono | $699.00 | 3 in stock | View |
| HIK-M300-10 | 3.7 MP, Color | $699.00 | 4 in stock | View |
| HIK-M400-11 | 12.4 MP, Color | $699.00 | 4 in stock | View |
