M12 board lenses

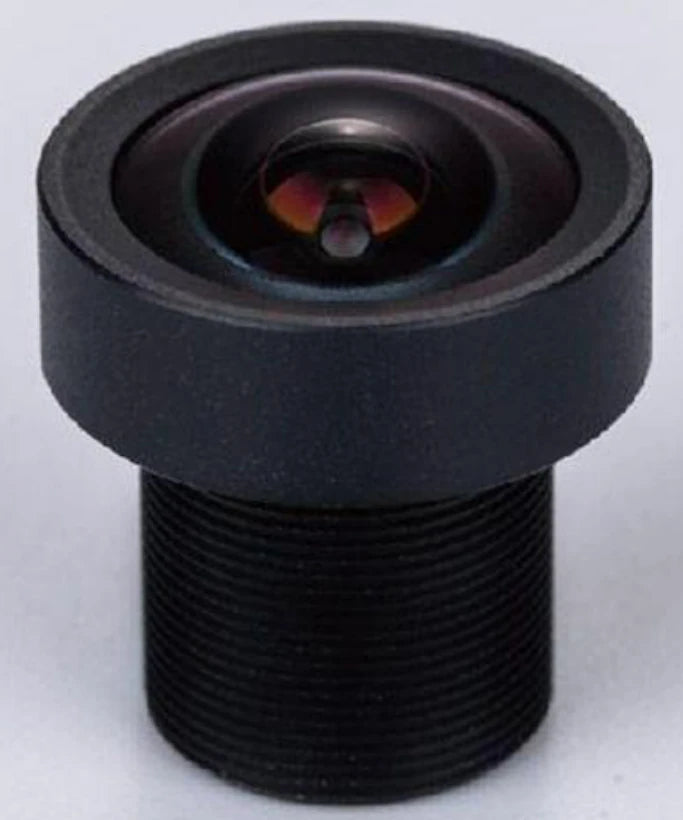

5MP S-mount low distortion board lens
- 6 models
- from $49.00
- Series LS-FS
The 5MP S-mount low distortion board lens is a range of 6 m12 board lenses from LumaSpec Vision, from $49.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 3.37 mm, 1/2", 6 mm, 1/1.8", 8 mm, 1/1.8", 12 mm, 1/1.8", 16 mm, 1/1.8", 25 mm, 1/1.8"
- Mount
- M12
- Resolution
- 5 MP
- Image circle
- Up to 8 mm, 8-11 mm
- Focal length
- Under 6 mm, 6-12 mm, 12-25 mm, 25-50 mm
- Sensor format
- 1/2", 1/1.8" - 1/1.56"
Features
- Ultra-low distortion, <0.1%, 5MP
- Compact design
- Excellent optical performance, high brightness at the edge
- Suitable for industrial inspection, barcode scanning, monitoring, video conference, sports camera, etc.
- EFL range from 3.37mm to 25mm
- M12xP0.5 Mount
Typical uses
- Industrial: blemish / stain - detect defects and blemishes on steel plate
- Electronic component: yes / no - check the number of tiny chips and poor imprint
- Electronic component: blemish / stain - detect camera defects
- Electronic equipment: yes / no - detect poor binding and lead breakage of motor wires
All 6 models in the 5MP S-mount low distortion board lens
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FS0305A | 3.37 mm, 1/2" | 1/2" | 3.37 | 86° x 70° | $49.00 | View |
| LS-FS0605A | 6 mm, 1/1.8" | 1/1.8" | 6 | 60.6° x 46.6° | $49.00 | View |
| LS-FS0805A | 8 mm, 1/1.8" | 1/1.8" | 8 | 47° x 35.6° | $49.00 | View |
| LS-FS1205A | 12 mm, 1/1.8" | 1/1.8" | 12 | 32.8° x 24.5° | $49.00 | View |
| LS-FS1605A | 16 mm, 1/1.8" | 1/1.8" | 16 | 24.4° x 18.4° | $49.00 | View |
| LS-FS2505A | 25 mm, 1/1.8" | 1/1.8" | 25 | 15.6° x 11.5° | $49.00 | View |
