Dome lights

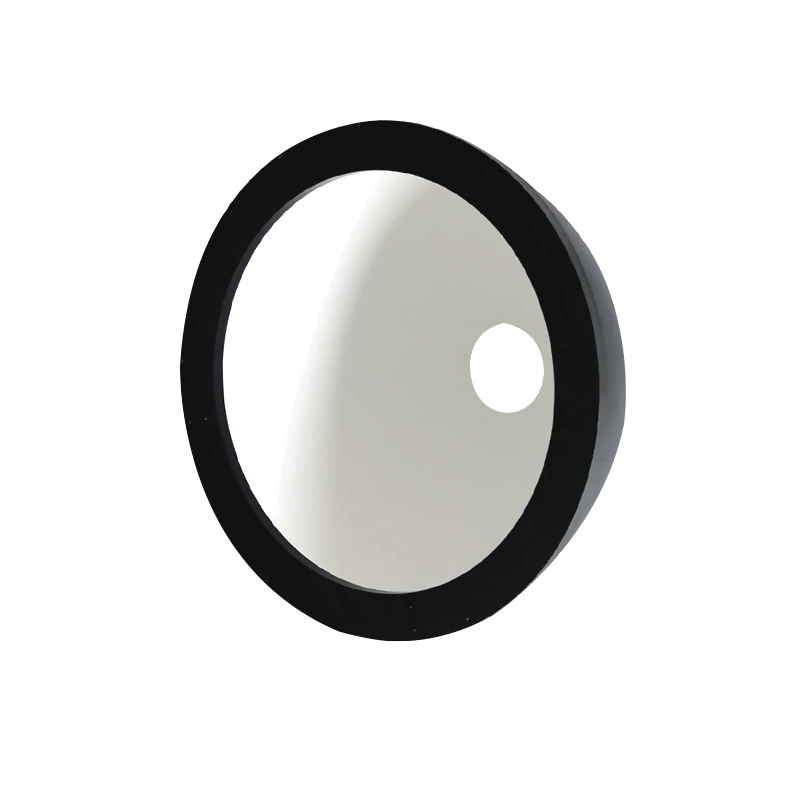

Dome light (DM series)
- 6 models
- from $99.00
- Series LS-DM
The Dome light (DM series) is a range of 6 dome lights from LumaSpec Vision, from $99.00. It comes in 2 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 12 mm, 60 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
- Connector
- 3-pin flat
Features
- Diffused light from the dome for reflective and uneven surfaces
- SMD LEDs
- Three-colour RGB light source, outer/inner diameter and height, wavelength/colour temperature, mounting and input wire length customization
- Light inlet port: 12mm. Light outlet port: 28mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:50000 hours for red light and 30000 hours for white light.
- Suitable for detecting reflective, uneven surfaces and arc surface detection, etc.
Typical uses
- Detecting reflective, uneven surfaces
- Surface, concave and convex surface, arc surface detection
- Packaging industry (beverage container top)
All 6 models in the Dome light (DM series)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-DM2812 | 30.2 | 12 | 28 | 44 | $99.00 | View |
| LS-DM6228 | 48 | 28 | 62 | 84 | $179.00 | View |
| LS-DM2.0-9230 | 63 | 30 | 92 | 135 | $309.00 | View |
| LS-DM13440 | 89 | 40 | 134 | 185 | $479.00 | View |
| LS-DM2.0-21650 | 126 | 50 | 216 | 266 | $839.00 | View |
| LS-DM30060 | 172 | 60 | 300 | 370 | $1,429.00 | View |
