Light controllers

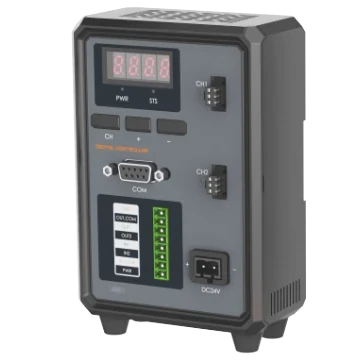

Digital light controllers
- 17 models
- from $109.00
- Series LS-DIGITAL-LIGHT
The Digital light controllers is a range of 17 light controllers from LumaSpec Vision, from $109.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Output
- Constant voltage 5 V, Constant voltage 24 V, Constant voltage 48 V, Constant current
- Channels
- 1 channel, 2 channels, 3 channels, 4 channels, 6 channels, 8 channels
- Control
- Analog, Digital
Features
- Adopts constant current to improve light source stability.
- Adopts buttons and display to have quick operations.
- Supports using serial port or network interface to set parameters and manage the device.
- Supports external trigger interface for different lighting modes.
- Supports overcurrent, overload, overtemperature, short circuit protection.
- PCIe x1 interface, compatible with PCIe x4/8/16 slots; saves space compared with conventional light controllers
- Light outputs support PWM pulse or analog control
- Powered from the host, compatible with mainstream industrial PCs
All 17 models in the Digital light controllers
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LE201-10W5-2D | 24 VDC terminal block | DB9F serial port | 24 VDC | 2-channel | $109.00 | View |
| LS-LE201-30W5-2FD | 24 VDC terminal block | DB9F serial port | 24 VDC | 2-channel | $109.00 | View |
| LS-LE200-42W24-4-PCIE | ATX power connector | 12 VDC | 4 | $139.00 | View | |
| LS-LEVD-150-1B-PY | AC socket | Serial port | 170 ~ 240 VAC, 50/60 Hz | 1 | $169.00 | View |
| LS-LE201-200W48-1TD | C13 220 VAC interface | RJ45 network interface, DB9F serial port | 100 ~ 240 VAC, 50/60 Hz | 1 (CH1 and CH2 provide dual connectors) | $169.00 | View |
| LS-LE200-48W24-2D | 5.08 mm × 2 terminal block | DB9F serial port | 24 VDC | 2-channel | $209.00 | View |
| LS-LE200-90W24-6D | 5.08 mm × 2 terminal block | DB9F serial port | 24 VDC | 6-channel | $229.00 | View |
| LS-LEVD-60-4-SY | AC socket | Serial port | 100 ~ 240 VAC, 50/60 Hz | 4 | $269.00 | View |
| LS-LE200-60W24-4TD | C13 220 VAC interface | RJ45 network interface, DB9F serial port | 100 ~ 240 VAC, 50/60 Hz | 4 | $269.00 | View |
| LS-LE201-200W48-2TD | C13 220 VAC interface | RJ45 network interface, DB9F serial port | 100 VAC to 240 VAC, 50 Hz/60 Hz | 2-channel | $279.00 | View |
| LS-LE200-120W24-4TD | C13 220 VAC interface | RJ45 network interface, DB9F serial port | 100 VAC to 240 VAC, 50 Hz/60 Hz | 4-channel | $309.00 | View |
| LS-LEVD-200-6-SY | AC socket | Serial port | 100 ~ 240 VAC, 50/60 Hz | 6 | $329.00 | View |
| LS-LEVD-120-6-SY | AC socket | Serial port | 100 ~ 240 VAC, 50/60 Hz | 6 | $329.00 | View |
| LS-LE200-200W24-4TD | C13 220 VAC interface | RJ45 network interface, DB9F serial port | 100 VAC to 240 VAC, 50 Hz/60 Hz | 4-channel | $339.00 | View |
| LS-LEVD-200-8-SY | AC socket | Serial port | 100 ~ 240 VAC, 50/60 Hz | 8 | $389.00 | View |
| LS-LE201-500W48-2TD | C13 220 VAC interface | RJ45 network interface, DB9F serial port | 100 VAC to 240 VAC, 50 Hz/60 Hz | 2-channel | $399.00 | View |
| LS-LE201-750W48-2TD | C13 220 VAC interface | RJ45 network interface, DB9F serial port | 100 VAC to 240 VAC, 50 Hz/60 Hz | 2-channel | $509.00 | View |
